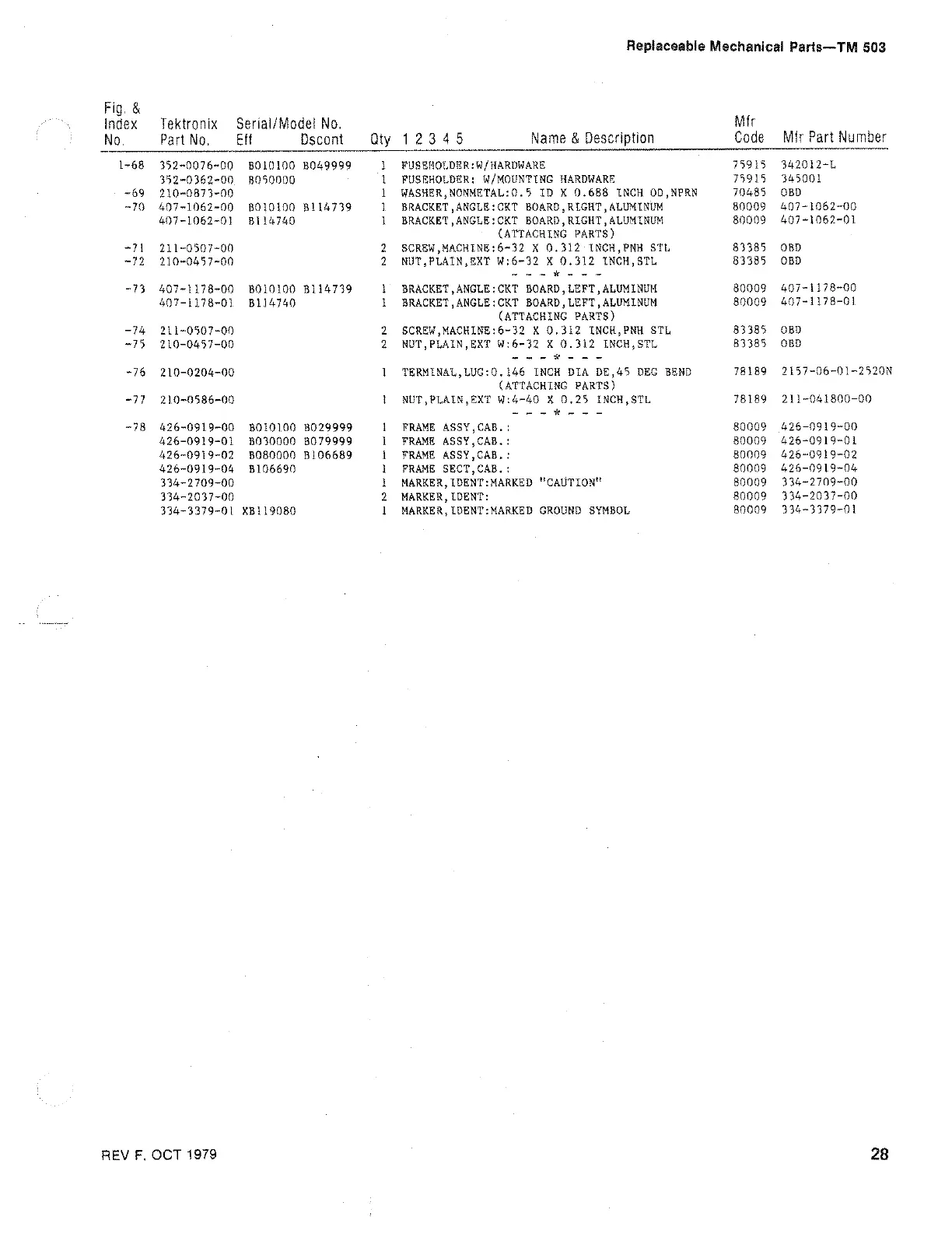

Replaceable Mechanical Parts—TM 503
Fig. &
index Tektronix Seriai/Model No. Mtr
No,
PartNo,
=
Eff
Dscont
Qty
12345
Name
&
Description
Code
Mfr
Part
Number
1-68 352-0076-00 8010100 8049999 1 FUSEHOLDER: W/HARDWARE 75915 342012-L
352-0362-00, 8050000 1 FUSEHOLDER: W/MOUNTING HARDWARE 75915 345001
~69 210-0873-00 1 WASHER, NONMETAL:0.5 ID X 0.688 INCH OD,NPRN 70485 OBD
~70 407-1062-00 BO10L00 BL14739 1 BRACKET, ANGLE:CKT BOARD, RIGHT, ALUMINUM 80009 407-1062-00
407-L062-01 BLI1A740 1 BRACKET, ANGLE:CKT BOARD, RIGHT, ALUMINUM 80009 407-1062-01
(ATTACHING PARTS)
“71 211+0507=00 2 SCREW,MACHINE:6-32 X 0.312: INCH,PNH STL 83385 OBD
~72 210-0457-00 2 NUT,PLAIN,EXT W:6-32 X 0.312 INCH, STL 83385 OBD
wae kee
-73 407-1178-00 BO10100 B114739 L BRACKET, ANGLE: CKT BOARD, LEFT, ALUMINUM 80009 407-1178~-00
407-1178-01 Bil4740 1 BRACKET, ANGLE; CKT BOARD, LEFT, ALUMINUM 80009 407~1178-01
(ATTACHING PARTS)
-74 211-0307-00 2 SCREW ,MACHINE:6-32 X 0,312 INCH,PNH STL 83385 OBD
~75 210-0457-00 2 NUT,PLAIN, EXT W:6-32 X 0.312 INCH, STL 83385 OBD
eae eee
-76 210-0204-00 1 TERMINAL,LUG:0.146 INCH DIA DE,45 DEG BEND 78189 2157-06~01-2520N
(ATTACHING PARTS)
-77 210-0586-00 1 NUT, PLAIN, EXT W:4-40 X 0.25 INCH,STL 78189 211-041800-00
a
~78 426-0919-00 8010100 B029999 1 FRAME ASSY,CAB.: 80009 426-0919-00
426-0919-01 8030000 B079999 1 FRAME ASSY,CAB.: 80009 426-0919-01
426-0919-02 B080000 B106689 1 FRAME ASSY,CAB,: 80009 426-0919-02
426-0919-04 8106690 1 FRAME SECT,CAB.: 80009 426-0919-04
334-2709-00 1 MARKER, IDENT:MARKED "CAUTION" 80009 334~2709-00
334-2037-00 2 MARKER, LDENT: 80009 334-2037-00
334-3379-01 XBL19080 ] MARKER, [DENT:MARKED GROUND SYMBOL 80009 334=3379-01
REV
F,
OCT
1979
28
