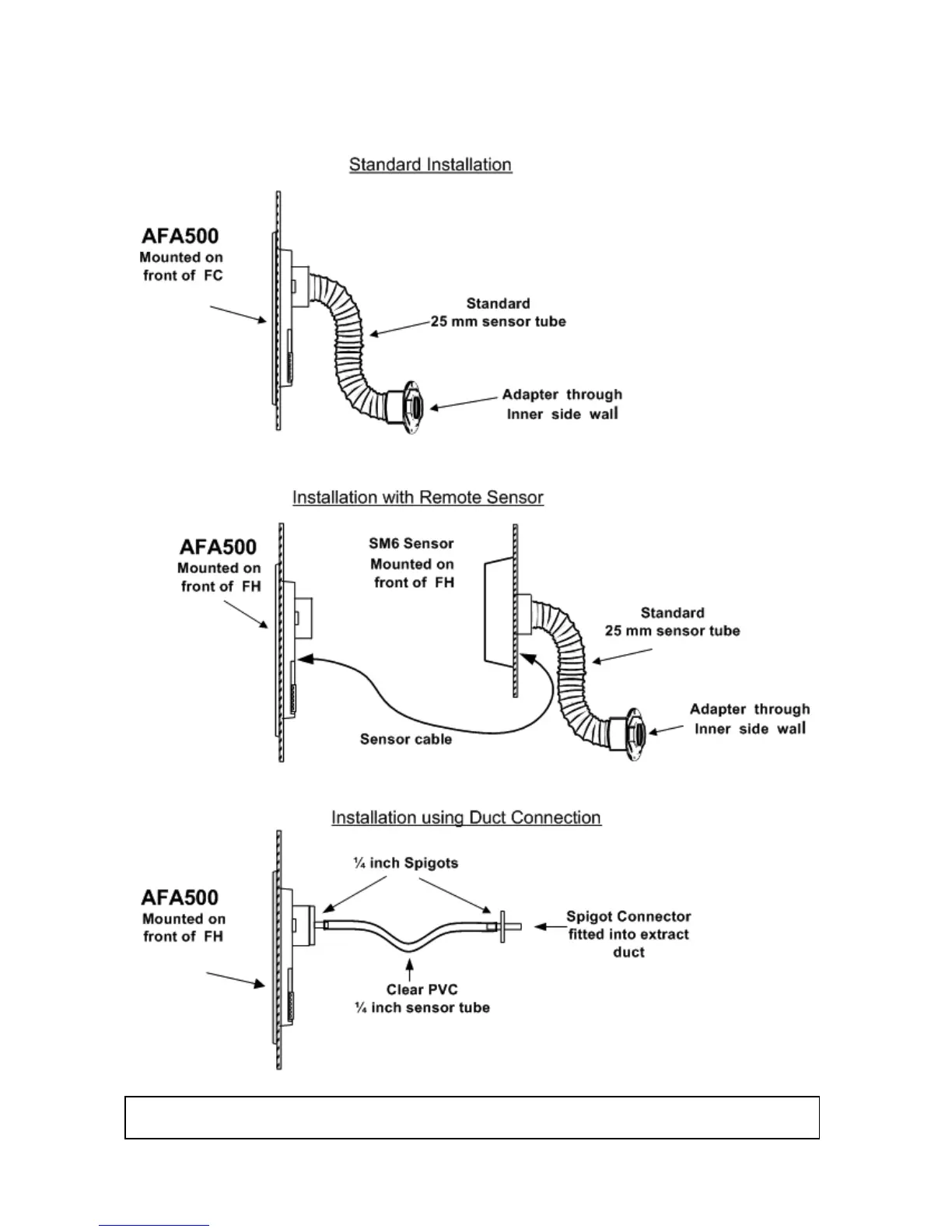

TEL AFA 500 - Installation Methods; Standard Installation; Installation with Remote Sensor; Installation using Duct Connection

11
When using the Duct Connection method the ¼ inch connection tube acts as a flow restrictor ( due to the higher
pressure in the duct ). Use a 6ft tube for pressures below 0.4 ins Wg and a 12ft tube for higher pressures
