To configure this feature, connect the Aux port to an asynchronous terminal or a PC with terminal emulation soft-
ware.
Note
The configuration for the terminal must be:
- Speed: 115200 bps.
- Eight data bits.
- One stop bit.
- No parity bit.
- No type of flow control.
To establish a connection with the configuration port, use the RJ45 connector cable (included with the router) along
with the female RJ45 female-DB9 adapter provided.

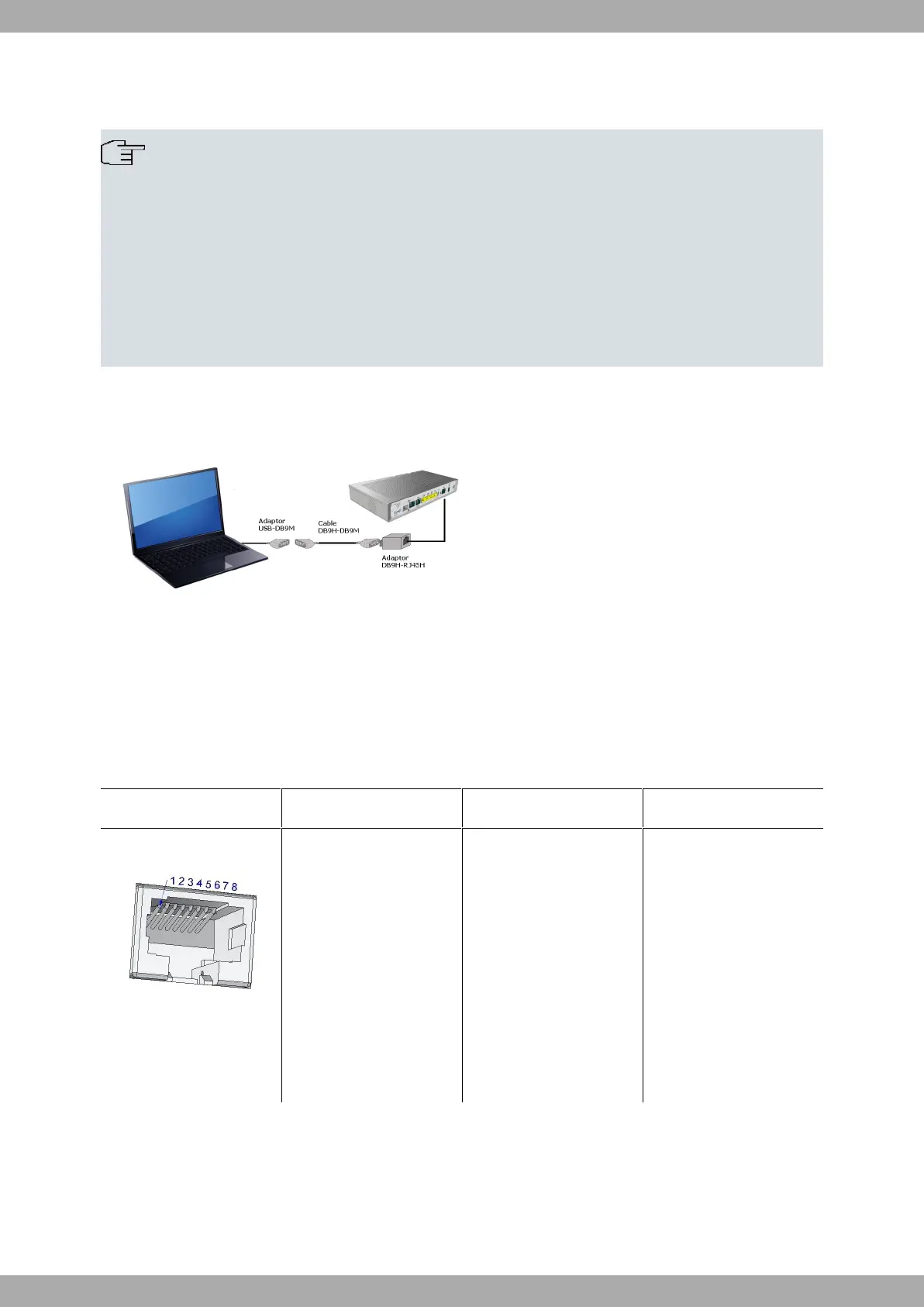

Fig. 26: Connecting for Configuration
For more detailed instructions, please refer to the “Teldat Dm704-I Configuration and Monitoring” manual.
A.4 Connectors
A.4.1 LAN connectors
RJ45 LAN RJ45 PIN FE Signals GE Signals
1
2
3
4
5
6
7
8
BI-DA+
BI-DA-
BI-DB+
--
--
BI-DB-
--
--
BI-DA+
BI-DA-
BI-DB+
BI-DC+
BI-DC-
BI-DB-
BI-DD+
BI-DD-
