c. Select a place where there is no spark, e.g. keep away from motors, relays,
magnetic switch and power cables.
d. Keep away from high-voltage wiring and device.
e. The Receiver’s box must be at least 3 cm away from the other obstacles.
3. Installation of proper power source
The input power source for receiver can be 48 VAC 50/60 Hz, 110VAC,
50/60 Hz or 220VAC, 50/60 Hz., or 380VAC, 50/60 Hz. After power source
is confirmed, one must connect the connector of initial coil of transformer to
the relay module properly.
3-3-2 Installation Sequence
1. Turn off the main power for crane.
2. Drill the holes for screws, install receiver and then fix the receiver with 6mm
screw nut on vibration- Resistant.
3. Connect the cable-assembly (provided) to the receiver and tighten the cables.
4. Connect cables to the control circuit of crane according to the receiver’s
wiring table and control contacts diagram.
Note:
Inspect and make sure that all wires are connected correctly.
5. Secure the cables between the receiver and crane so that cable cover (wrapper)
will not wear out due to the vibration of the crane

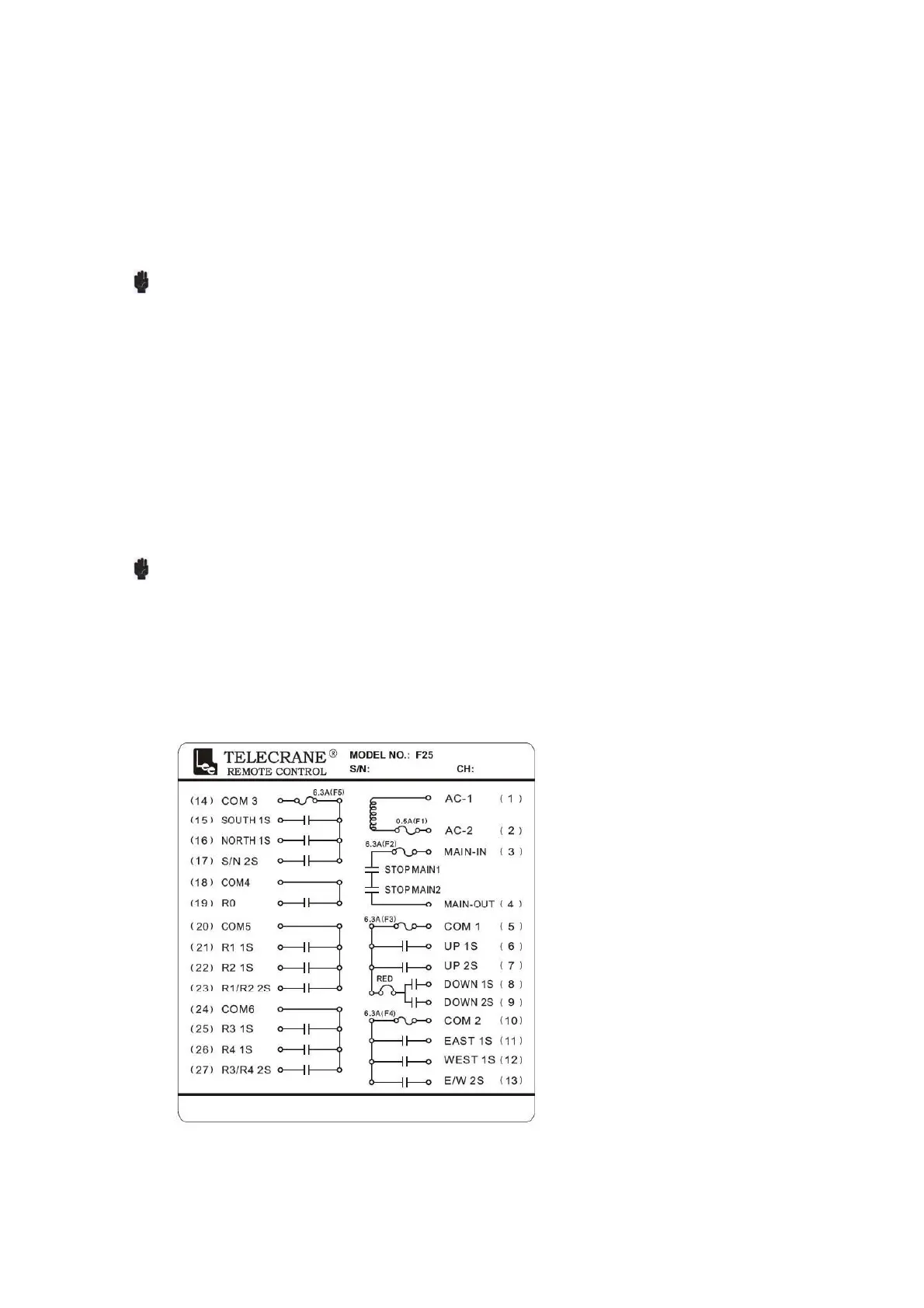

3-3-3 Control Contacts Diagram
