780E Video Generator / Analyzer – Quick Start Guide Page 7
3 General Operation
This section describes power up, power usage and general operation.
3.1 Power Considerations

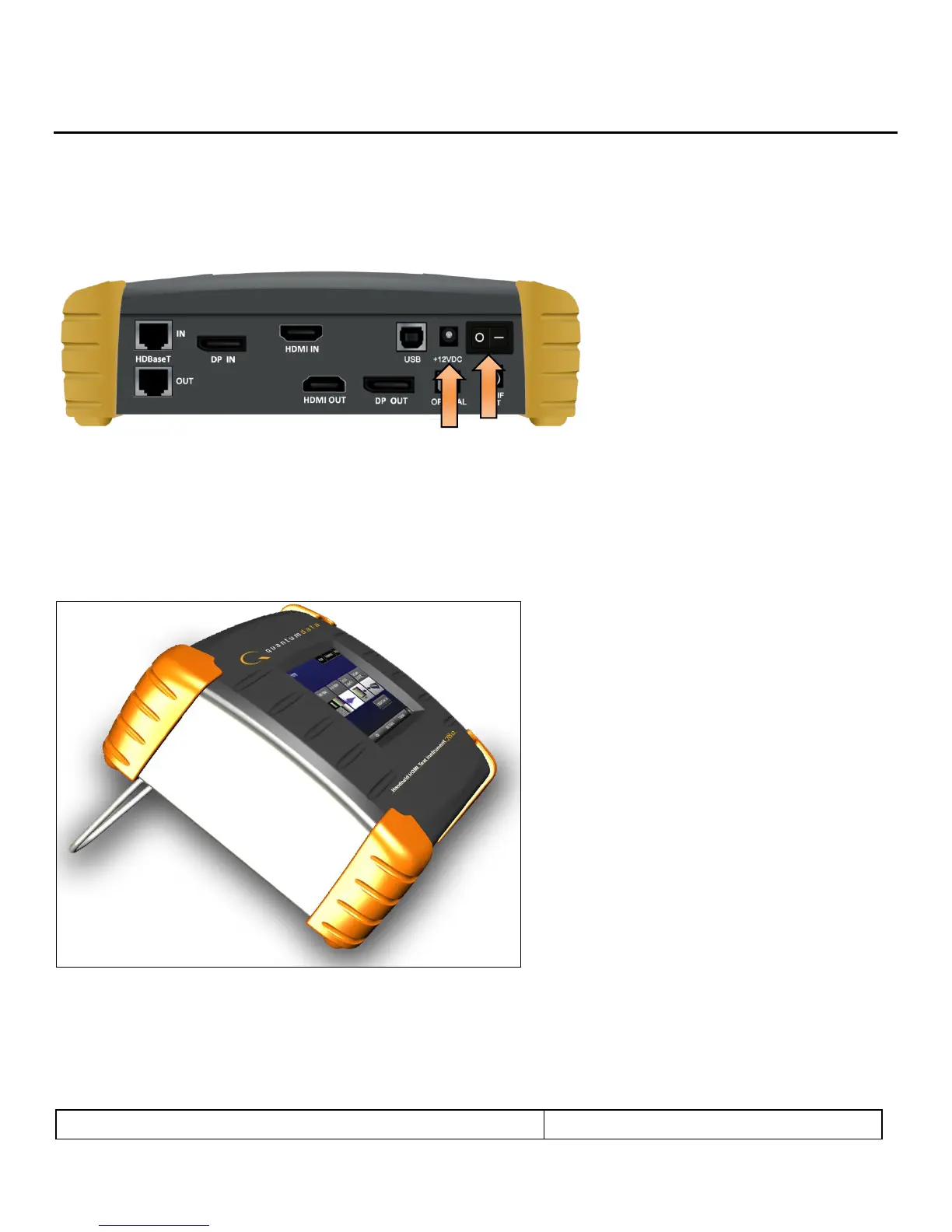

The 780E has a rocker style power switch on the back panel. Refer to the photo below.
The 780E is supplied with the Part No 25-00110 12V DC power supply and charger as well as a part number
30A00400A03 line cord.
3.2 Tilt Bail
The 780E has support bail similar to the 780 (shown below) for convenience in viewing. This is depicted in the illustration
below.
3.3 Navigating through the 780E User Interface
The 780E user interface is a color touch screen display 800 by 480. A single touch will activate an item on the screen or
take you down to a lower level menu. A + indicates that you have to double touch to navigate down to a lower level menu.
