TMC470 CONTROLLER
The TMC470 controller may be installed as a table-top unit, a
wall-mounted unit, a panel-mounted unit, or an enclosure-
mounted unit. All configurations provide features and connectivity
for external communications. Differences occur only in the
mounting configuration.
TMC470 Specifications
The TMC470 Controller specifications are subject to change
without prior notice.
Compliance .............................. CE, RoHS
Configurations .......................... Table-top, Wall-mounted, Panel-
mounted, or Enclosure-mounted
Rating ....................................... NEMA 1 (I.P. 30) table-top or wall-
mounted
NEMA 12 (I.P. 65) panel-mounted
using appropriate customer-supplied
panel
NEMA 12 (I.P. 65) enclosure-
mounted using Telesis-supplied
TMC470N enclosure
Dimensions ............................... refer to the appropriate TMC470
Controller Dimensions drawing
Weight ...................................... 3.69 lb. (1.68 kg) controller only
3.90 lb. (1.77 kg) with wall-mount kit
5.52 lb. (2.51 kg) with panel-mount kit
28.1 lb. (12.77 kg) with TMC470N
enclosure
TMC470 Specifications
(continued)
Operating Temperature ......... 32° to 122° F (0° to 50°C)
Operating Humidity ................. 10% to 80% non-condensing
Cooling ..................................... Internal, thermostatically-controlled fan
Power Requirements .............. 95 to 250 VAC, 2 amps, 50-60 Hz,
single phase
Communications...................... TTL, Discrete I/O, RS232, RS485,
TCP/IP, and USB (data backup &
transfer)
Input Signals ............................ Twelve (12) total, optically isolated
8 dedicated, 1 programmable,
3 available
10 VDC (minimum voltage)
30 VDC (maximum voltage)
12 to 24 VDC (nominal voltage)
2.3 mA @ 12VDC; 4.9 mA @ 24VDC
(nominal current)
Output Signals ......................... Six (6) total, optically isolated
4 dedicated, 2 available
0.25 amps (maximum current)
0.50 ohms (maximum On resistance)
40 VDC (maximum line voltage)
12 to 24 VDC (nominal line voltage)

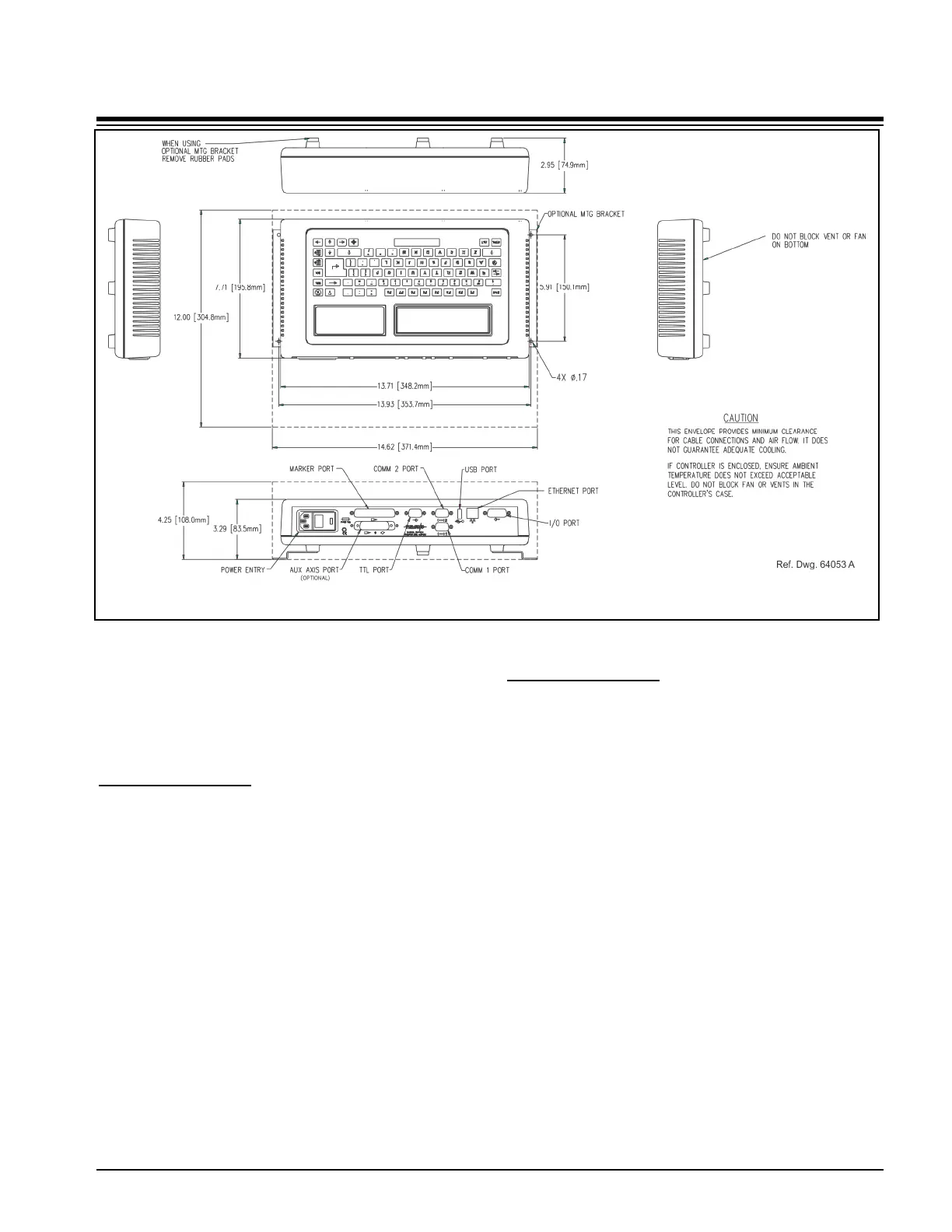

TMC470 Controller Dimensions – Table-top and Wall-mounted Configurations
