Replacing the Fuse
Use a small flat-blade screwdriver to pop out the fuse holder. Replace
the fuse only with the type and rating shown on the label.
Replacement Fuses:
Rating Part Number Used On
1.25 A/250 Vac 56676-113 110 Volt Unit
0.8 A/250 Vac 56676-006 220 Volt Unit
If the module repeatedly blows fuses, the module should be returned for
servicing.
15
120Vac
FUSE HOLDER
REMOVAL
120Vac

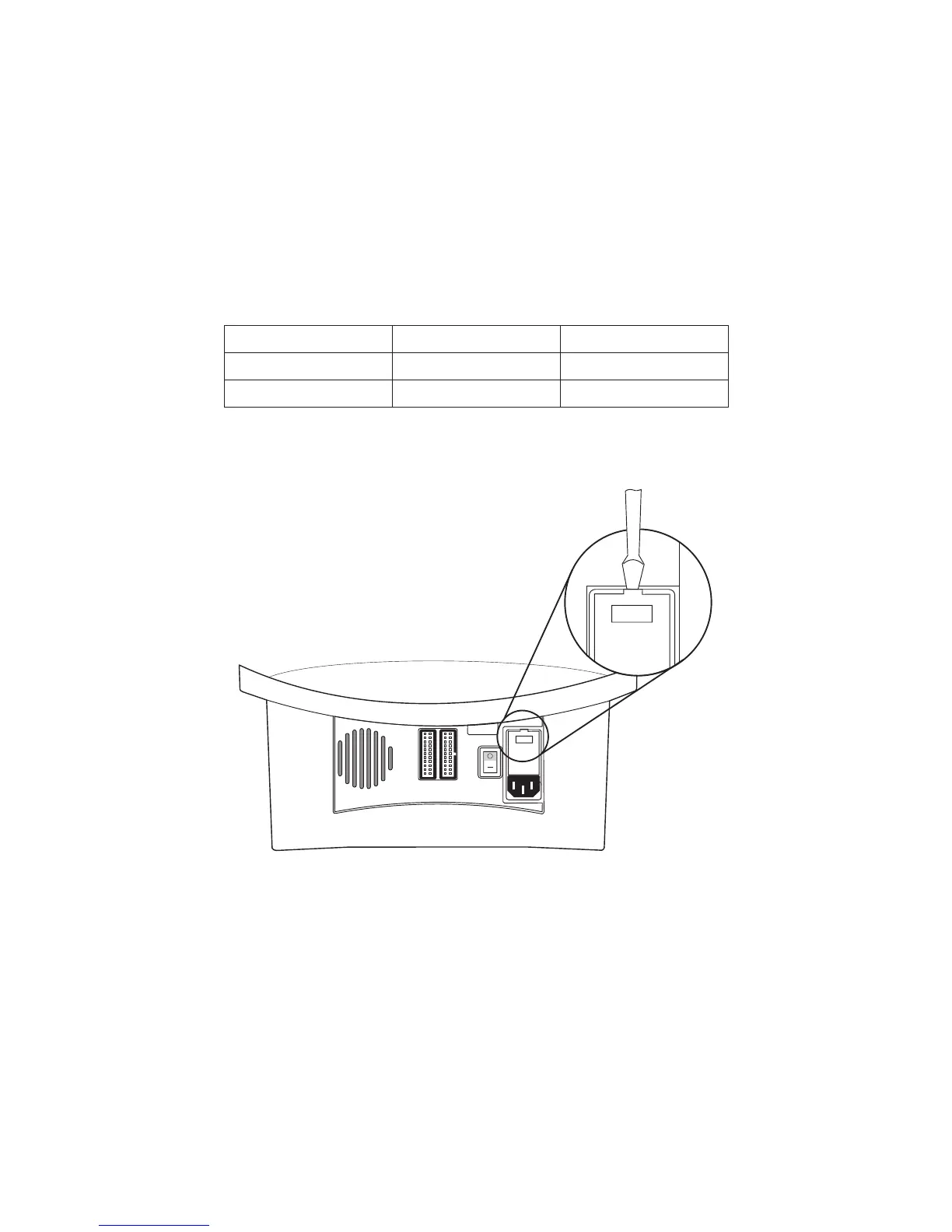

Figure 3. Fuse Replacement
