Teltonika DPH200 - Page 6

Teltonika © 2008, GSM Desktop Phone DPH200 User Manual v1.02
6

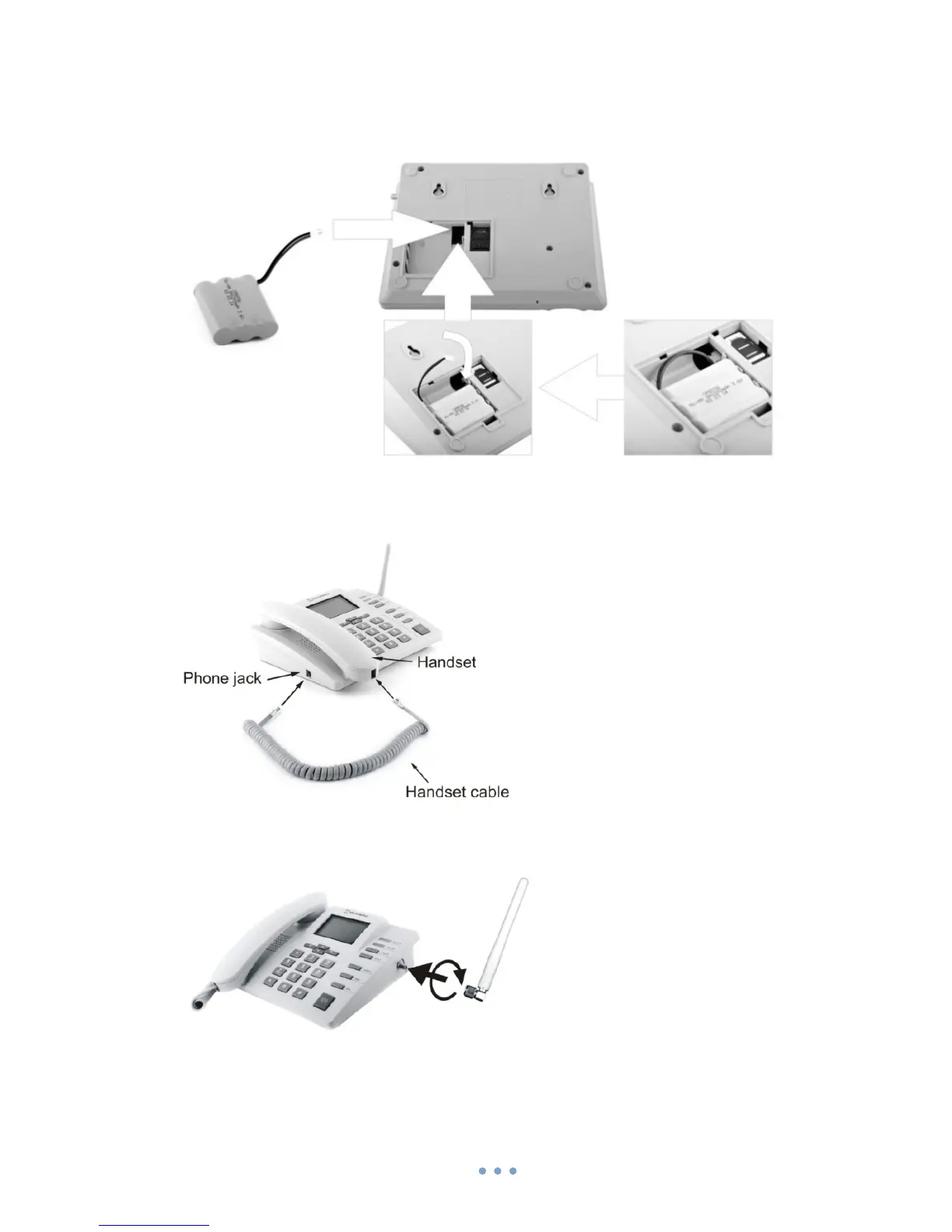

Connect back up battery
Battery is under the same cover as the SIM card. To install the battery plug the
battery connector in to the battery socket.
Connect handset
Connect one handset cable end to the handset and another one to the phone jack.
Attach antenna
Screw the antenna in a clockwise direction.
Position the antenna upwards at its connecting joint. This will ensure optimal
reception.
