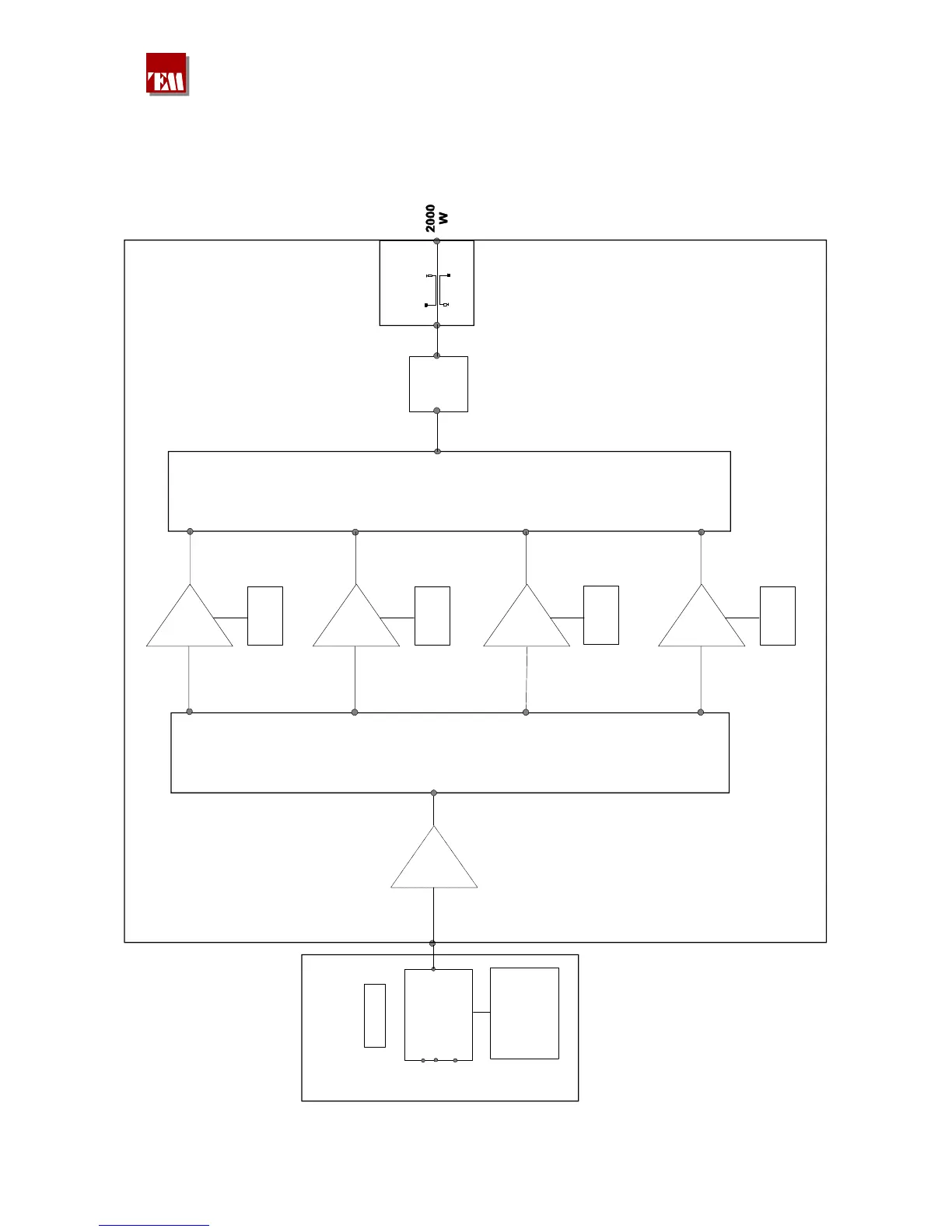

A07A2200S BLOCK DIAGRAM
380 221 R02
R.F. Wilkinson Divider.
Control Logic
Unit
R.F. Wilkinson Combiner
RF Exciter
Left
Right
MPX
R.F. Amp. 3
600 W
Forward
Reflected
RF
Output
R.F. Filter
Power Supply
R.F. Amp. 4
600 W
R.F. Amp. 2
600 W
R.F. Amp. 1
600 W
RF Amplifier Module
Pag. 13
48V 20A Power Supply 48V 20A Power Supply
48V 20A Power Supply
48V 20A Power Supply
