Temco DV5200N - Page 18

18
Temco DV5200, DV6400 Series
77531
Ref. DV5200 DV6400
A73¹⁄₂” (1867mm) 79” (2007mm)
B51³⁄₄” (1315mm) 55⁷⁄₈” (1419mm)
C 12” (305mm) 14¹⁄₄” (362mm)
D9⁷⁄₁₆” (240mm) 9⁷⁄₁₆” (240mm)
E42¹⁄₂” (1080mm) 42¹⁄₂” (1080mm)
F53¹⁄₄” (1353mm) 53¹⁄₄” (1353mm)
G 24” (610mm) 24” (610mm)
H30⁵⁄₈” (778mm) 30⁵⁄₈” (778mm)
J41³⁄₈” (1051mm) 41³⁄₈” (1051mm)
K39³⁄₈” (1000mm) 39³⁄₈” (1000mm)
L23¹⁄₂” (597mm) 23¹⁄₂” (597mm)
M29¹⁄₄” (743mm) 29¹⁄₄” (743mm)
N 34” 864mm) 34” (864mm)
O28¹⁄₂” (724mm) 28¹⁄₂” (724mm)
P20¹⁄₂” (521mm) 20¹⁄₂” (521mm)
C
A
Min.
B
Min.
D
M* Min.
N Max.
L
(Ref.)
E
F
10" (254mm)
Min.
1/2"
(13mm)
L
K*
16¹⁄₃₂"
(407mm)
P Min.
G* Min.
O Max.
H
J
10" (254mm)
Min.
HSQ47
TDV90
TDV45
Corner Installation
Horizontal Vent
45°
Up & Out Vent
Horizontal
HSQ47
TDV90
TDV45
Vertical Vent
Horizontal Vent
HSQ47
Cap telescopes may be
cut off to achieve
minimum framing depth.
TDV45
T198
*NOTE: Refer to Offset
Chart on Page 16 for
Maximum horizontal runs.

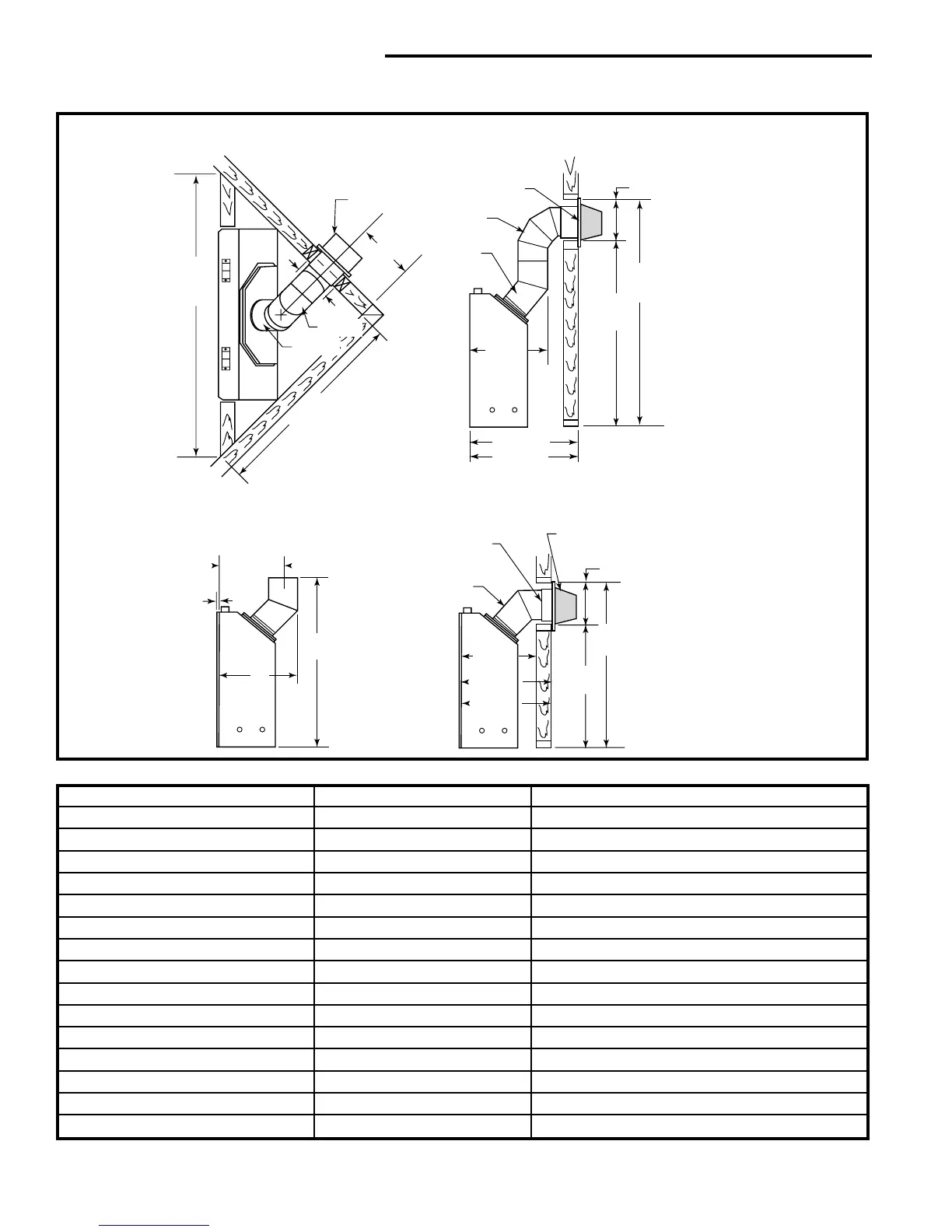

Fig. 29 Typical TDV Series vent applications.
