Temco DV5200N - Fireplace Dimensions

4
Temco DV5200, DV6400 Series
77531
Fireplace Dimensions
Ref. DV5200 DV6400
A35³⁄₄”` (908mm) 41³⁄₄” (1061mm)
B 33” (838mm) 33” (838mm)
C32³⁄₄” (832mm) 38³⁄₄” (984mm)
D34¹⁄₂” (876mm) 34¹⁄₂” (876mm)
E21³⁄₈” (543mm) 21³⁄₈” (543mm)
F6¹⁄₄” (159mm) 6¹⁄₄” (159mm)
G 32” (813mm) 32” (813mm)
H34¹⁄₄” (870mm) 40¹⁄₄” (1022mm)
I19¹⁄₄” (489mm) 19¹⁄₄” (489mm)
J13³⁄₈” (340mm) 13³⁄₈” (340mm)
K1⁵⁄₈” (41mm) 1⁵⁄₈” (41mm)
L5⁵⁄₈” (143mm) 5⁵⁄₈” (143mm)
M5¹⁄₂” (140mm) 5¹⁄₂” (140mm)
N4¹⁄₂” (114mm) 4¹⁄₂” (114mm)
O3”(76mm) 3” (76mm)
Framing Dimensions
P73¹⁄₂” (1867mm) 79” (2007mm)
Q51³⁄₄” (1315mm) 56” (1422mm)
R34³⁄₄” (883mm) 34³⁄₄” (883mm)
S 36” (914mm) 42” (1067mm)
T Refer to Figure 3 or 4 for Rough Opening Depth

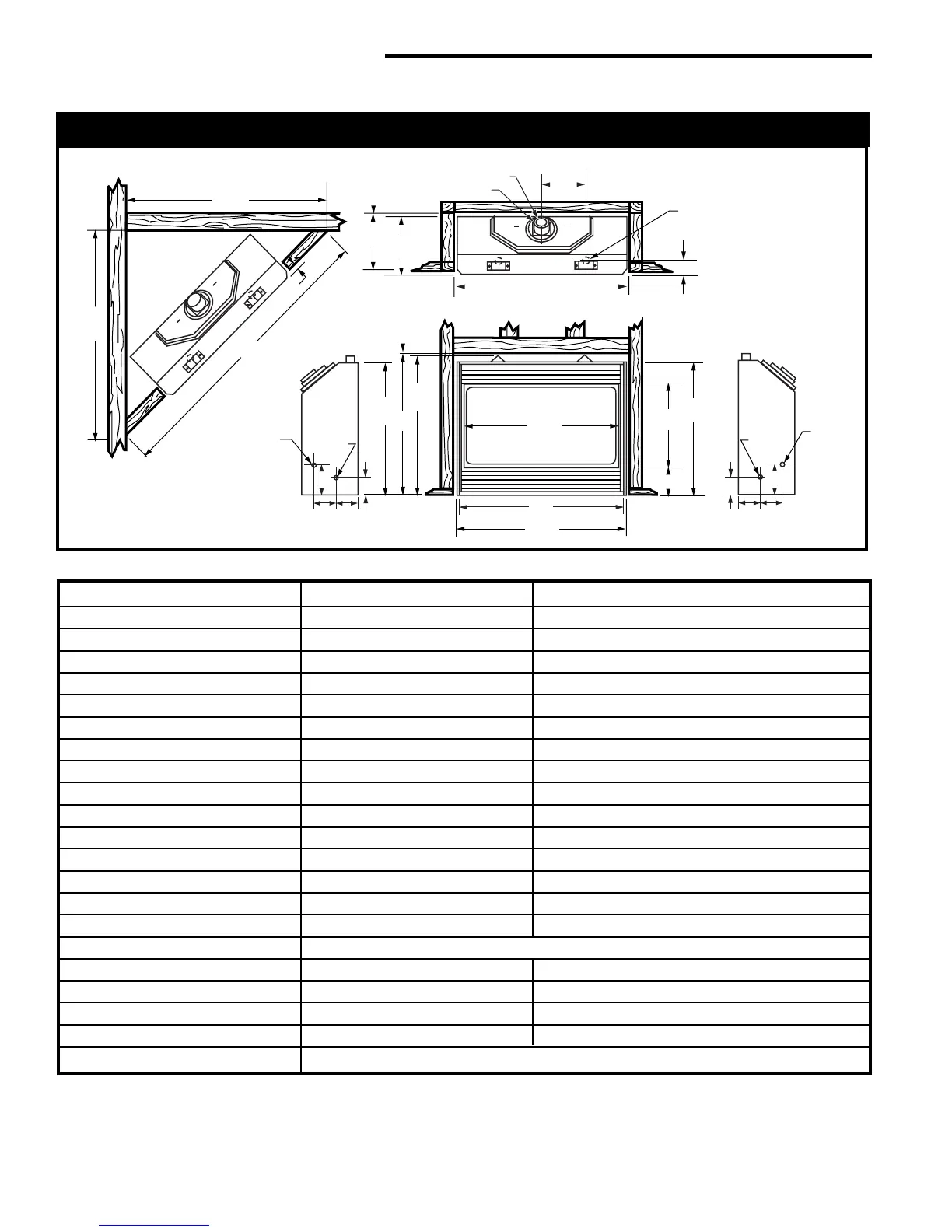

Fig. 2 Fireplace specifications and framing dimensions.
S - Rough Opening Width
Rough
Opening
Height
Rough
Opening
Depth
A
C
L
4" (102mm) Dia.
7" (178mm) Dia.
1/2" (13mm)
Q
Q
P
T
I
J
R
B
K
L
M
N
C
H
E
F
G
K
L
M
N
O
D
Gas Line
Access
J Box
Access
Gas
Line
Access
J Box
Access
Bottom Gas Line
Access
NOTE: Flex pipe diameters are
4” for inner pipe and 7” for outer
pipe.
