Temco DV5200, DV6400 Series
77531
IMPORTANT: Always check for gas leaks with a
soap and water solution. Do not use open flame for
leak testing.
Air Shutter Settings
Model Opening “A”
DV5200N 1/16” (1.6mm)
DV5200P 7/16” (11mm)
DV6400N 3/16” (4.7mm)
DV6400P 7/16” (11mm)
NOTE: These are minimum settings. Air shutter open-
ings may be increased to prevent flame sooting.
Opening
“A”
T203

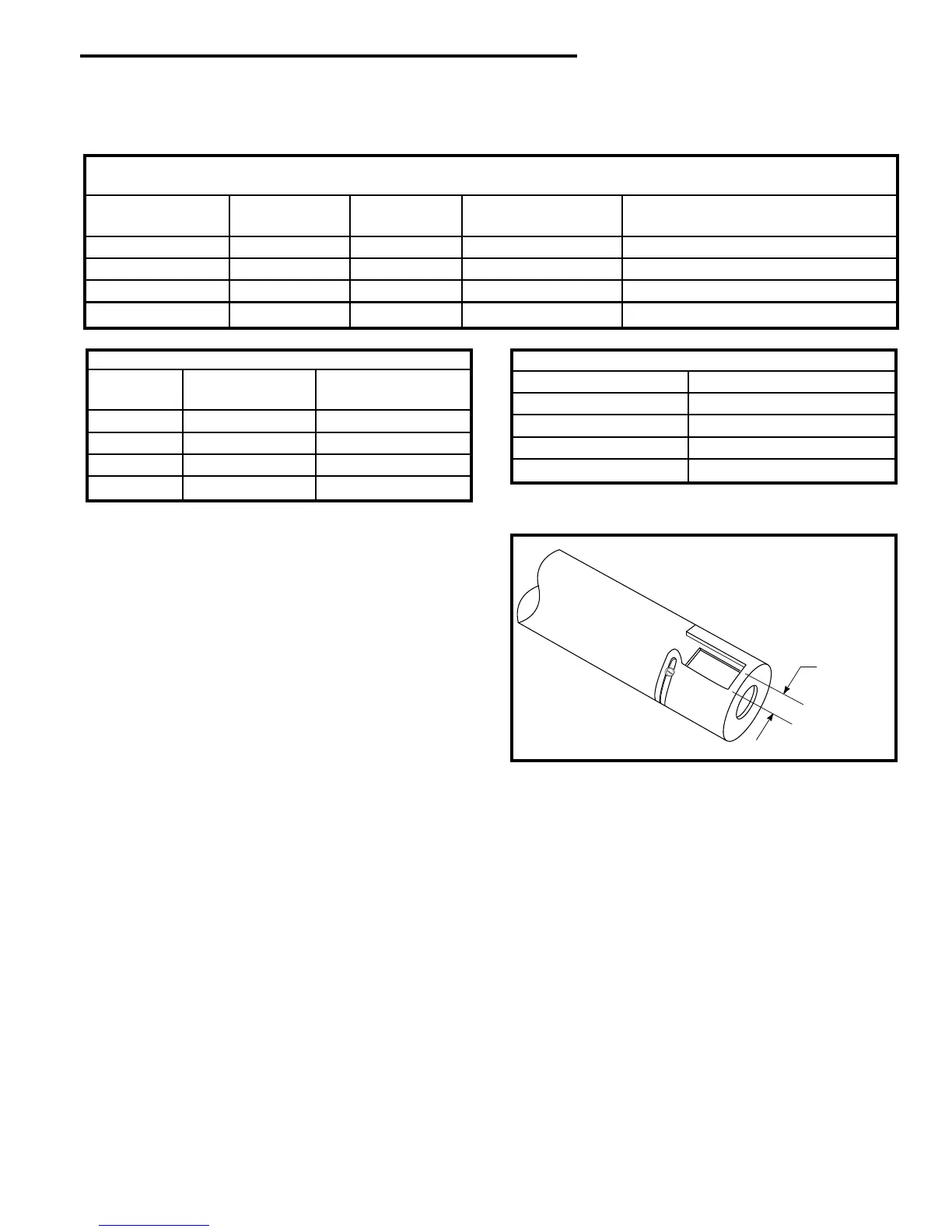

Fig. 42 Air shutter opening.
Normal and High
Direct Vent Units - Inputs - Orifice Size - Altitude
BTU/Hr BTU/Hr Manifold Pressure Orifice 0 - 2000ft. Altitude in USA
Model Min. Input Max. Input @ Max. Orifice 0-4500ft Altitude in Canada
DV5200N 17,000 25,000 3.5”w.c. #42 DMS
DV5200P 17,500 25,000 10.0” w.c. 1.45mm
DV6400N 18,000 27,000 3.5” w.c. #40 DMS
DV6400P 17,500 25,000 10.0” w.c. 1.45mm
Conversion Kits
Change Natural Change Propane
Model to Propane to Natural
DV5200N C36ACLP --
DV5200P -- C36ACNG
DV6400N C36ACLP --
DV6400P -- DV6400CNG
