Temco TFC36-3 - Mantel Projection Guidelines; Hearth Installation Details

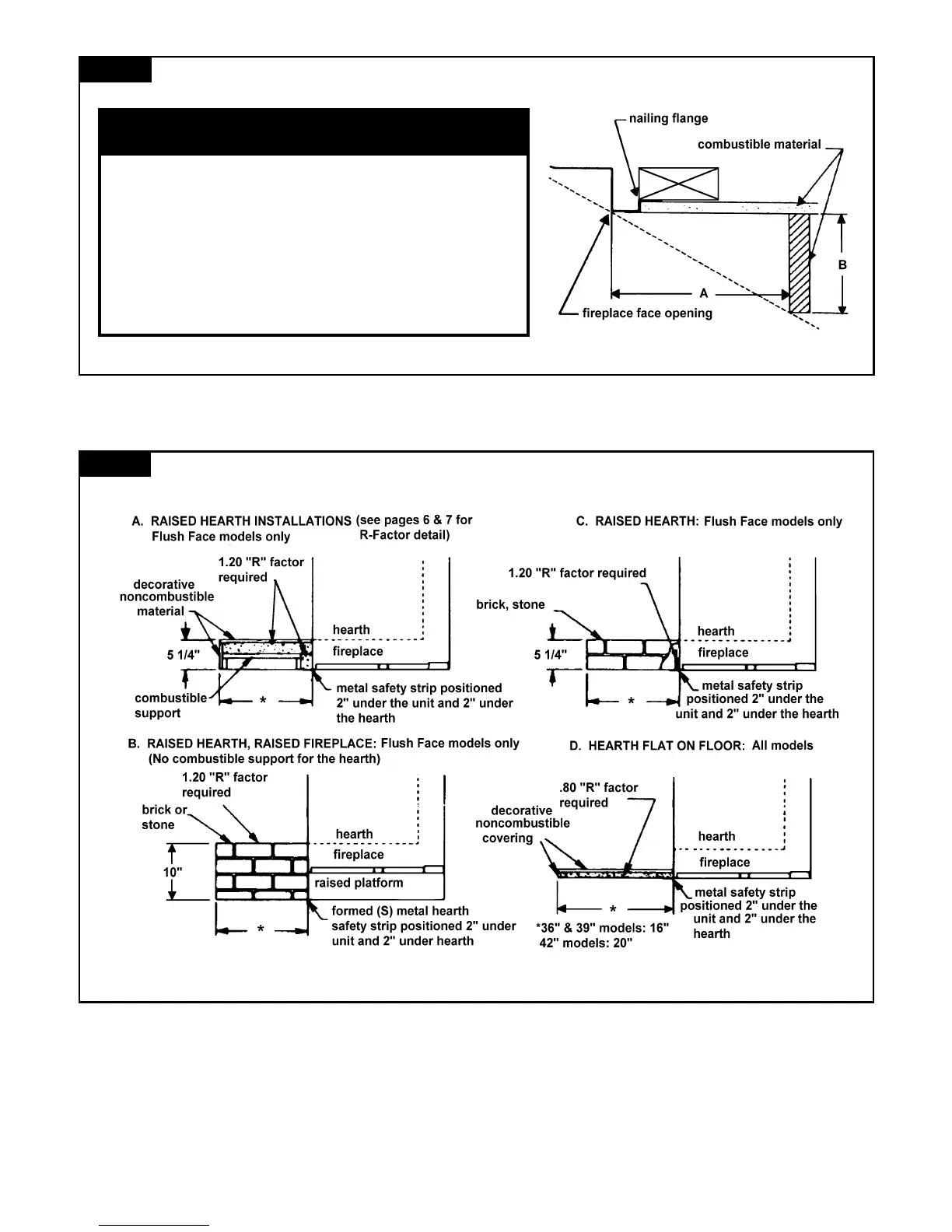

MANTEL PROJECTION
Mantel legs may project along the radiation line as illustrated.
A B
6" min. 2 5/8"
7" min. 3"
8" min. 3 1/2"
10" min. 4 3/8"
12" min. 5 1/4"
Figure 26
Figure 27
Hearth Installa-
