16Revision 1.1 08/18/2005

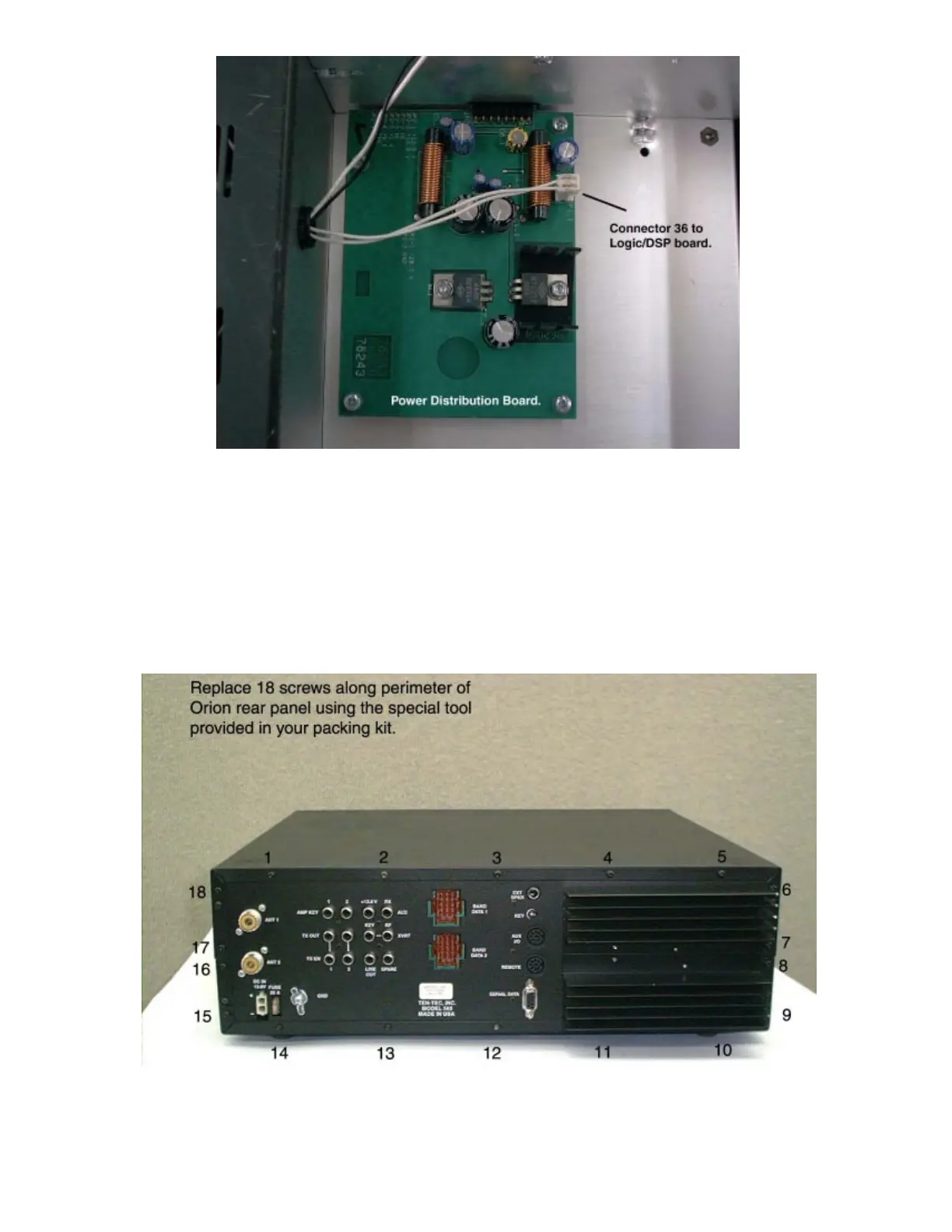

Step 20: Replace the 18 Torx-type rear cover screws.
Step 19: Before putting covers on, confirm that connector 36 on
the power distribution board is properly seated. This may have
come loose during handling of the front panel assembly. The Power
Distribution Board is located on the underside of the chassis.
