Ten-Tec PARAGON - Page 6

GENERAL
FREQUENCY RANGE
FREQUENCY CONTROL
FREQUENCY READOUT
FREQUENCY STABILITY
ANTENNA IMPEDANCE
POWER REQUIRED

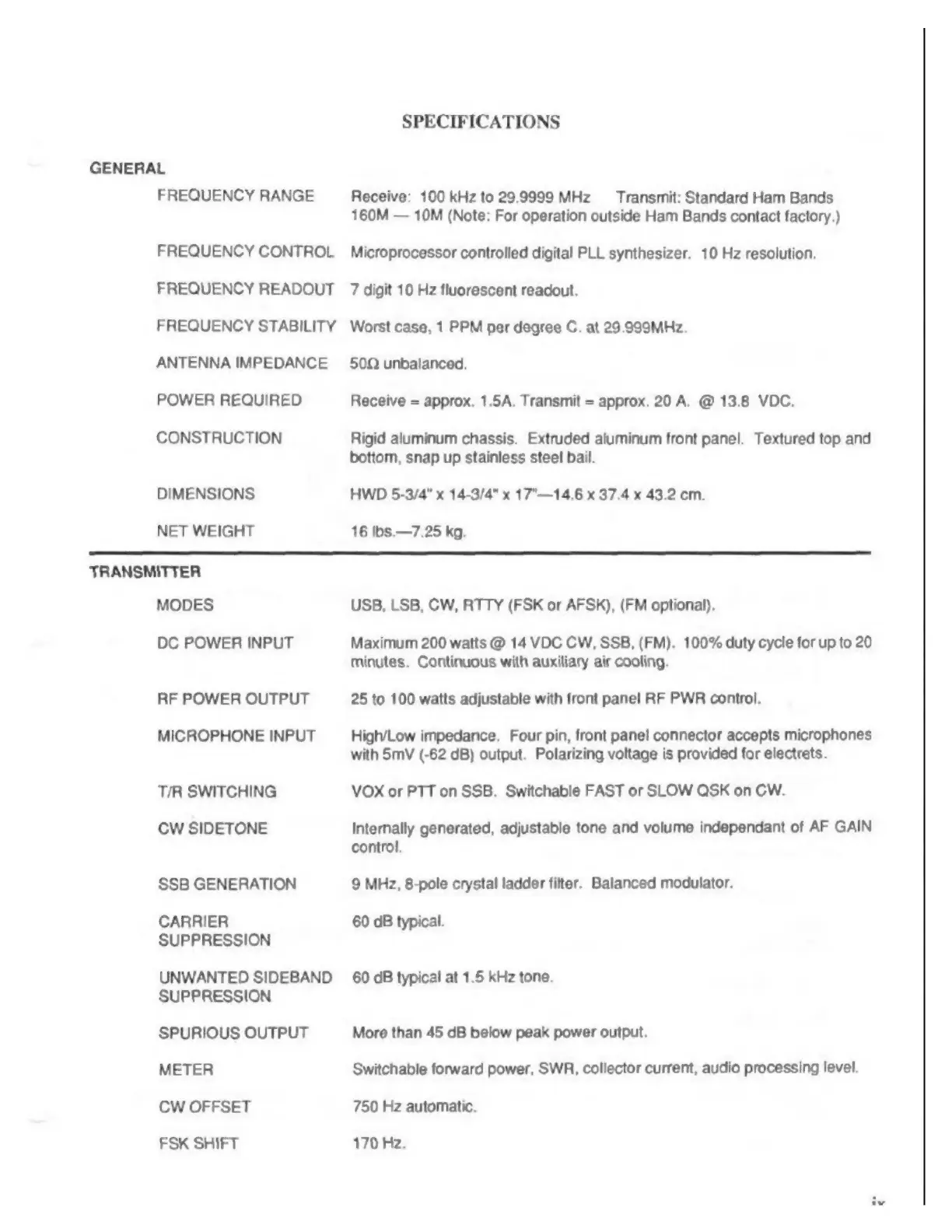

SPECIFICATIONS
Receive: 100 kHz to 29.9999 MHz Transmit: Standard Ham Bands
160M — 10M (Note: For operation outside Ham Bands contact factory.)
Microprocessor controlled digital PLL synthesizer. 10 Hz resolution.
7 digit 10 Hz fluorescent readout.
Worst case, 1 PPM per degree C. at 29.999MHz.
500 unbalanced.
Receive = approx. 1.5A. Transmit = approx. 20 A. @ 13.8 VDC.
CONSTRUCTION Rigid aluminum chassis. Extruded aluminum front panel. Textured top and
bottom, snap up stainless steel bail.
DIMENSIONS HWD 5-3/4" x 14-3/4" x 17"—14.6 x 37.4 x 43.2 cm.
NET WEIGHT 16 Ibs.—7 25 kg.
TRANSMITTER
MODES USB, LSB, CW, RTTY (FSK or AFSK), (FM optional).
DC POWER INPUT
RF POWER OUTPUT
MICROPHONE INPUT
T/R SWITCHING
CW SIDETONE
SSB GENERATION
CARRIER
SUPPRESSION
UNWANTED SIDEBAND
SUPPRESSION
SPURIOUS OUTPUT
METER
CW OFFSET
FSK SHIFT
Maximum 200 watts @ 14 VDC СУУ, SSB, (FM). 100% duty cycle for up to 20
minutes. Continuous with auxiliary air cooling.
25 to 100 watts adjustable with front panel RF PWR control.
High/Low impedance. Four pin, front panel connector accepts microphones
with 5mV (-62 dB) output. Polarizing voltage is provided for electrets.
VOX or PTT on SSB. Switchable FAST or SLOW QSK on CW.
Internally generated, adjustable tone and volume independant of AF GAIN
control.
9 MHz, 8-pole crystal ladder filter. Balanced modulator.
60 dB typical.
60 dB typical at 1.5 kHz tone.
More than 45 dB below peak power output.
Switchable forward power, SWR, collector current, audio processing level.
750 Hz automatic.
170 H2.
