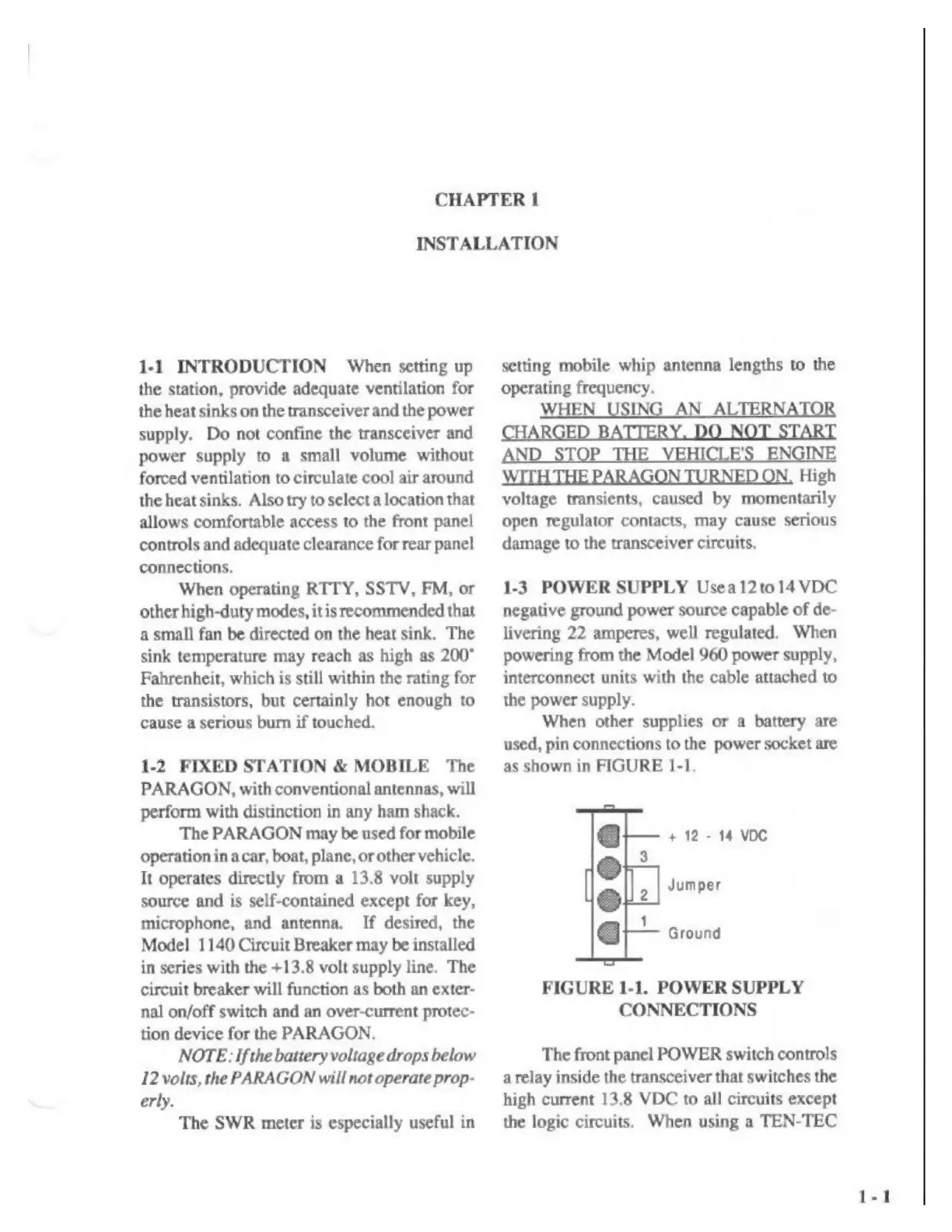

СНАРТЕК
1
INSTALLATION
1-1
INTRODUCTION
When
setting
up
the
station,
provide
adequate
ventilation
for
the
heat
sinks
on
the
transceiver
and
the
power
supply.
Do
not
confine
the
transceiver
and
power
supply
to
a
small
volume
without
forced
ventilation
to
circulate
cool
air
around
the
heatsinks.
Also
try
to
select
a
location
that
allows
comfortable
access
to
the
front
panel
controls
and
adequate
clearance
for
rear
panel
connections.
When
operating
RTTY,
SSTV,
FM,
or
other
high-duty
modes,
it
is
recommended
that
a
small
fan
be
directed
on
the
heat
sink.
The
sink
temperature
may
reach
as
high
as
200"
Fahrenheit,
which
is
still
within
the
rating
for
the
transistors,
but
certainly
hot
enough
to
cause
a
serious
burn
if
touched.
1-2
FIXED
STATION
&
MOBILE
The
PARAGON,
with
conventional
antennas,
will
perform
with
distinction
in
any
ham
shack.
The
PARAGON
may
be
used
for
mobile
operation
in
a
car,
boat,
plane,
or
other
vehicle.
It
operates
directly
from
a
13.8
volt
supply
source
and
is
self-contained
except
for
key,
microphone,
and
antenna.
ІҒ
desired,
the
Model
1140
Circuit
Breaker
may
be
installed
in
series
with
the
+13.8
volt
supply
line.
The
circuit
breaker
will
function
as
both
an
exter-
nal
on/off
switch
and
an
over-current
protec-
tion
device
for
the
PARAGON.
NOTE:
Ifthe
battery
voltage
drops
below
12
volts,
the
PARAGON
will
not
operate
prop-
erly.
The
SWR
meter
is
especially
useful
in
setting
mobile
whip
antenna
lengths
to
the
operating
frequency.
WHEN
USING
AN
ALTERNATOR
voltage
transients,
caused
by
momentarily
open
regulator
contacts,
may
cause
serious
damage
to
the
transceiver
circuits.
1-3
POWER
SUPPLY
Usea12t014
VDC
negative
ground
power
source
capable
of
de-
livering
22
amperes,
well
regulated.
When
powering
from
the
Model
960
power
supply,
interconnect
units
with
the
cable
attached
to
the
power
supply.
When
other
supplies
or
a
battery
are
used,
pin
connections
to
the
power
socket
are
as
shown
in
FIGURE
1-1.
FIGURE
1-1.
POWER
SUPPLY
CONNECTIONS
The
front
panel
POWER
switch
controls
a
relay
inside
the
transceiver
that
switches
the
high
current
13.8
VDC
to
all
circuits
except
the
logic
circuits.
When
using
a
TEN-TEC
