Tenda F3 User Manual

45

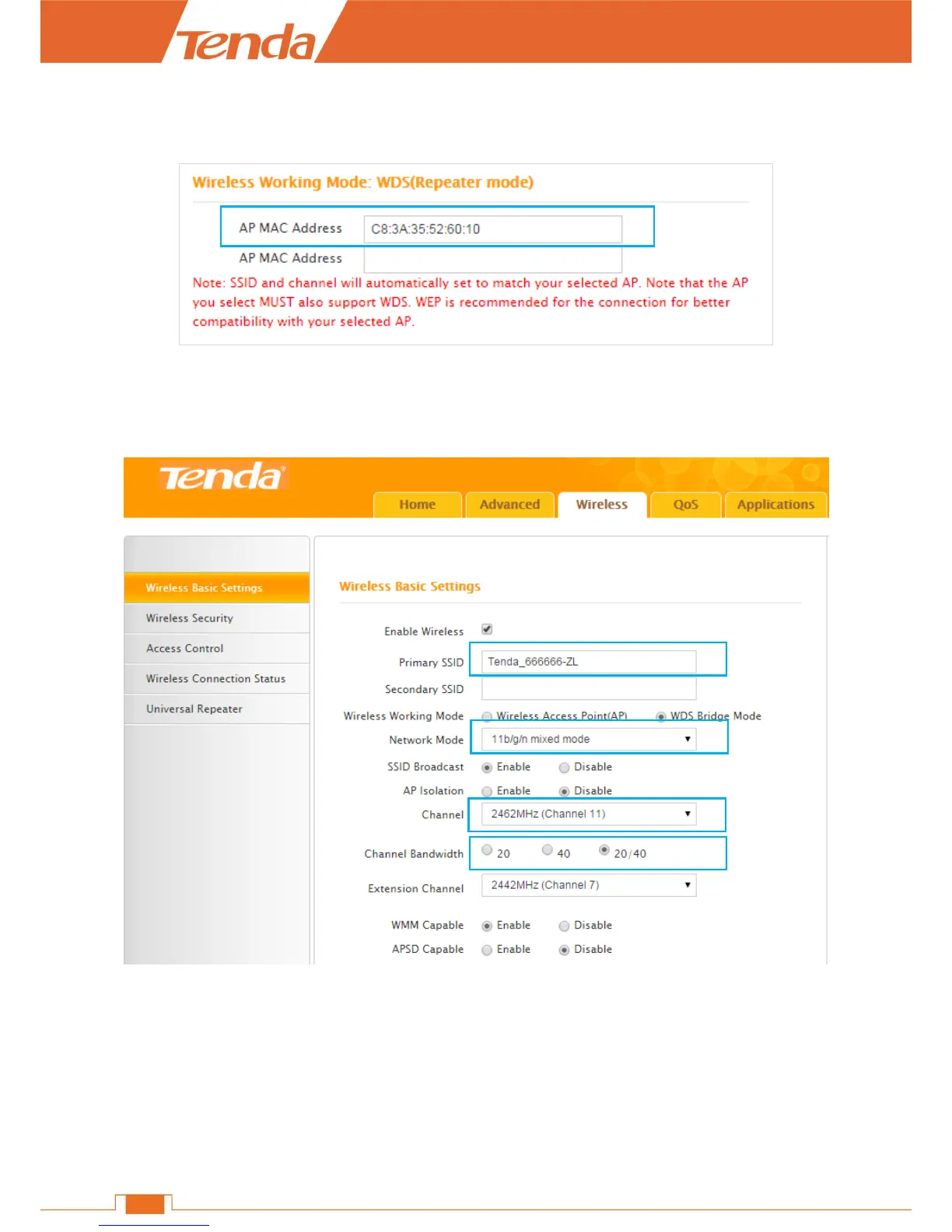

 Click OK on the pop-up window.
The MAC address of the router will be entered in the AP MAC address field automatically.
Verify that the primary SSID (wireless network name), network mode, channel, channel bandwidth,
security mode, WPA Algorithms and security key (WiFi password) are the same as the note you’ve
taken. If not, change them to the same.

Tenda F3 Specifications

General

Color	white
Wi-Fi Speed	300 megabits per second
Band Technology	single
Frequency Band	2.4 ghz
Beamforming	yes
Ethernet Standard	10/100
Ethernet Switch	yes
Wireless Standard	n
Antennas	3
Firewall	none
Data Encryption	yes
Encryption Type	wpa, wpa-psk, wpa2, wpa2-psk
Security Features	wpa algorithm: aes, tkip, tkip&aes; wireless access control: mac address filtering
Ports	rj-45
LAN Ports	3
WAN Ports	1

Weight and Dimensions

Height	1.02 inches
Width	5.02 inches
