address of your computer in the company is “202.165.100.105”, and it is a public IP address (Only
when the IP is a public IP, can this Router can be managed remotely). And your Router at home is
working properly, the WAN IP is “190.136.2.5”, and it’s a public IP address as well.
Now configure the Router to provide remote web management.
Configuration

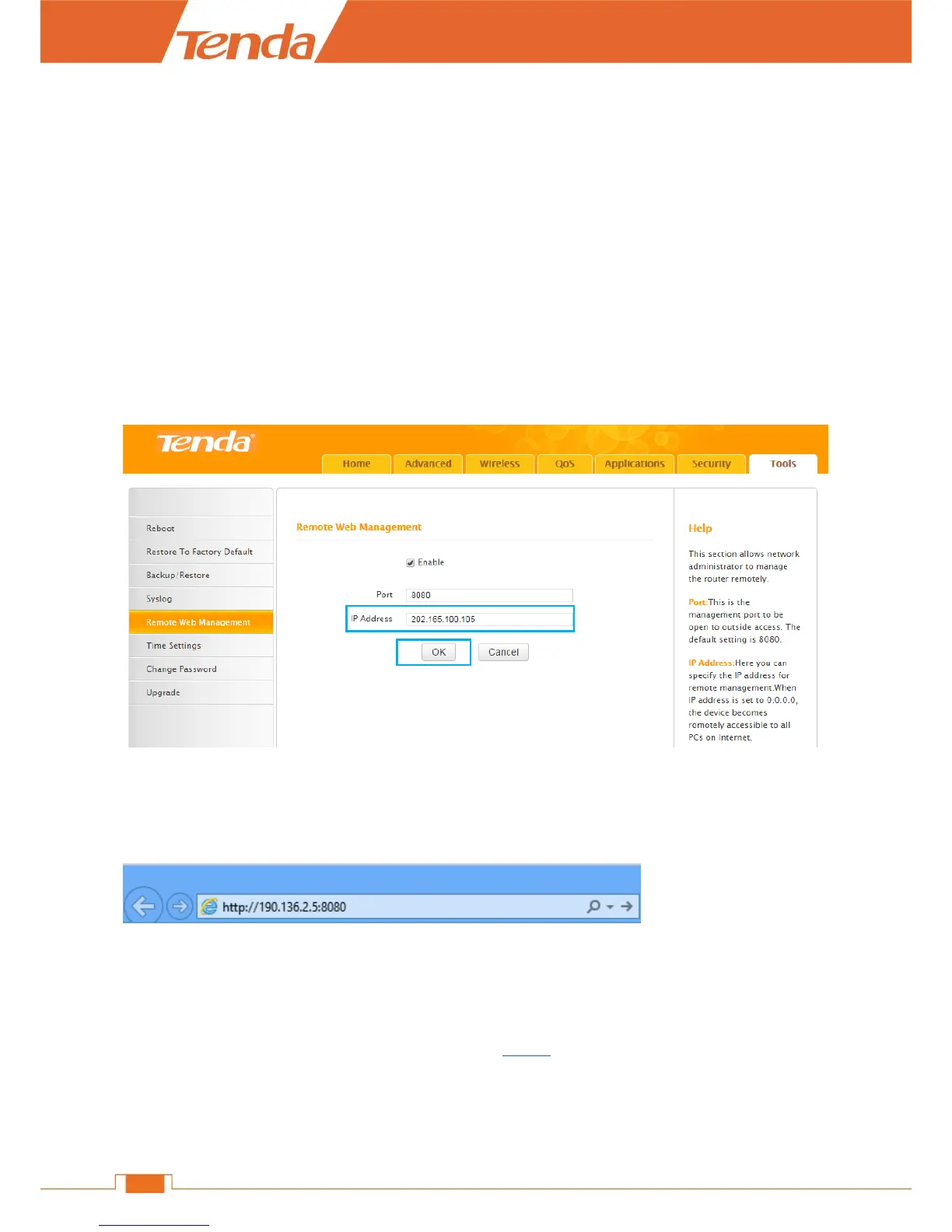

❶ Click Tools > Remote Web Management to the section. Check the Enable option.
❷ Port: The default port 8080 is a common alternate for HTTP. For greater security, enter a custom
port of the remote web management interface. Select a number from 1024~65535, but do use the
number of any common service port. Note that normal web browser access uses port 80.
❸ Input the IP address “202.165.100.105” into the IP Address field, and click OK.
Verification
When you’re in the company, you can use your computer to access your Router’s User Interface by
entering “http://190.136.2.5:8080” in a browser.
Remote Web Management + DDNS
However, in the example above, the WAN IP of the Router in your home may not always be static.
You can give the WAN IP a static host name via DDNS to maintain the connection between your
Router and the computer in your company. Go to “DDNS” for details to configure a username,
password, and domain name.
Assume you signed up an account tenda01.3322.org from dyndns.org, the username is tenda01, and
To Next Page
