3
refer to the detailed description of these indicators in LED
Indicator Specifications.

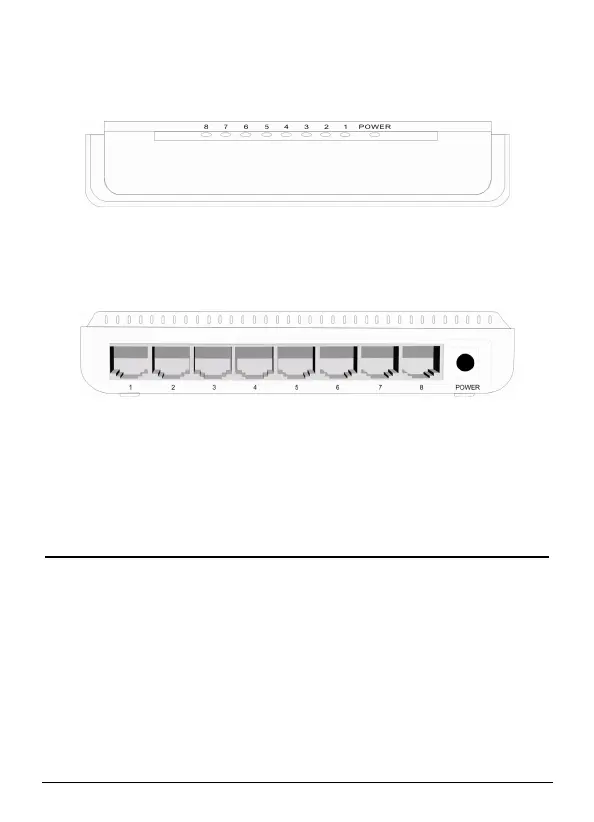

The front panel of the Switch
The Rear Panel of the Switch includes 5/8 10/100/1000Mbps
RJ-45 ports and one AC power port used for AC power input.
The rear panel of the Switch
Notice: Please use the delivery-attached power adapter. If
not, the switch may be damaged.
1.4 LED Indicator Specifications
The LED indicators of the Switch include Power and 5/8 Link/Act
indicators. You can see their operating situation through these
LED indicators.
The following chart shows the LED indicators of the Switch along
with explanation of each indicator.
To Next Page
