Tenma 72-7765 - Transistor Hfe Measurement

Measurement Operation (13)

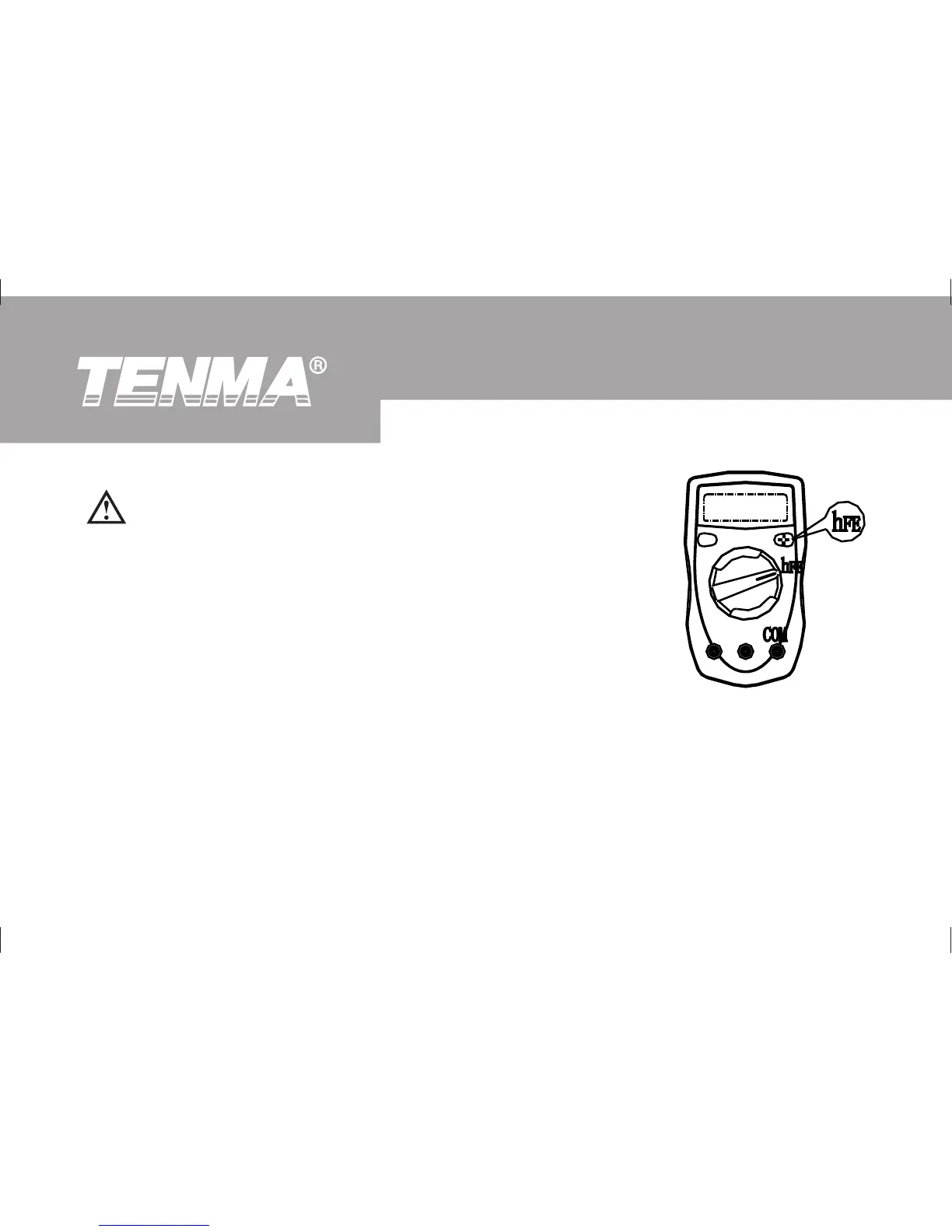

(figure 7)
26
G. Transistor hFE Measurement (see figure 7)
Warning
To avoid damages to the Meter or to the devices
under test, do not input any current over 60V DC
or 30V AC.
1. Check that the transistor is PNP or NPN type.
2. Connect the transistor to be measured to the
corresponding jacks.
3. LCD display hFE reference value.
Model 72-7765: OPERATING MANUAL
