Tenma 72-9375 - Multimeter Structure and Controls; Meter Structure Identification; Rotary Switch Functions

5
Warning. Refer to
the Operating Manual
Conforms to
Standards of
European
Union

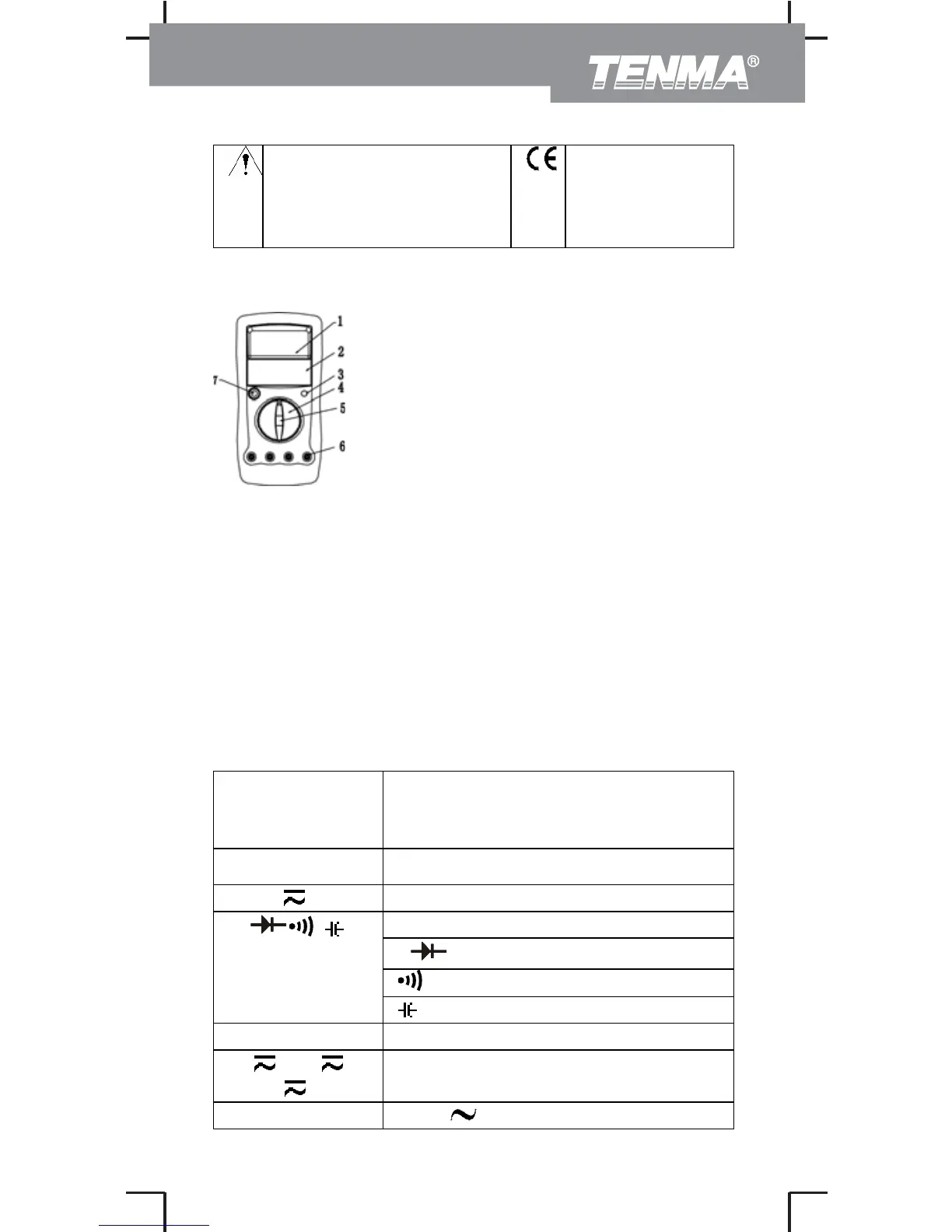

The Meter Structure (see figure 1)
ķ LCD Display
ĸ Solar Panel
Ĺ SELECT Button
ĺ Rotary Switch
Ļ HOLD Button
ļ Input Terminals
Ľ Relative Mode & RESET Button
Rotary Switch
Below table indicated for information about the rotary
switch positions.
Rotary
Switch
Position
Function
OFF Power is turned off
V AC/DC voltage measurement
ȍ: Resistance measurement
: Diode Test.
: Continuity test
ȍ
: Capacitance test
Hz Frequency Test.
μA , mA ,
A
AC or DC Current Measurement
CHARGE 110V MAX:
72-9375: OPERATING MANUAL
