7. INSTRUMENT DESCRIPTION
(See Fig.1/ Fig.2)
1. Display(LCD): Display measurements and function
symbols.
2. Power Button: ON/OFF switching.
3. MAX button: Lock up MAX or MIN (TM-202/205),
value of LCD. Press M-H or MAX again to resume
normal measuring. (TM-201/204) Press M-H or
MAX 1 second to resume normal measuring. (TM-
202 or TM-205)
4. Lux/Fc button: For select Lux and Fc.
5. DATA HOLD button: The reading data shown on
LCD can be locked while pressing the button.
6. Range button.

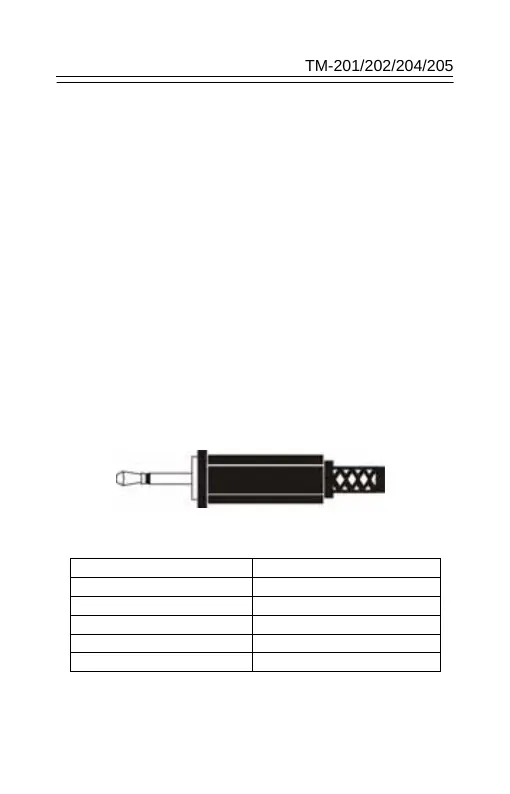

7. DC analog output terminal. (TM- 202) 3Ø plug
DC Analog Output Value
Range Output
20 Lux/FC 1 Lux/Fc=10mV
200 Lux/FC 1 Lux/Fc=1mV
2000 Lux/FC 1 Lux/Fc=0.1mV
20000 Lux/FC 1 Lux/Fc=0.01mV
200000 Lux 1 Lux=0.001mV
Table1
