SHARPENING BLADES

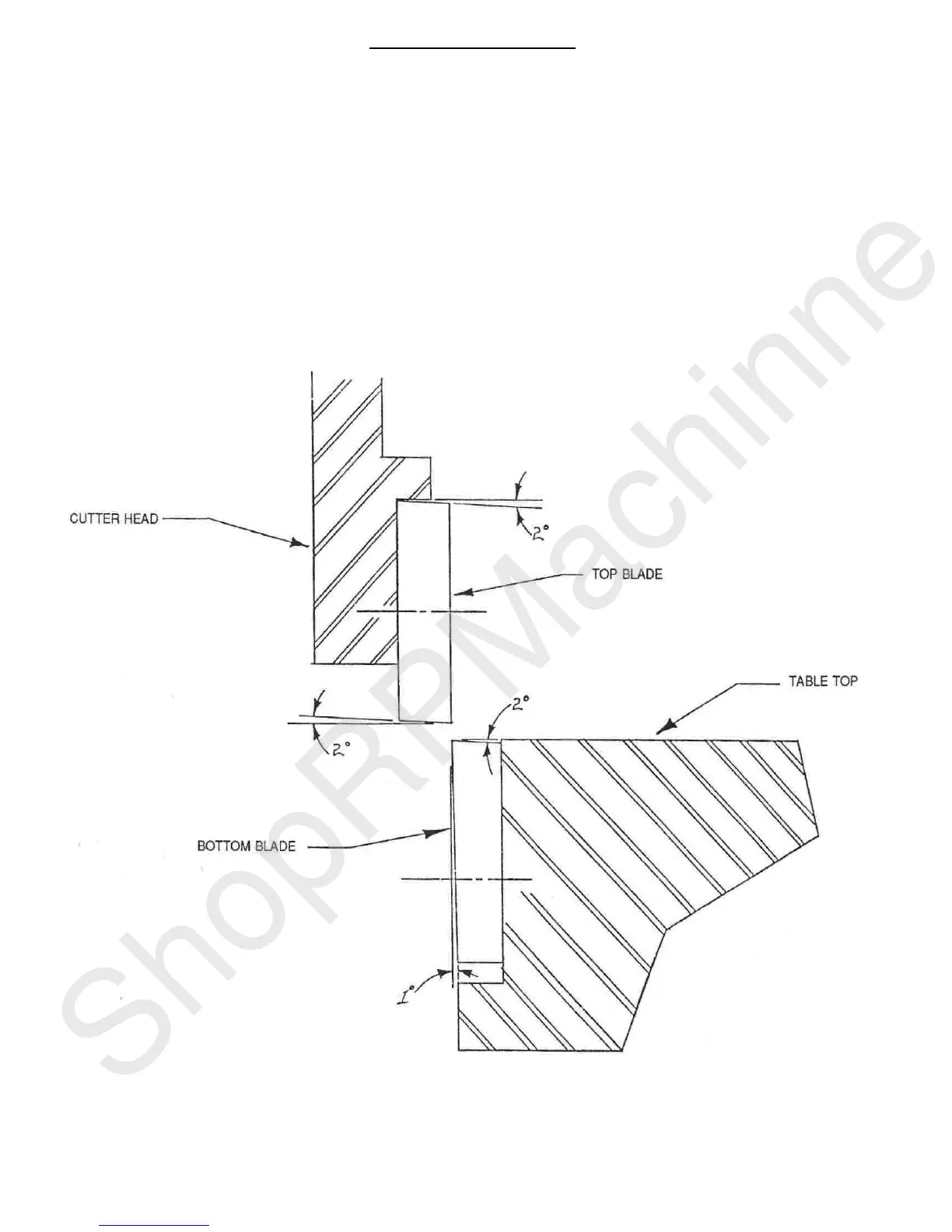

Your TENNSMITH shear features “Tri-Action” ground blades. The upper blade has two cutting edges which
are ground with a 2 degree edge relief. The upper blade can be turned over to expose the new cutting
edge. It can be sharpened on a surface grinder by grinding both wide sides to the blade. The lower blade
has one cutting edge with a 2 degree cutting edge relief and a 1 degree face relief. It can be sharpened on
a surface grinder by grinding the wide side of the blade having the 1 degree relief. See Figure 2). Blade
sharpening service is available from the factory.
