Tools needed: No.6 Hex Key
01
Release the kickstand to keep the
front frame standing.
02
Place the front post of the rear frame
into the front frame along the guiding
groove, align the holes, then tighten
with the No.6 hex key.
Torque: 10-14 Nm.

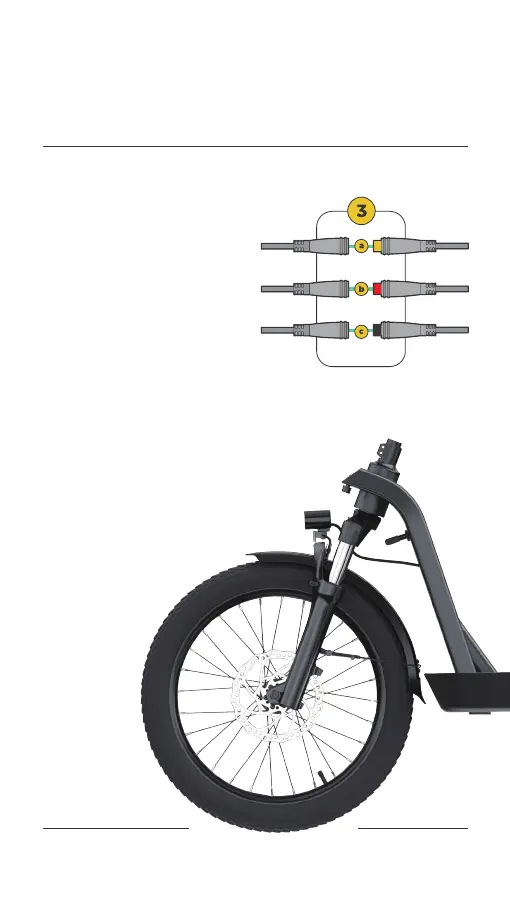

03
The cables for the connectors are
color-coded. Distinguish all cable
colors, and install the connectors
on the front and rear frames based
on these colors.
05.
017 Assemble your TENWAYS e-bike
INSTALL THE FRONT
FRAME AND REAR FRAME
