PC22B Owner’s Manual
5
Assembly Instructions
● Remove all contents from packaging, and make sure all parts are present before attempting to assemble.
● Tighten all bolt connections by hand first. Once the grill is fully assembled, go back and tighten all
connections.
● Estimated Assembly Time: 10 to 15 minutes.

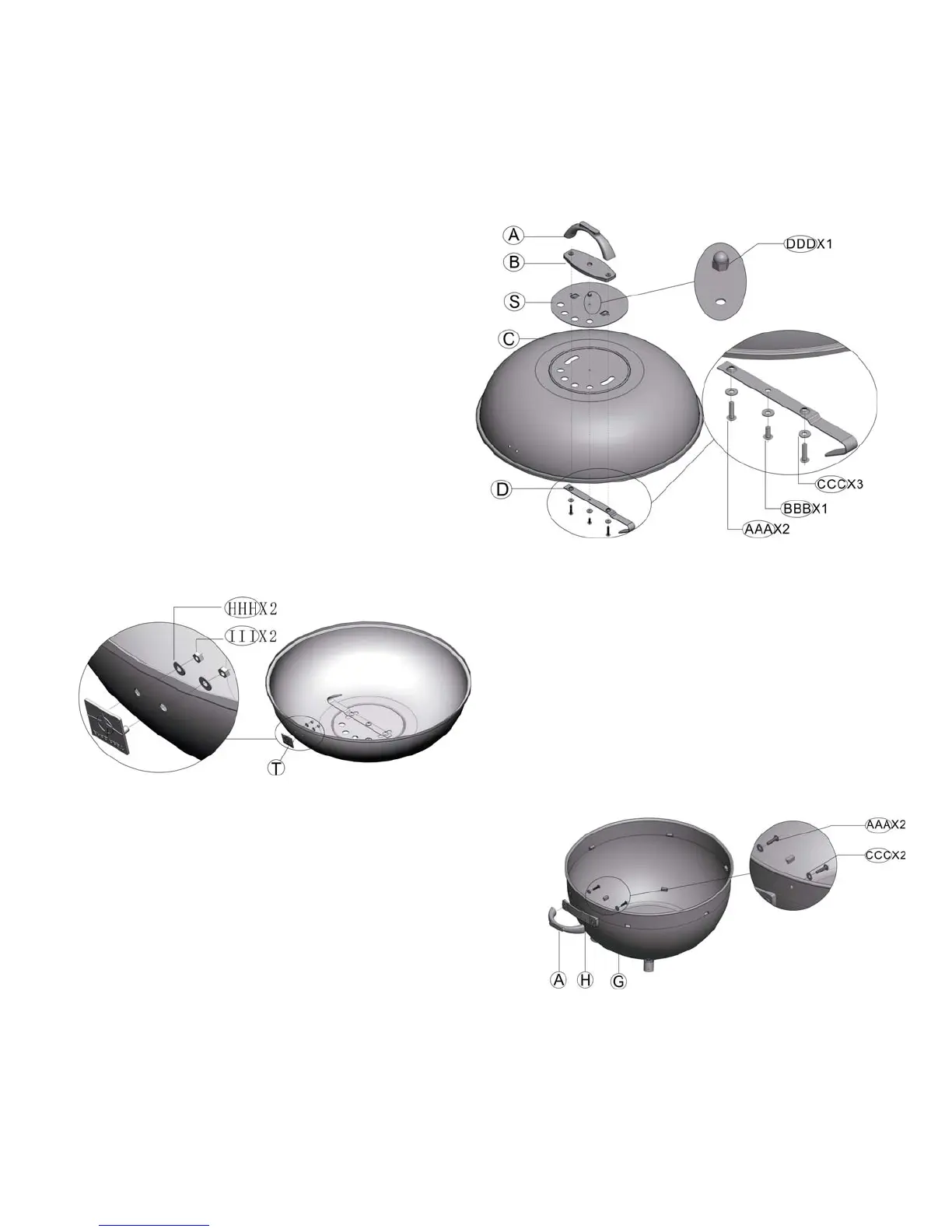

Step 2
Insert the bolts extended from the name
plate (T), the M5 flat washers(HHH) and the
M5 nuts(III) into the holes on the lid, then
tighten the nuts by hand and wrench.
Step 1
A)
A
li
g
n the holes on two sides of the lid hook
(
D
)
,with
the holes on the lid (C), the holes on the lid vent
(S), the holes on the insulator cushion(B) and the
holes on the lid handle (A), then insert one M6x25
bolt (AAA), one M6 flat washer (CCC) into each
pre-drilled hole, tighten the bolts by hand.
B) Align the middle hole on the lid hook, with the
middle holes on the lid, the lid vent and the
insulation cushion, then insert one M6 x12 bolt
(BBB) and one M6 nut (DDD) into pre-drilled hole.
C) Go back and tighten all bolts using the screwdriver
provided.
Step 3
Align the holes on the handle (A) with the holes
on the bowl insulator cushion (H)and the bottom
bowl(G), then insert one M6x25 bolt (AAA)
and one M6 flat washer (CCC) into each pre- drilled
hole, tighten the bolts by hand and screwdriver
provided.
