Teradek Ace 500 - Mounting

4
• Mount the transmitter vertically, keeping the antennas
clear of any obstructions.
• For best results, orient the transmitter antennas
so each one has clear line−of−sight to the receiver.
• DO NOT OVERTIGHTEN
SCREWS INSERTED INTO
THE TRANSMITTER’S /”- THREADED HOLE.
Doing so can damage the transmitter’s chassis and
internal components, voiding the warranty.
Ace has a 1/4”-20 threaded hole on the bottom for mounting on a light stand adapter or any other
mounting accessory.
MOUNTING
CAUTION:

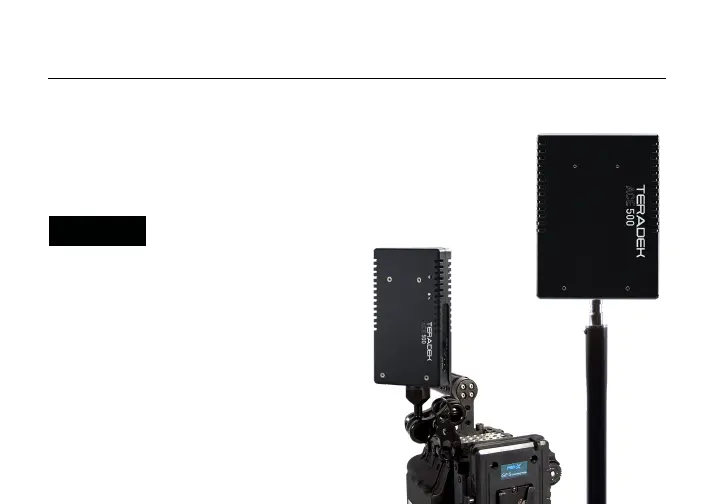

Ace 500 receiver
can be mounted
vertically on a light
stand or monitor.
Ace 500 transmitter can
be mounted vertically
on a camera
