Move the power switches on both the transmitter and receiver (H) to the ON position. Video appears
within a few seconds.
4

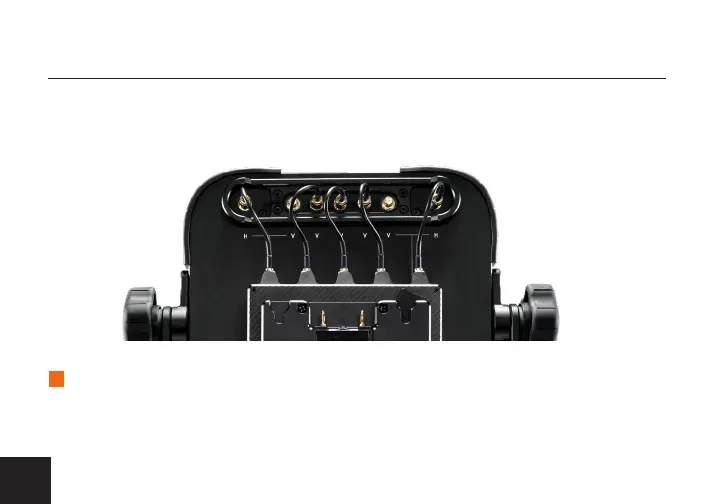

If using an Array Antenna: Connect the receiver’s three center connectors to the Array Antenna
connections labeled “V,” then connect the left and right connectors to the “H” connections using
the RP-SMA connectors (see image below).
H-V conguration
