MOUNTING ARRAY ANTENNA
• Orient the transmitter and receiver so they are parallel to each other.
DO NOT OVERTIGHTEN
SCREWS INSERTED INTO
THE RECEIVER’S 3/8” THREADED HOLES.
Doing so can damage the receiver’s chassis,
voiding the warranty.

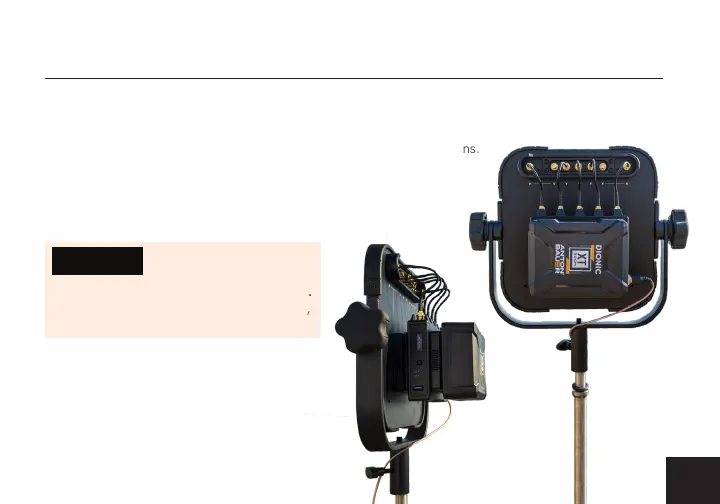

The Array Antenna has three 3/8” threaded holes: one on the bottom for mounting the included light
stand adapter or any 3/8” mounting accessory, and one on each side to mount to a yoke mount
bracket assembly.
CAUTION:
• Mount the Array Antenna vertically, keeping it clear of any obstructions.
• For best results, orient the Array Antenna so the front (with the
Teradek logo) has a clear line−of−sight to the transmitter.
