Terex CRC1150S - Cost Efficient, Sector Leading Technology; Available Options; Cone Crusher Specifications; Component Weights and Dimensions

CRC1150S Plant Specifications
Highly Portable Triple Axle Plant
• Triple Axle Load = 58,500 lbs*
• King Pin Load = 52,300 lbs*
• Travel Height = 14’-0” (zero deg)
• Travel Width = 12’-0”
Options
• Electrical switchgear panel and hydraulic lift
• Hydraulic levelling, pinned run-on jacks or
crank jacks (gas, 12v, 24v power unit)
• 24” mid plant cross conveyor
• Hydraulic feed conveyor lift – 2.5 deg screen lift
• Oversize tires
• Various power configurations
(380v thru 575v, 50hz or 60hz)
Cost Efficient, Sector Leading Technology.
• 300 hp tried and tested floating head design
with efficient roller bearings
• Large feed size: Standard Medium Course 190mm
(7.5”), Optional Extra Course 220mm (8.66”)
• Large 65mm (2.55”) stroke producing good
product shape & high capacity
• “Hammer-less” Concave retention system
(quick-safe)
• No Welding lift ears for mantle change
improving safety
• Spiral bevel drive gear train for long life, smooth
running, low noise
• 160mm (6.3”) Tramp Clearance increasing protection
• Increased Clamp Hold Down Pressure allowing
tighter settings
• Inspection ports through crusher frame for
easy maintenance
• Metal detector on main feed conveyor
Cone Specifications
Maximum Feed Size
Extra Course Configuration 220mm 8.7”
Medium Course Configuration 190mm 7.5”
Fine Configuration 110mm 4.3”
Approximate Component Weights & Basic Dimensions
Whole Crusher Dry Weight 14000 Kg 31,360 lbs
Upper Frame Assembly 4861 Kg 10,717 lbs
Cone Head Assembly 1770 Kg 3,902 lbs
Eccentric Assembly 1511 Kg 3,331 lbs
Countershaft Assembly 237 Kg 522 lbs
Main Frame Assembly 5356 Kg 11,808 lbs
Mantle Liner 610 Kg 1,345 lbs
Concave Medium Course 553 Kg 1,219 lbs
Concave Extra Course 524 Kg 1,155 lbs
Concave Fine 576 Kg 1,270 lbs
Minimum Recommended CSS
Extra Course Configuration 25mm 1.0”
Medium Course Configuration 18mm 0.71”
Fine Configuration 12mm 0.47”

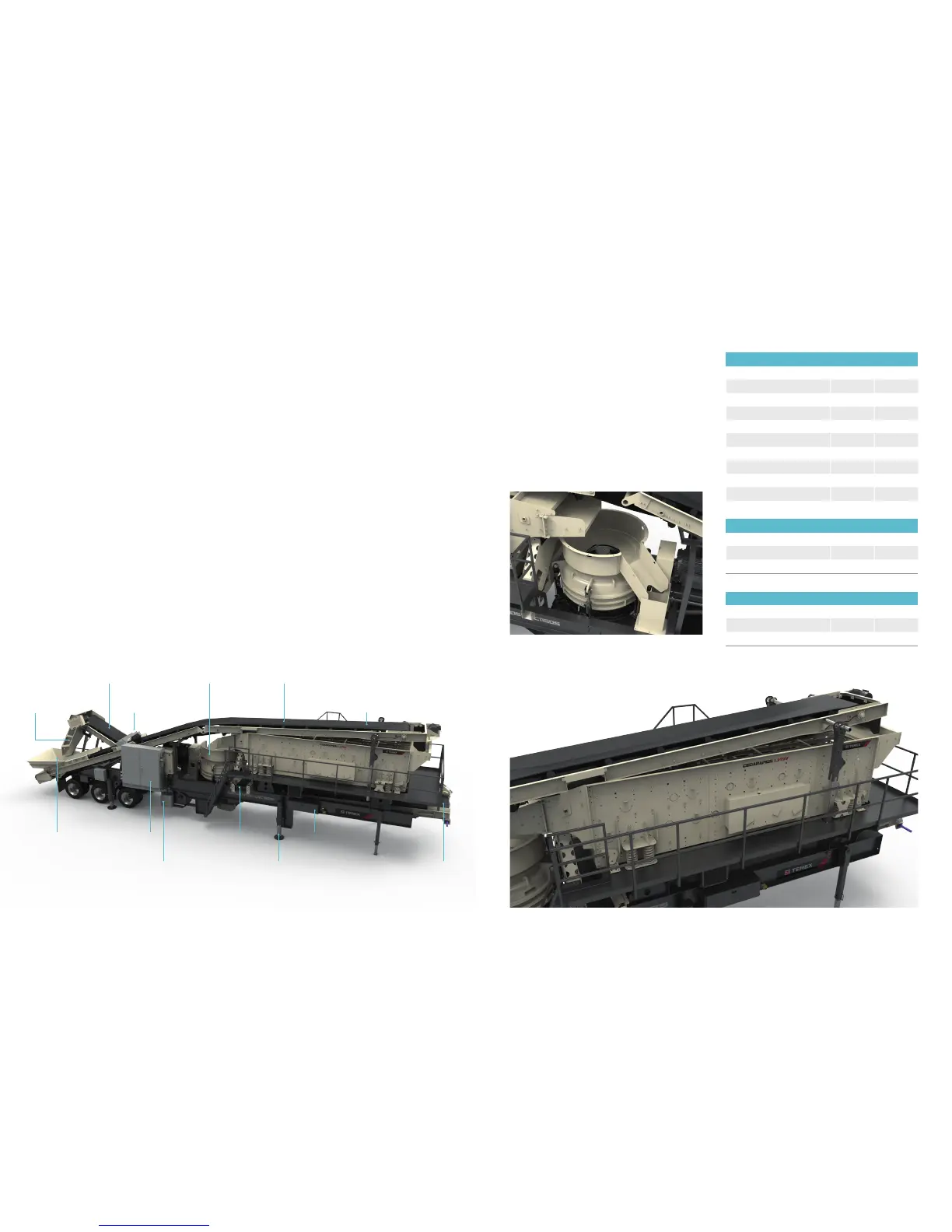

TC1150 Cone
LJ-TSV6203 3 Deck Screen
Te rex
®
MPS
Portable Plants
CRC1150S
Closed Circuit Cone
& Screen Plant
Cone Lube
System
Tool BoxFeed
Hopper
Optional 24” 5 hp
Cross Conveyor
54” 10 hp
Fines Conveyor
Optional Switchgear
Panel with Lift System
Optional
Hydraulic
Jacks
Lined Transfer
Chute
TSV6203
6’ x 20’ TD Screen
300 hp TC1150
Cone Crusher
Metal Detector
42” 20 hp
Feed Conveyor
36” 10 hp Under
Crusher Conveyor
