DIGGER DERRICK
1-6
463280 - 9/14 Terex South Dakota, Inc. Digger Derrick

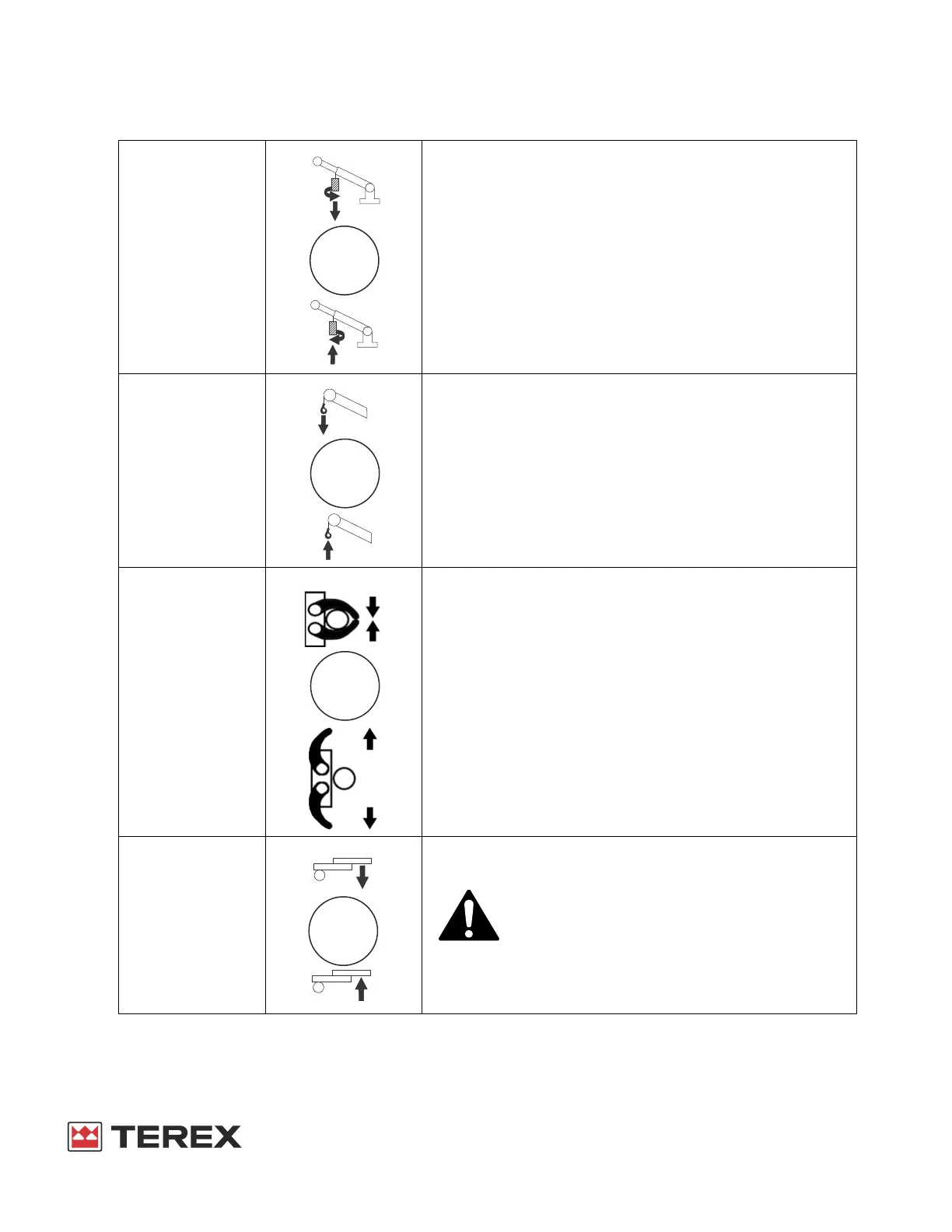

OPERATION GUIDELINES
Digger Push lever to dig and also to store auger.
Pull lever to reverse auger and also to unstore auger.
Winch Push lever to lower “DOWN” load.
Pull lever to raise “UP” load.
Pole Guide
“CLAW”
Push lever to close “HOLD” arms and guide pole.
Pull lever to “OPEN” arms and release pole.
Pole Guide “TILT” Push lever to tilt “DOWN”.
Used to keep pole guide perpendicular to pole.
Raise pole guide before operating the third
section. Otherwise, damage to the third section can occur.
Pull lever to tilt “UP”.
4
4
3
0
8
7
DGR
REV
DIG
4
4
3
0
8
6
WIN
UP
DN
4
4
3
0
8
3
CLAW
OPEN
HOLD
4
4
3
0
8
5
TILT
UP
DN
