DIGGER DERRICK
1-53
Digger Derrick Terex South Dakota, Inc. 463280 - 9/14
OPERATION GUIDELINES

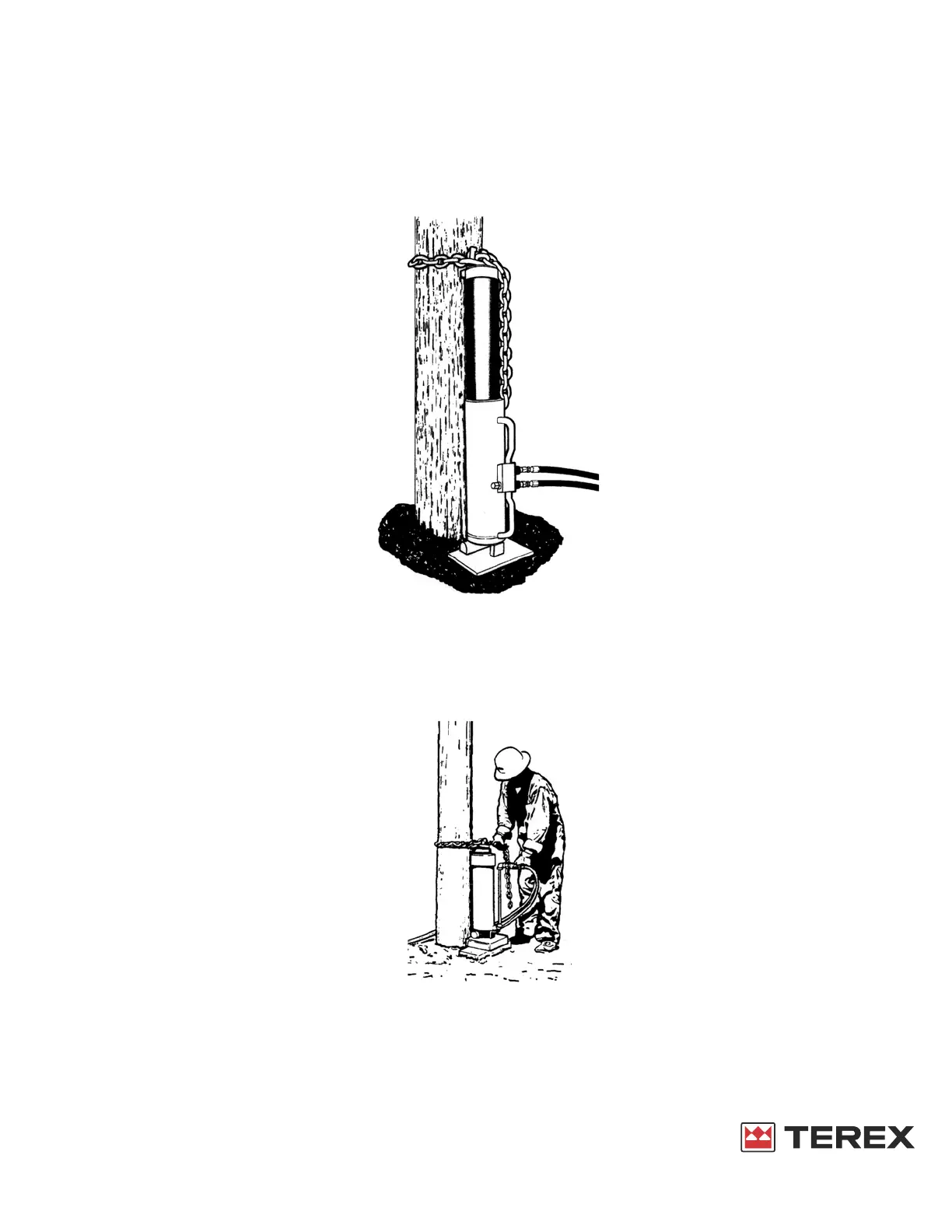

HYDRAULIC POLE PULLER
The hydraulic pole puller is a large hydraulic cylinder used for removing a pole.
The pole puller is equipped with a heavy-duty steel base and a slotted head for attaching a chain loop.
HYDRAULIC POLE PULLER
SETTING UP AND USING THE POLE PULLER
1. The steel base of the pole puller must be set on a firm level surface before operation. Shovel out a level
surface if necessary. If the ground is soft, support pole puller with adequate padding and cribbing.
RECOMMENDED PLACEMENT OF POLE PULLER
2. Place the pole puller on the side of the pole either toward or away from the boom, so the force exerted
does not result in a side pull on the Digger Derrick.
To Next Page
