Terex Digger Derrick User Manual

DIGGER DERRICK
1-30
463280 - 9/14 Terex South Dakota, Inc. Digger Derrick

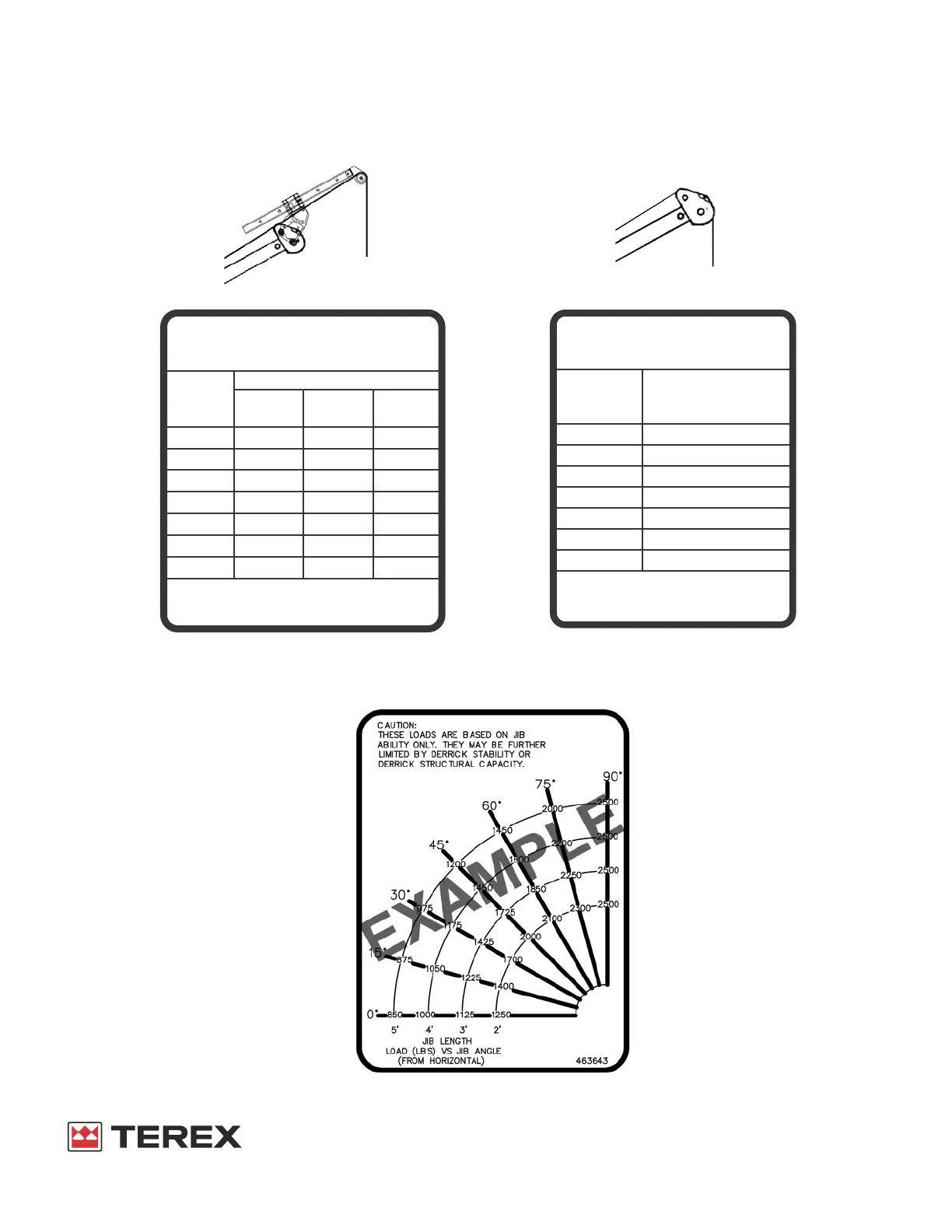

OPERATION GUIDELINES
JIB LOAD CHART
LOAD CHART UPPER CONTROL WINCH
CAPACITY WITH JIB ASSEMBLY
LOAD CHART UPPER CONTROL WINCH
CAPACITY WITHOUT JIB ASSEMBLY
JIB EXT JIB EXT JIB EXT
0 FT 2 FT 4 FT
80º 2700 2700 1850
70º 2700 2700 1750
60º 2700 2700 1700
45º 2150 2000 1200
30º 1420 1340 1000
15º 1160 1110 900
0º 710 670 640
E04G-XXXX-1
SN XXXXXXXXXX
WINCH CAPACITIES IN LBS
BOOM
ANGLE
UPPER CONTROL
WINCH CAPACITIES
TEREX SOUTH DAKOTA
EXAMPLE
80º
70º
60º
45º
30º
15º
0º
E04G-XXXX-1
SN XXXXXXXXXX
710
660
2700
2580
1370
900
UPPER CONTROL
WINCH CAPACITIES
BOOM
ANGLE
WINCH CAPACITIES
IN LBS
2700
TEREX SOUTH DAKOTA
EXAMPLE
