Terex T25I and T45I Super Quiet Generator 17
Operating Instructions and Parts Manual
June 2006
REV A
OPERATING INSTRUCTIONS (Cont.)
OPERATING THE CASCADE

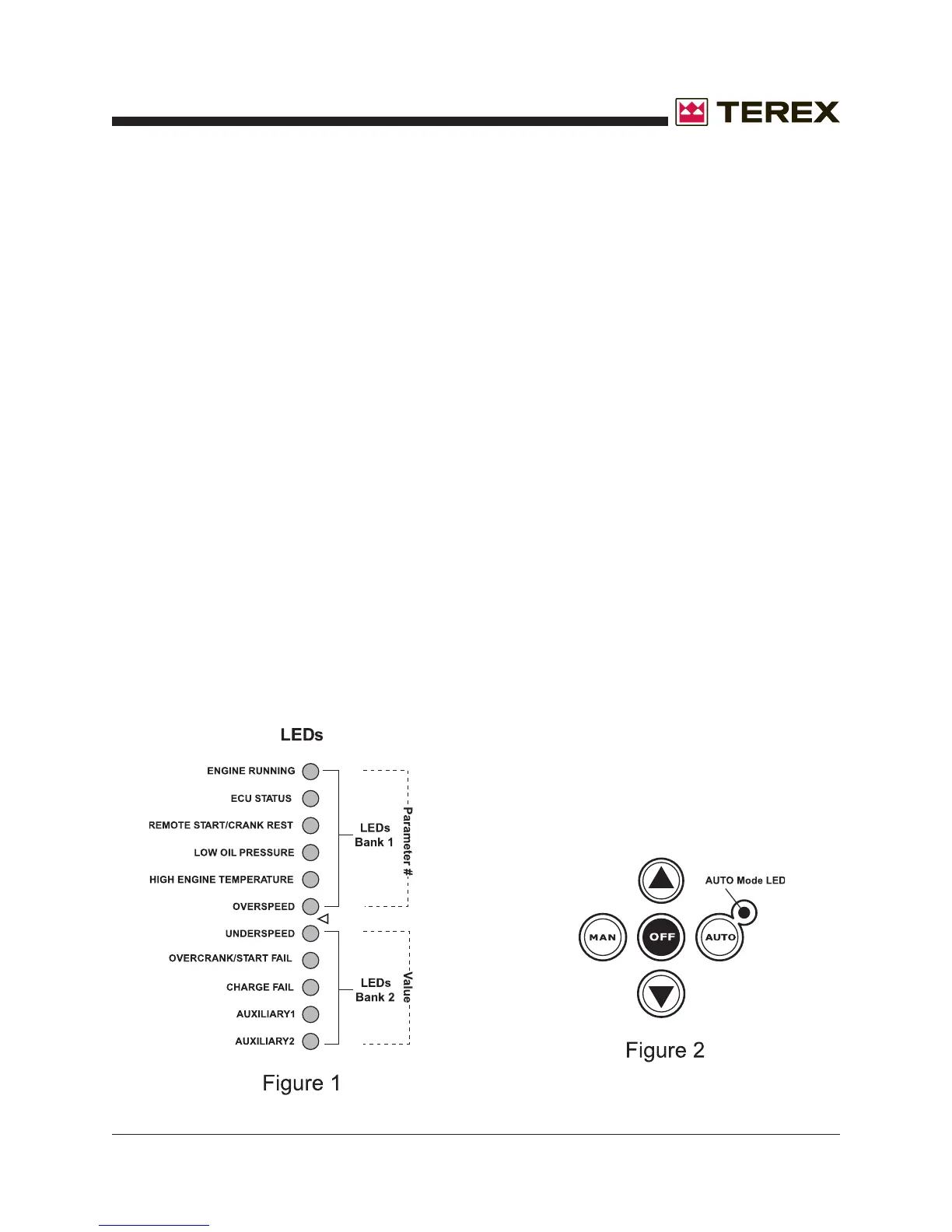

When power is first applied, all LEDs will flash
indicating a Lamp Test function. Refer to Fig. 2
below for the following procedures.
• To manually start the engine, press the “MAN”
(Manual) button. The controller will initiate a
normal start sequence.
• To manually stop the engine (or turn off the
controller) press the “OFF” button.
• To place the controller in automatic mode,
press the button labeled “AUTO”. The LED
next to the “AUTO” button should come on to
indicate that the controller is waiting for the
remote start input to become active to initiate a
start sequence.
• To reset the controller, press the “OFF” button.
Then correct the cause of the shutdown. This
will clear all faults except when the aux inputs
are programmed for either shutdown immediate
or warning immediate, or if the engine ECU is
broadcasting a shutdown fault.
In the event of a fault that causes the engine to
shutdown, the cause of the event will be indicated
on one of the 11 status lights on the right hand
side of the controller (See Fig. 1). When the cause
of shutdown is corrected, the controller can
resume normal operation.
without receiving a valid speed signal indicating
that engine speed is above crank disconnect. This
causes the engine to shutdown and lockout.
Charge Fail - If the red LED is on, it indicates that
the battery charging alternator is not charging the
cranking batteries, or that the battery charger fail
output is on.
Aux 1 - If the red LED is on, it indicates that this
custom-configured input is active. On an ECU
(ECM) equipped engine, if this LED is blinking
slowly, it indicates that one or more engine
parameters are near exceeding engine
manufacturer’s setpoints. If the LED is blinking
fast, it indicates that one or more engine param-
eters have exceeded setpoints, the ECU has
issued a fault - and most likely the engine has
shut down.
Aux 2 - If the red LED is on, it indicates that this
custom-configured input is active.
Overspeed & Underspeed - If these two LED’s
are both blinking, the controller has lost its speed
signal.
