Terex TR60 - Page 15

Section 100-0010
3
SM 1570 12-98
SM - 1959
Chassis - Chassis, Hood and Fenders

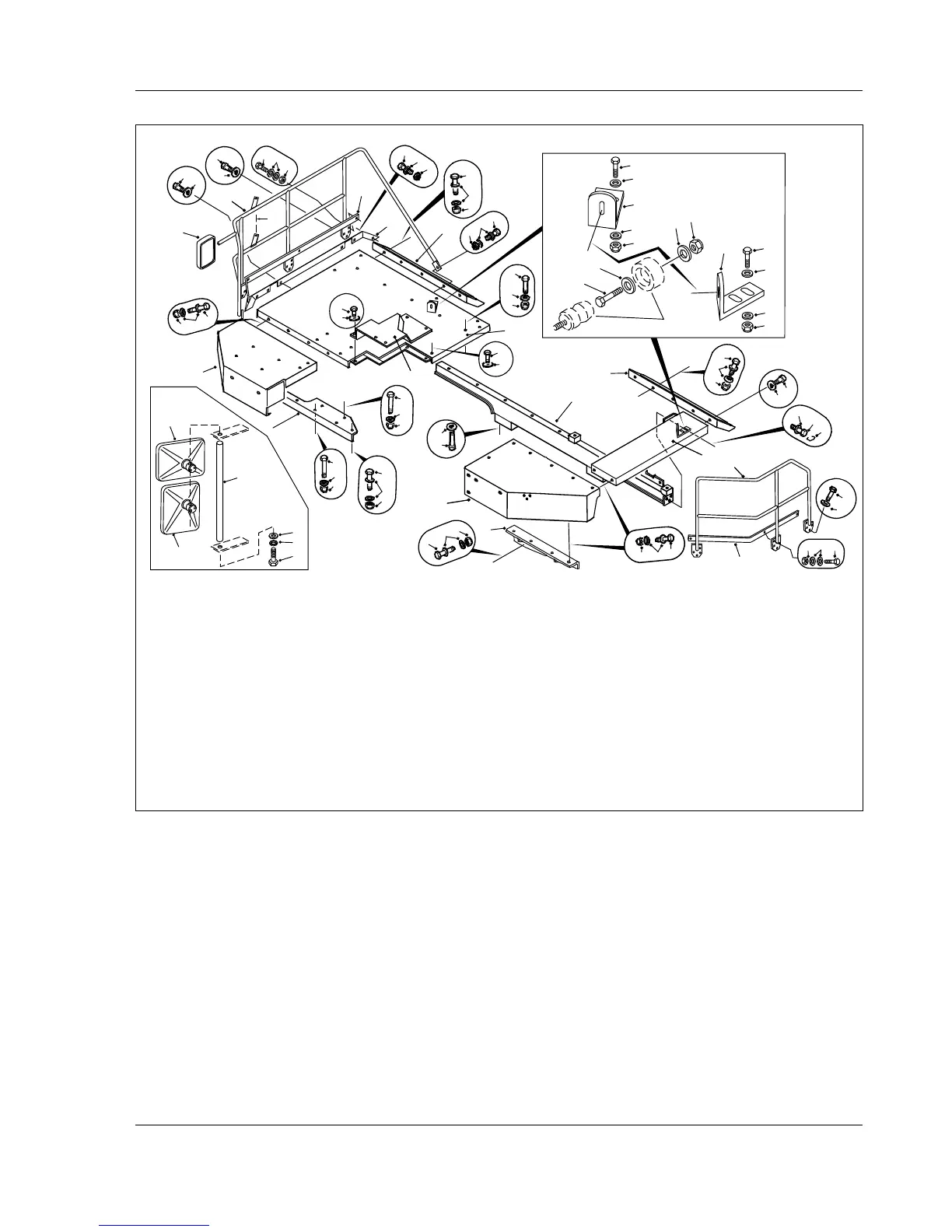

Fig. 3 - Exploded View of Fenders and Mounting
39 - Plate Bent
40 - Plate bent
41 - Bolt
42 - Washer
43 - Nut
44 - Bolt
45 - Washer
46 - Nut
47 - Kick Plate
48 - Kick Plate
49 - Bolt
50 - Hardened Washer
51 - Nut
1 - LH Fender Assembly
2 - LH Platform Assembly
3 - RH Fender Assembly
4 - RH Platform Assembly
5 - Crossmember
6 - Support
7 - Support
8 - Bolt
9 - Lockwire
10 - Hardened Washer
11 - Bolt
12 - Washer
13 - Engine Access Cover
14 - Bolt
15 - Locknut
16 - Hardened Washer
17 - Bolt
18 - Locknut
19 - Hardened Washer
20 - Mirror
21 - LH Handrail
22 - Bolt
23 - Mirror Wide Angle
24 - Nut
25 - Washer
26 - Bolt
27 - Bolt
28 - Bolt
29 - Mudguard
30 - Mudguard
31 - Bolt
32 - Bolt
33 - Fender Extension RH
34 - RH Handrail
35 - Mirror Bracket
36 - Bolt
37 - Lockwasher
38 - Washer
34
13
2
21
22
10
20
35
32
10
23
34
22
10
49
50
18
17
41
42
42
43
41
42
42
43
39
19
18
18
19
28
17
18
19
30
33
48
4
31
19
22
10
18
19
28
3
13
7
27
25
24
17
19
18
26
25
24
12
11
5
1
6
29
A
20
38
37
36
1
14
15
16
18
19
17
2
21
47
22
10
10
8
9
19
22
46
45
40
45
44
18
19
17
51
49
50
51
DETAIL A
SEC.
260-0010
