Terex TR60 - Page 16

Chassis - Chassis, Hood and Fenders
Section 100-0010
4
SM 1570 12-98
SM - 1960
1 - LH Step Assembly
2 - RH Step Assembly
3 - Plate
4 - 'U' Bolt
5 - Step
6 - Bolt
7 - Washer
8 - Bolt
9 - Locknut
10 - Nut
11 - Bolt
12 - Hardened Washer
13 - Nut
14 - Hardened Washer

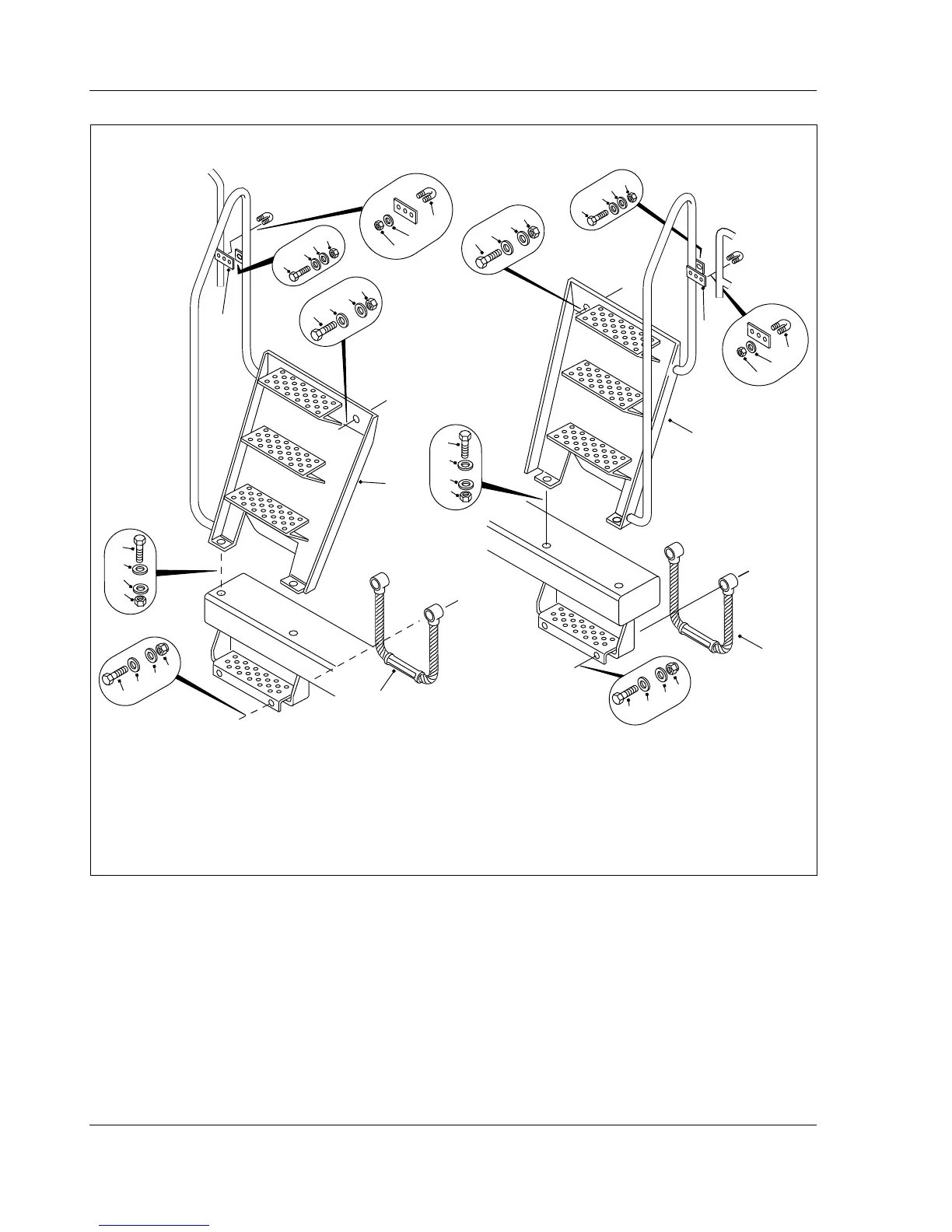

Fig. 4 - Exploded View of Ladders and Handrails
3
3
6
14
14
13
6
14
14
13
11
12
4
14
4
12
10
11
12
12
10
2
5
5
11
12
12
10
11
12
12
10
8
7
7
9
8
7
7
9
1
4
14
4
