7. Suspension Fork
Preload Adjuster
• The suspension can be tuned to the rider’s weight and
preferred riding style through the Preload Adjuster (2).
• This dial sets the preload compression of the
spring to the rider’s weight on the fork.
• Turn the Preload Adjuster knob (2) clockwise to increase the
spring preload and turn it counter-clockwise to reduce it.
Speed Lock Adjuster
• Turn the Speed Lock Adjuster knob (1) toward the
LOCK direction to disable suspension.
• You may desire this adjustment when riding on paved/smooth
surfaces or to improve pedal efficiency during uphill riding.
• Turn the Speed Lock Adjuster knob (1) to the
OPEN direction to enable suspension.
Tire Clearance
Your tire should not touch the fork under any circumstances.
Do not change your tires to a smaller or larger size. Inadequate
tire clearance will result in sudden and unexpected
loss of bicycle control, personal injury or death.
If your HSD is equipped with Suspension Fork, there are two
adjustments available.
3
6
1 2
4
5
7
1 2
1. Speed Lock Adjuster
2. Preload Adjuster
3. Crown
4. Stanchion
5. Slider
6. Thru Axle
7. Thru Axle Cap

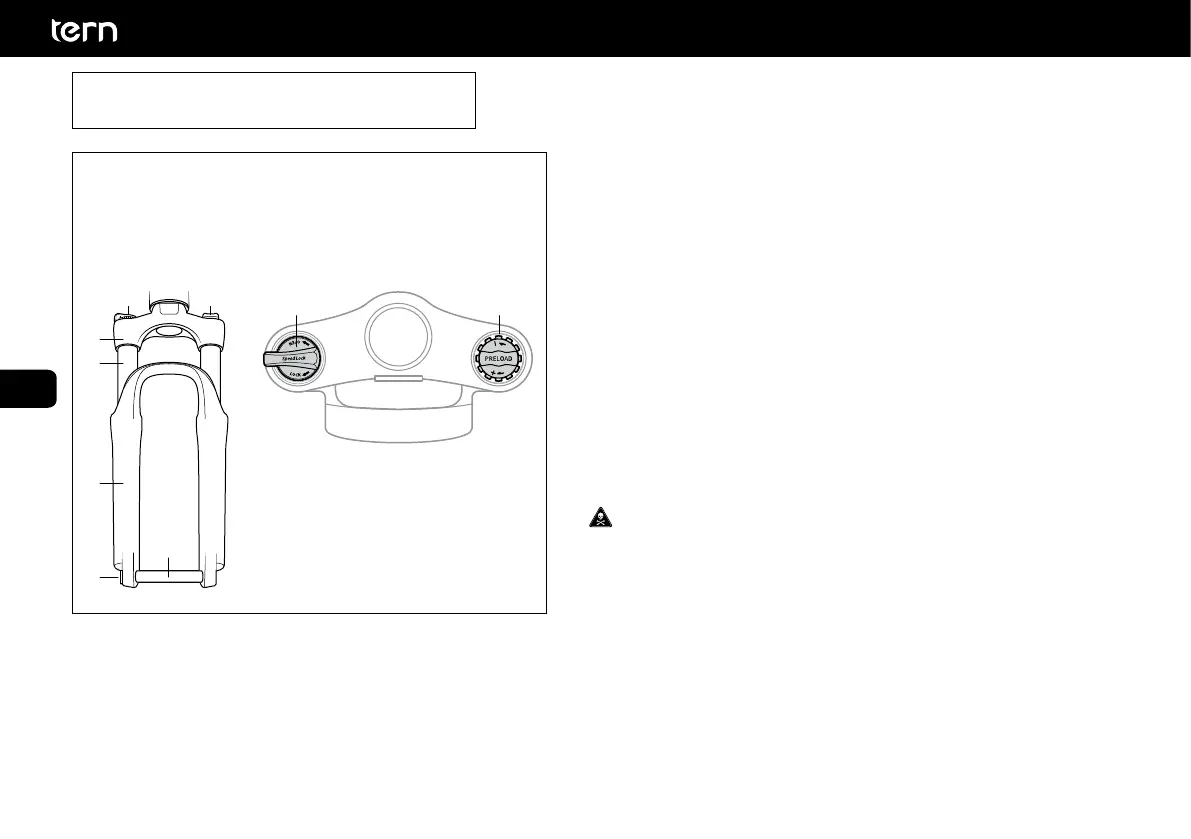

Nomenclature of Parts
