Wheel Removal

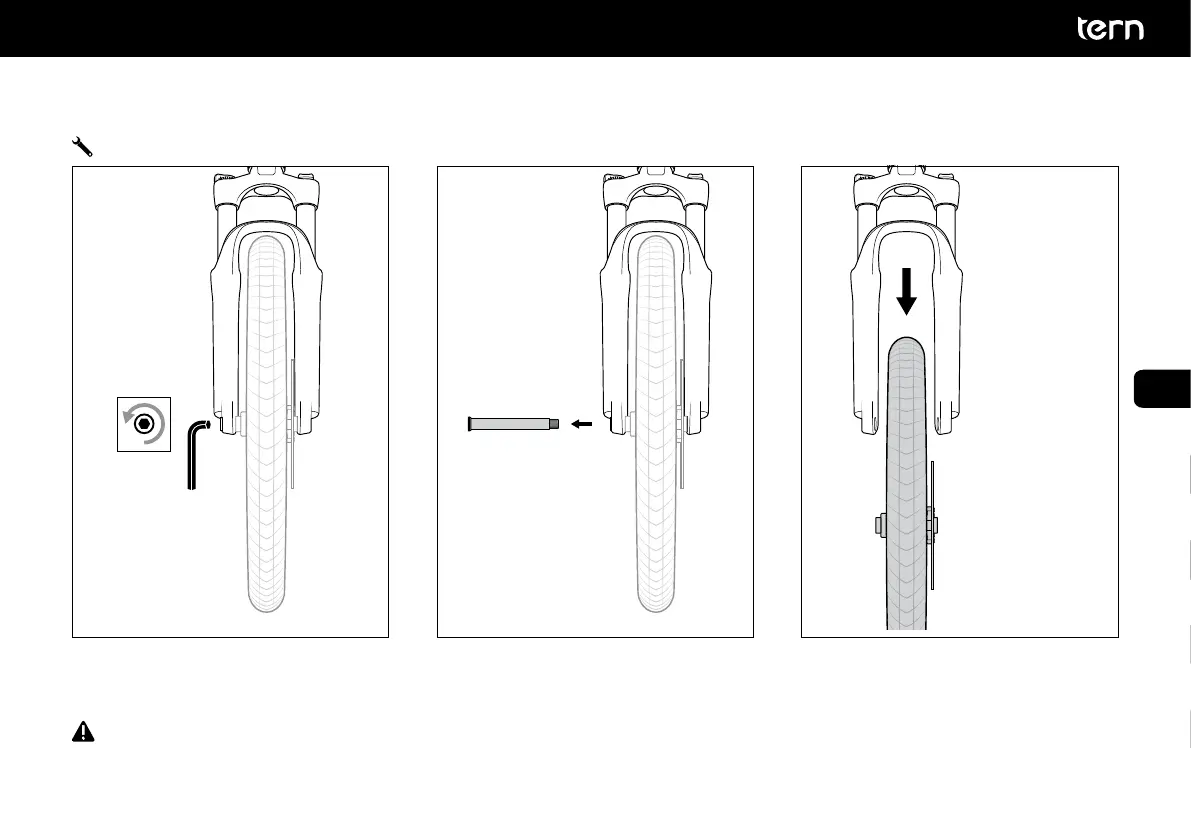

The Tern HSD uses a thru-axle for the front wheel. Unscrew and pull out the thru-axle to release your wheel.
Tool required: M5 Allen Key
1 32
Loosen Thru Axle cap (7) on the drive
side with a 5 mm Allen wrench.
Remove wheel.Remove nut and pull out axle.
Do not press brake lever when the wheel is removed.
