Important
1. Read this Instruction Manual carefully prior to use.
2. No user serviceable parts inside.The equipment is not suitable for use in the presence of a flammable anesthetic mixture with air or oxygen or nitrous
oxide.
3. Do not use aggressive or corrosive products, abrasive powder, steel wool, abrasive sponges or chemical solvents for cleaning.
4. The Compo Scale contains a sensitive weight sensor. Do not place weight above 2500gms on the tray.
5. Use only accessories supplied with the equipment.
Instructions for Use
Contents
1. Intended Use..................................................................................
2. Symbols and Definitions.................................................................
3. Specifications................................................................................
4. Installation Details..........................................................................
5. Technical Description & Operating Procedure..................................
6. Interfacing with TOMEs..................................................................
7. Troubleshooting.............................................................................
8. Precautions...................................................................................
9. Cleaning Instructions.....................................................................
10. Declaration of Conformity .............................................................
11. Contact Address............................................................................
The Compo Scale CS300 is used to measure the weight or volume of blood & blood components. It also converts all these weights to volume measurements at
the touch of a key.
Weighing and weight to volume conversion is possible for 4 components of blood ( RBC, WBC, Platelet, Plasma )and also for whole blood.
1. Intended Use

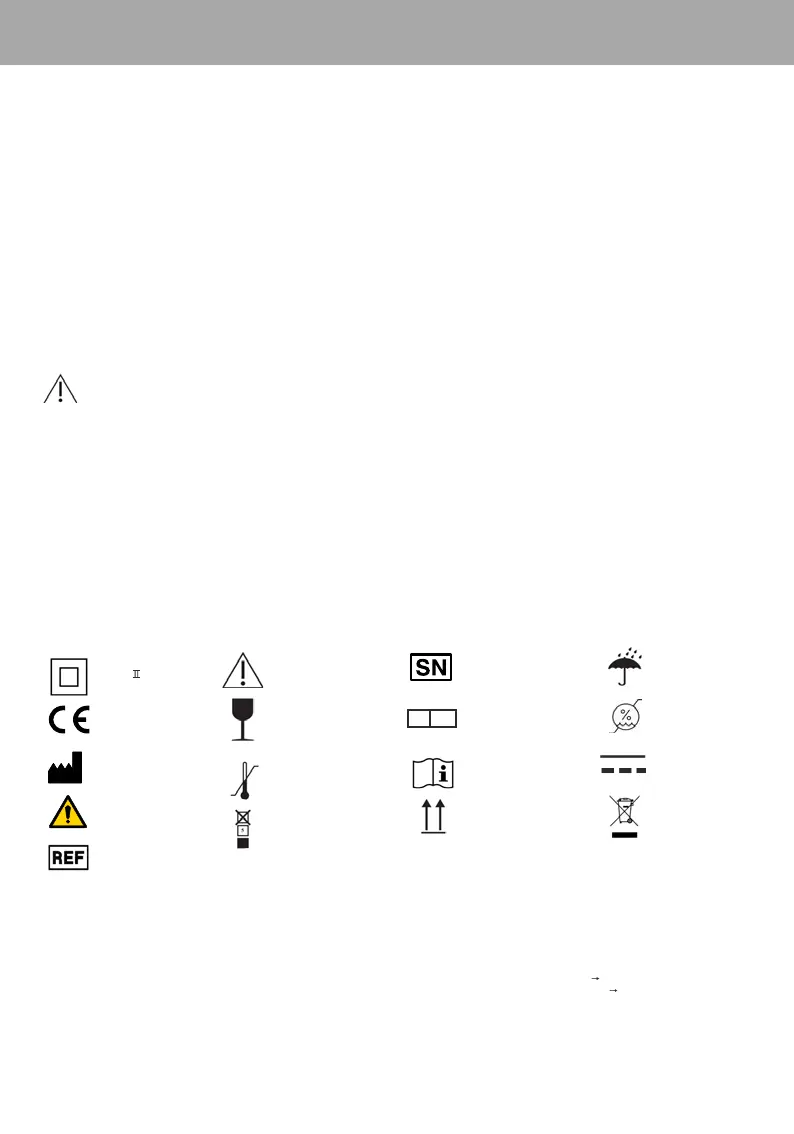

2. Symbols and Definitions
Class Equipment
European Conformities
Manufacturer
General Warning Sign
Caution
Fragile; handle with care
Temperature limit
Stacking limit by number
Serial Number
This way up
EC
REP
EC Representative
Indicates that the user
must read the instructions
for use before application.
Waste Electrical and
Electronic Equipment
Keep dry
Direct Current
3. Specifications
Product code............................
Power Source...........................
Input for Adaptor.......................
CS300 input.............................
Power.......................................
Electrical Safety........................
Working Environment................
Storing and Transportation........
Pollution Degree........................
Installation Category..................
Ingress of water.........................
Weighing Range........................
Resolution.................................
Tolerance..................................
Interfacing with TOMEs.............
Dimensions in mm (WxDxH) ....
Weight......................................
2
2
2
2
3
3
4
4
5
5
5
5
-
+
-
+
2
Category II
IPX1, Protected against dripping water
Up to 2.5Kg
1gm /1 ml
0-500g 2gm/ml
501-2500g 5gm/ml
LAN Connection
185x240x50
Net Weight:2kg, Gross Weight:3.5kg
Cs300
AC-DC Adaptor
100-240VAC, 0.7A, 50-60Hz
12VDC, 1A.
5W (max)
Protection against electrical shock - Class II
o
Temperature: 5 to 40 C
Relative humidity: 10% to 80%
Atm Pressure : 700hPa to 1060hPa
o o
Temperature: -20 C to 40 C
Relative Humidity: 20% to 90%
Atm Pressure: 600hPa to 1060hPa
Relative Humidity
limitation
Product code
