Tescom DS340H - Front View and Connections; UPS Connection Panel Layout

8
1.3 Front view of UPS Connection Panel

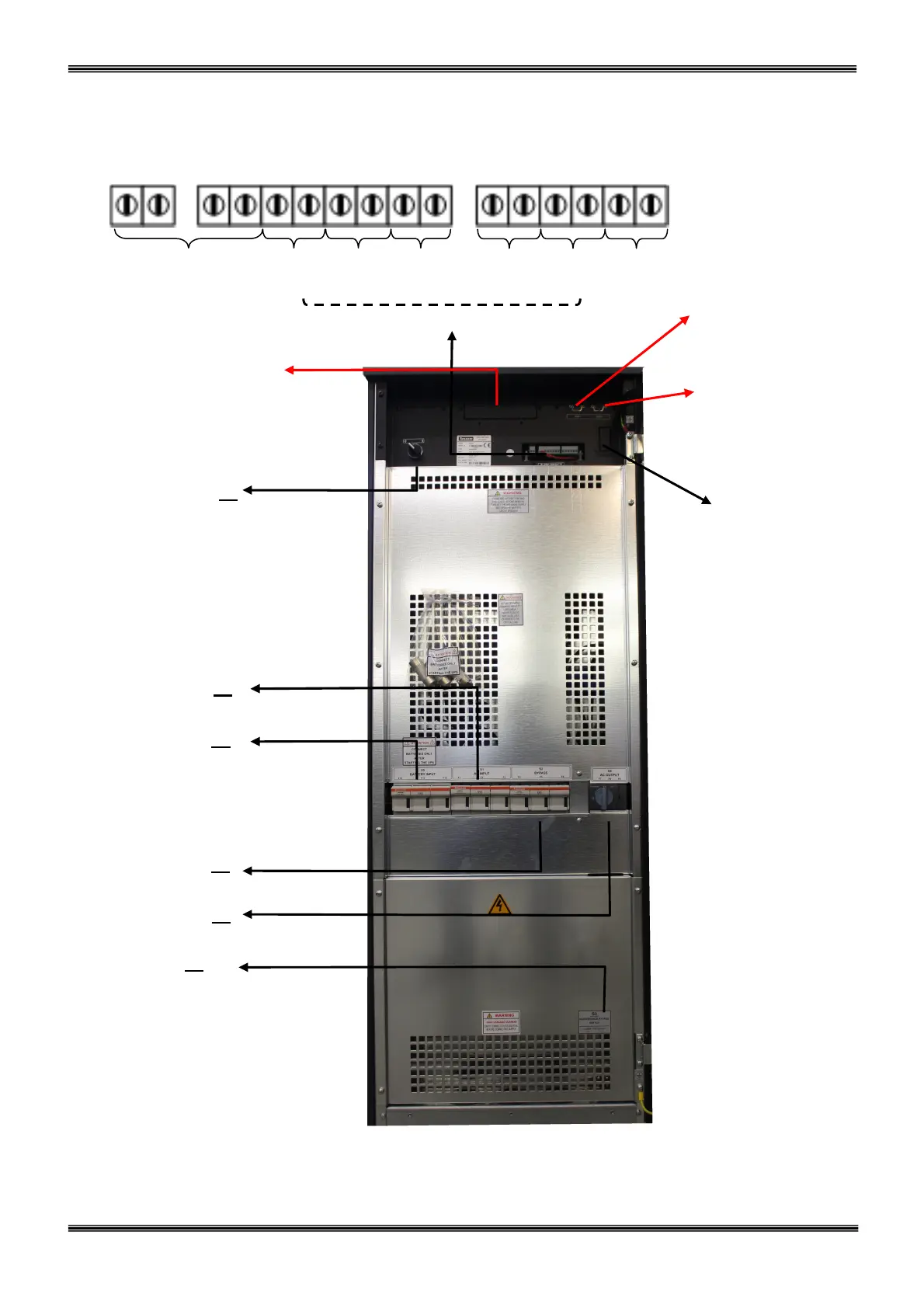

Figure 1.3 a 40 - 60 kVA switches, fuses and interface connections
COM1 - RS232
Communation Socket
(DB9 female)
Relay Output contacts
Batt. circuit
breaker
output
and input
Generator
input
Temperature
sensor
Relay
2
S7
On/off
switch
S5
(Batt. input, F10-F11-F12)
S1
(AC input, F1-F2-F3)
S3
(Maintenance BY-PASS)
S2
(By-Pass, F4-F5-F6)
S4
(AC output, F7-F8-F9)
Relay
3
SNMP
(Optional)
Emergency
stop
Relay
4
COM2 - RS232
Communation Socket
(DB9 female)
PARALLEL PORT
(Optional)
