AIRBAGS

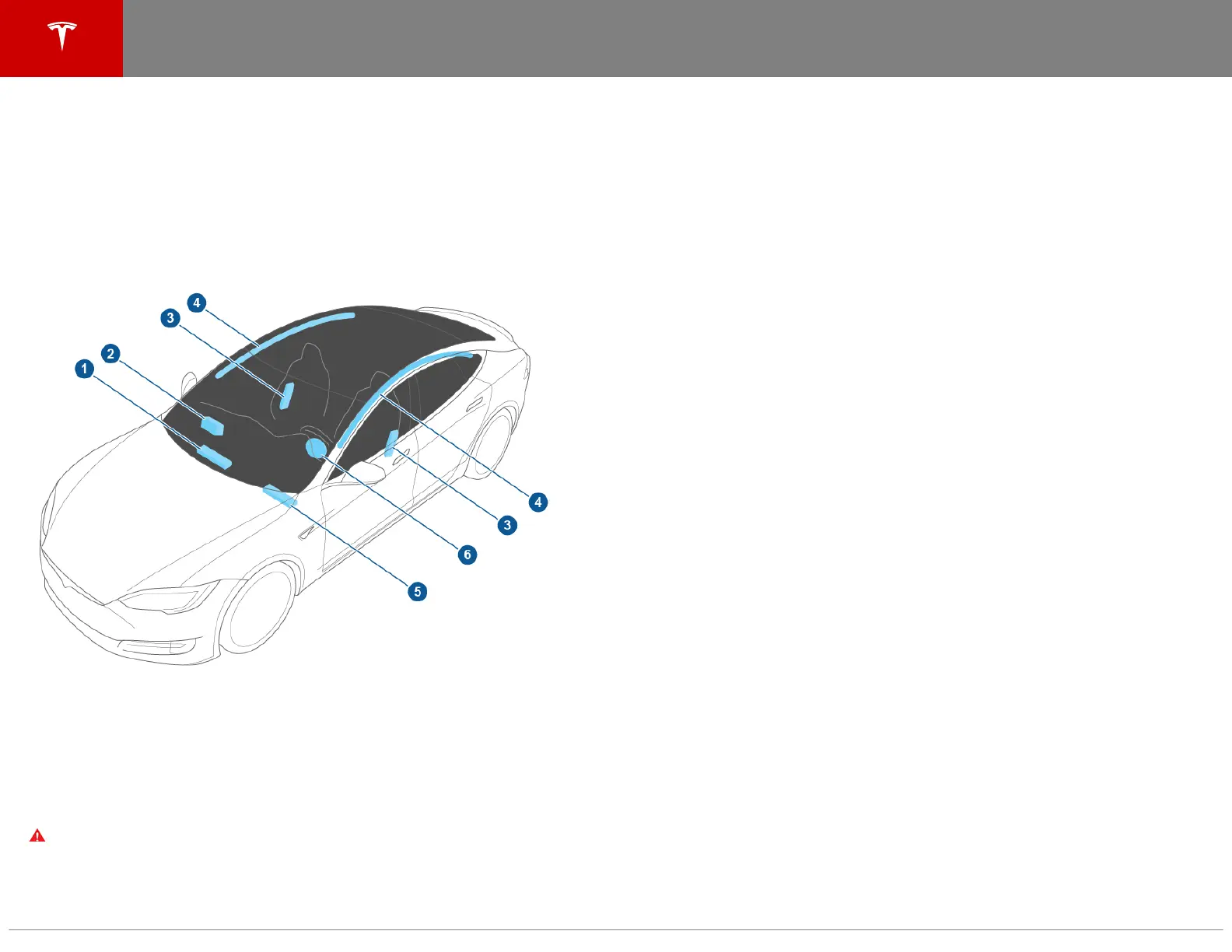

Model S is equipped with 6 airbags (8 in North America). Airbags are located in the approximate areas shown. Airbag warning
information is printed on the sun visors.
NOTE: Model S is designed to deactivate high voltage in all components and cables outside of the high voltage battery when an airbag
is deployed.
NOTE: Left Hand Drive, North American vehicle shown. On Right Hand Drive vehicles, the passenger and driver airbag locations are
reversed.
1.
Passenger knee airbag (North America only)
2. Passenger front airbag
3. Seat-mounted side airbags
4. Curtain airbags
5. Driver's knee airbag (North America only)
6. Driver's front airbag
Warning: The SRS control unit has a backup power supply with a discharge time of approximately ten seconds. Do not touch the
SRS control unit within 10 seconds of an airbag or pre-tensioner deployment.
