Tesla Model S 2019 - High Voltage Components

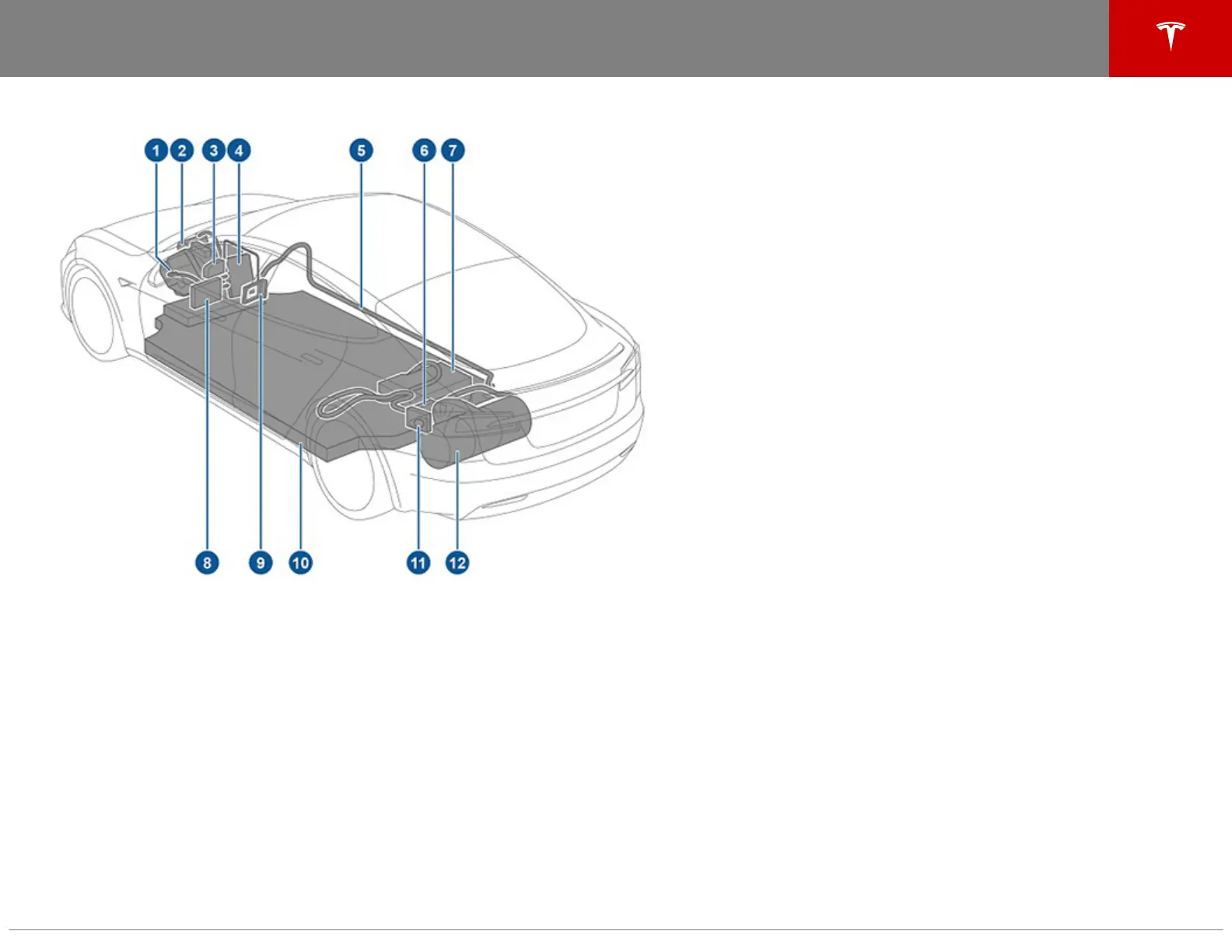

HIGH VOLTAGE COMPONENTS
1. Front drive unit (if equipped)
2. A/C compressor
3. Battery coolant heater
4. Front junction box
5. High voltage cabling
6. Rapid splitter
7. Charger
8. DC-DC converter
9. Cabin heater
10.High voltage battery
11. Charge port
12.Rear drive unit
HIGH VOLTAGE COMPONENTS
Electric Vehicle Components 5
