Tesla Model S 2019 - High Voltage Cables

HIGH VOLTAGE CABLES

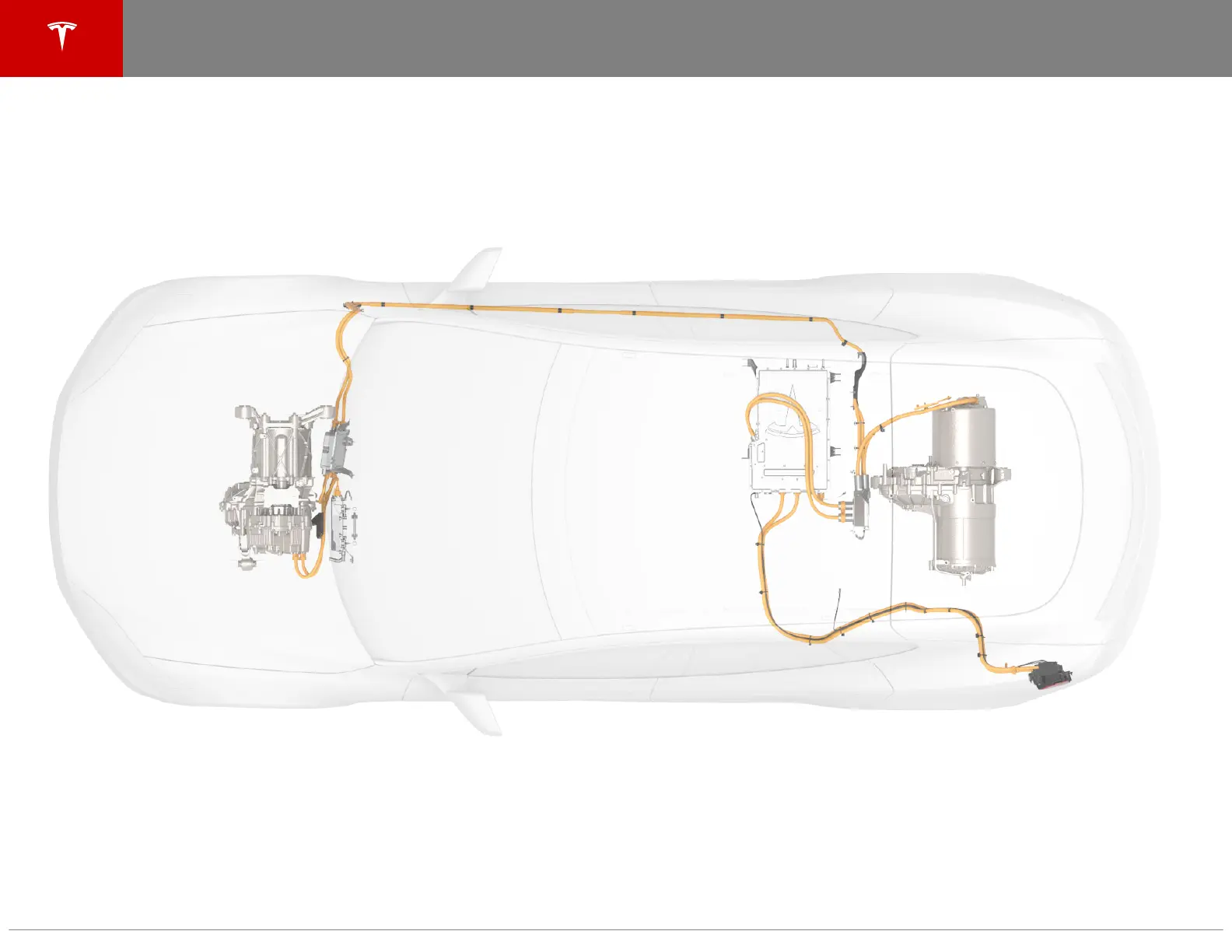

High voltage cables are shown in orange.
NOTE: The following image shows a Dual Motor vehicle. Vehicles without a front drive unit are similar. The motors depicted in this
image may not exactly match the vehicle you are working on.
HIGH VOLTAGE CABLES
8
