11/14

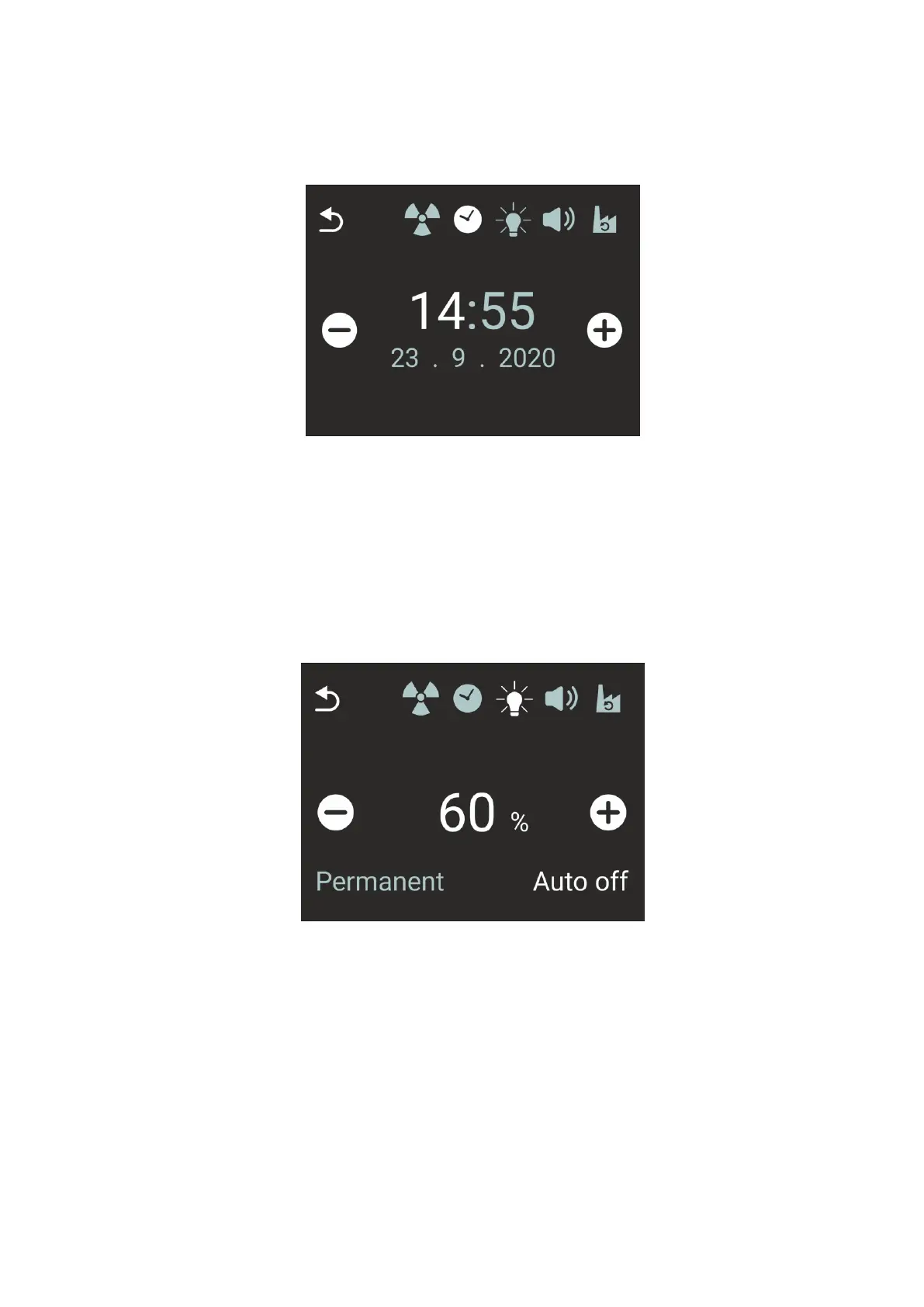

Time configuration screen
When setting time, press to select the value to be set (year, month, day, hour, minute) and then
press + or - to set the current value.
Fig. 5 – Time configuration screen
Display configuration screen
When setting the intensity of the display backlight, use the + and – buttons to select the intensity
in 5 % increments (the default value is around 70 %).
You can also set display light time.
Auto off – the display will only light up for 90 seconds after pressing the top button (TESLA logo) on the
product.
Permanent – the display is always lit when the product is connected to a constant power source – constant
power mode (see chapter "Operation manual – Mode of operation"). In the “portable mode” (see chapter
“Operation manual – Mode of operation”), this button is inactive.
Fig. 6 – Display configuration screen
