Step 9: Mount Indoor Unit
Note:
Make sure the drainage pipe is at the bottom.
Avoid crossing and bending of parts.
2. Using the insulating tape wrap the fresh air pipes, the refrigerant pipes, connecting wires and drainage hose
together tightly.
1. Slowly pass the refrigerant pipes, connecting wires and drainage hose wrapped bundle through the wall hole.
2. Hook the top of indoor unit on the mounting plate.
3. Apply slight pressure to the left and right sides of the indoor unit, make sure the indoor unit is hooked firmly.
4. Push down the bottom of indoor unit to let the snaps onto the hooks of the mounting plate, and make sure it
is hooked firmly.
Mode 3

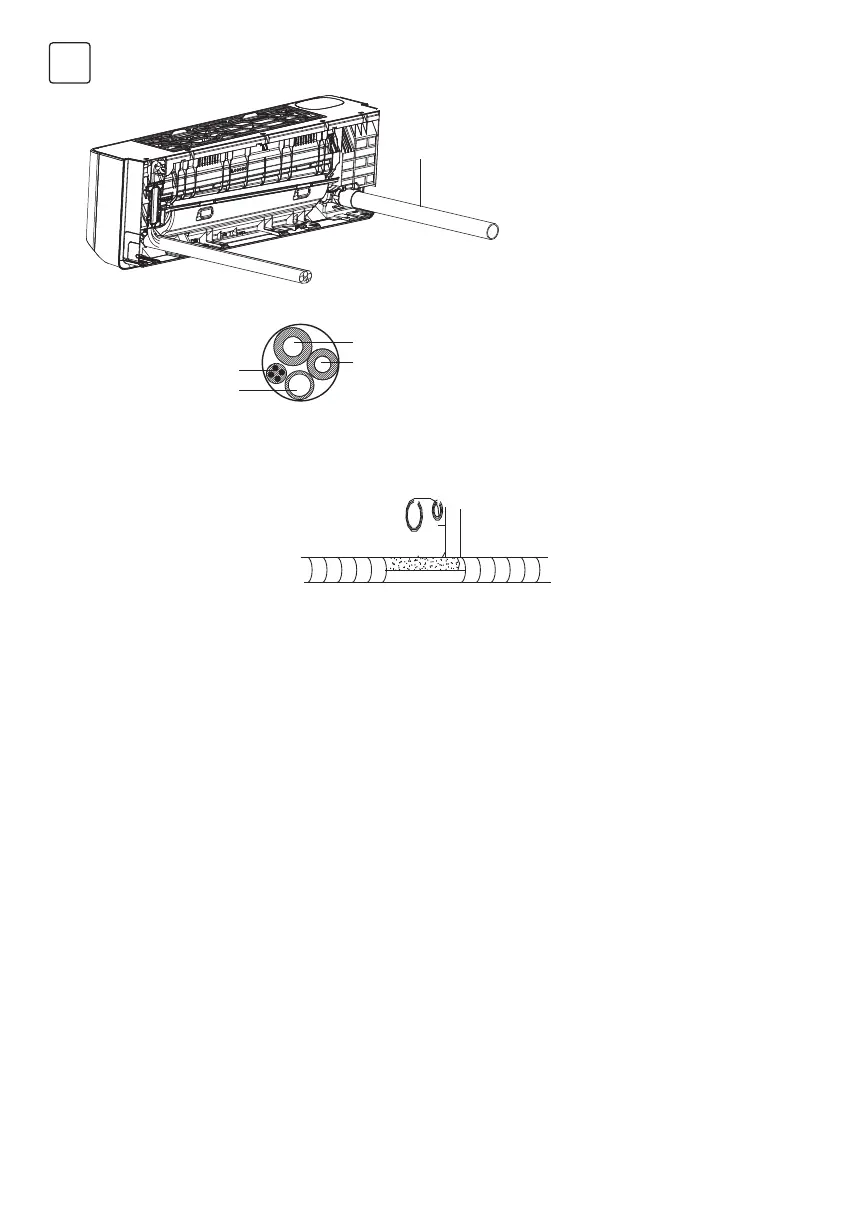

Fresh air pipe
Refrigerant pipe
Connecting wiring
Drainage hose
Refrigerant pipe
