Chapter 2 – Installation
TestEquity 1007H Temperature Chamber Page 2-7

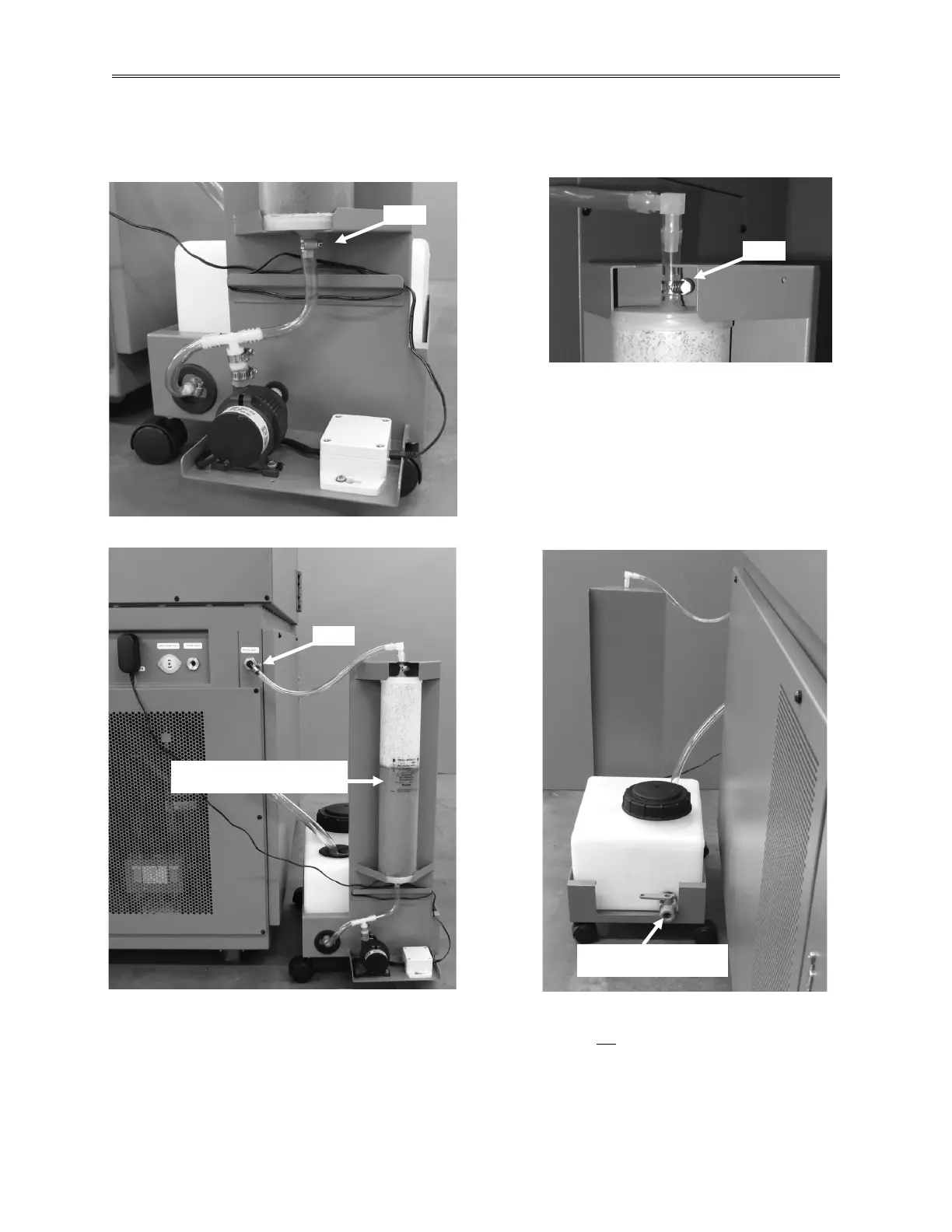

Water Recirculation System Assembly, Model W100
Use the supplied clamp on each end of filter and the
water inlet fitting to prevent leaking.
-tighten the clamp screws.
Finger-tighten the Water Supply and Drain connections to chamber. Plug the pump power supply into
receptacle on the back of the chamber. The drain tube from the chamber must not be submerged in the water.
Bottom of Filter Top of Filter
Reservoir drain. Drain water
when it appears dirty.
Replace filter when this area turns
brown.
