7.3. Volume flow measurement setup

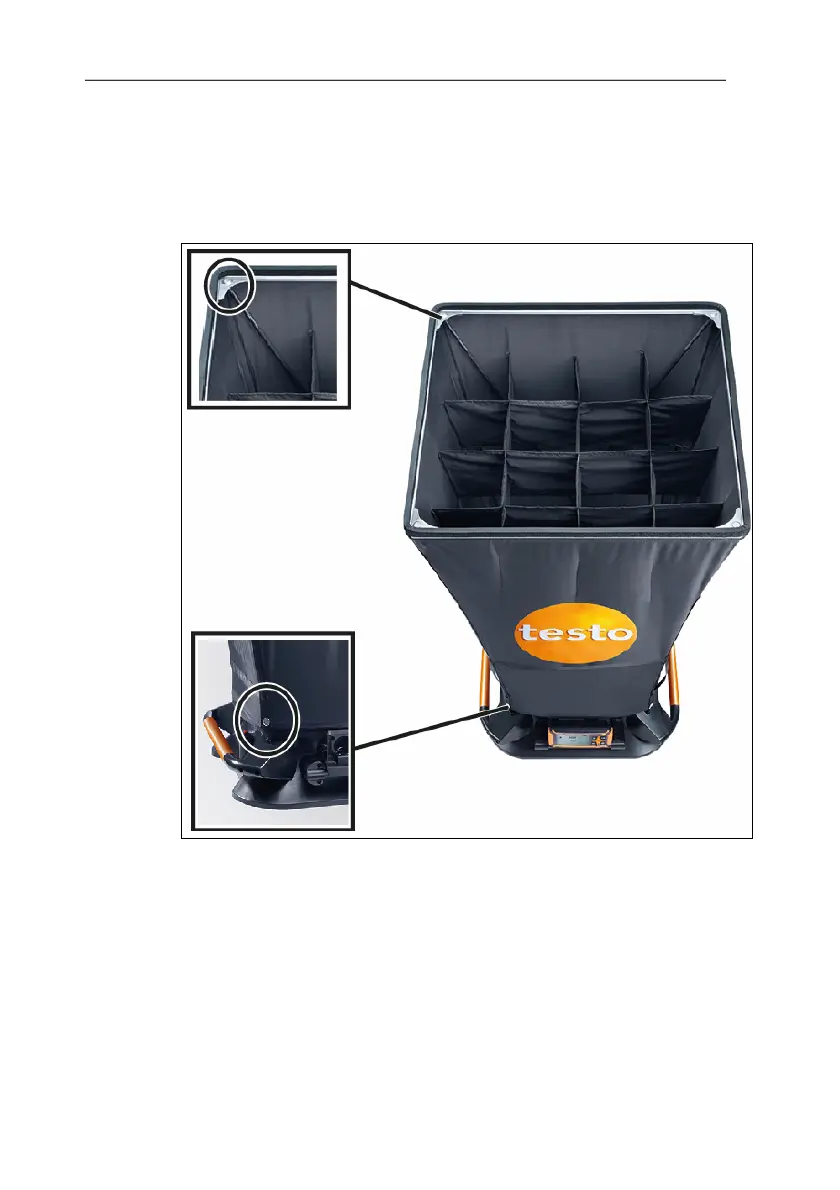

Standard hood
(610x610 mm, scope of delivery; 360x360 mm, accessories)
1. Pull the lower end of the hood over the measurement base.
2. Attach the hood at two corners using the snap fasteners.
3. Tighten the closure.
4. Push the support rods through the hood, along the markings
and into the funnel in the measurement base.
5. Push the support rods on the top of the hood into the brackets.
- The hood is installed.
