TESTO 510 User Manual

Specifications 13

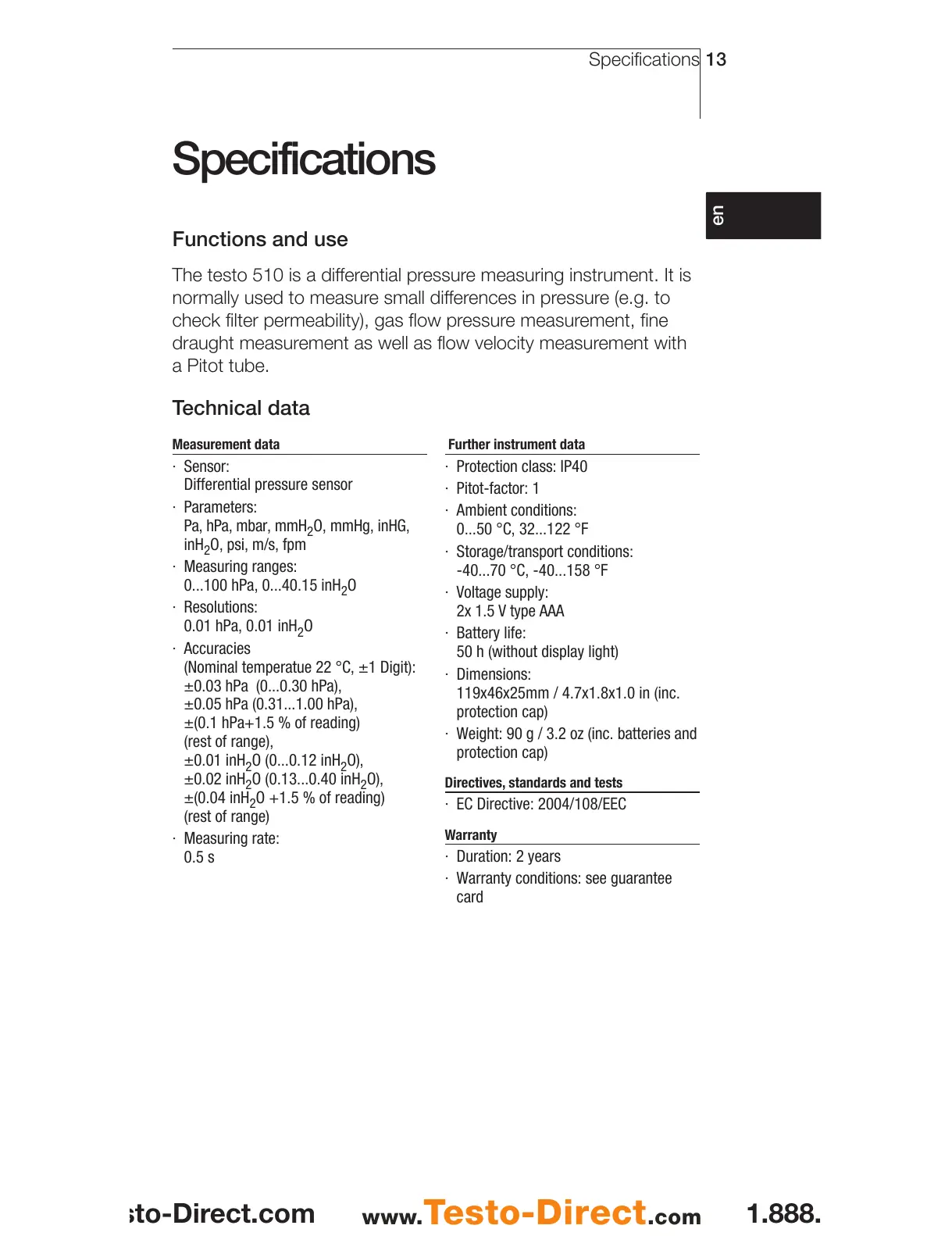

Specifications
Functions and use
The testo 510 is a differential pressure measuring instrument. It is
normally used to measure small differences in pressure (e.g. to
check filter permeability), gas flow pressure measurement, fine
draught measurement as well as flow velocity measurement with
a Pitot tube.
Technical data
Measurement data
· Sensor:
Differential pressure sensor
· Parameters:
Pa, hPa, mbar, mmH
2
O, mmHg, inHG,
inH
2
O, psi, m/s, fpm
· Measuring ranges:
0...100 hPa, 0...40.15 inH
2
O
· Resolutions:
0.01 hPa, 0.01 inH
2
O
· Accuracies
(Nominal temperatue 22 °C, ±1 Digit):
±0.03 hPa (0...0.30 hPa),
±0.05 hPa (0.31...1.00 hPa),
±(0.1 hPa+1.5 % of reading)
(rest of range),
±0.01 inH
2
O (0...0.12 inH
2
O),
±0.02 inH
2
O (0.13...0.40 inH
2
O),
±(0.04 inH
2
O +1.5 % of reading)
(rest of range)
· Measuring rate:
0.5 s
Further instrument data
· Protection class: IP40
· Pitot-factor: 1
· Ambient conditions:
0...50 °C, 32...122 °F
· Storage/transport conditions:
-40...70 °C, -40...158 °F
· Voltage supply:
2x 1.5 V type AAA
· Battery life:
50 h (without display light)
· Dimensions:
119x46x25mm / 4.7x1.8x1.0 in (inc.
protection cap)
· Weight: 90 g / 3.2 oz (inc. batteries and
protection cap)
Directives, standards and tests
· EC Directive: 2004/108/EEC
Warranty
· Duration: 2 years
· Warranty conditions: see guarantee
card
de
enfresitptsvnl????
1.888.610.7664 info@Testo-Direct.com
www.Testo-Direct.com
All manuals and user guides at all-guides.com

TESTO 510 Specifications

General

Measurement Range	0 to 100 hPa
Resolution	0.01 hPa
Dimensions	119 x 46 x 25 mm
Storage Temperature	-20 to +70 °C
Protection Class	IP40
Battery Type	2 x AAA batteries
Measuring Units	hPa, mbar, inH2O, mmHg, psi
Accuracy	±0.03 hPa (0 to 0.30 hPa) ±0.05 hPa (0.31 to 1.00 hPa) ±(0.1 hPa + 1.5 % of mv) (1.01 to 100 hPa)
Weight	90 g
