Tevion 47743 - Location of the Controls

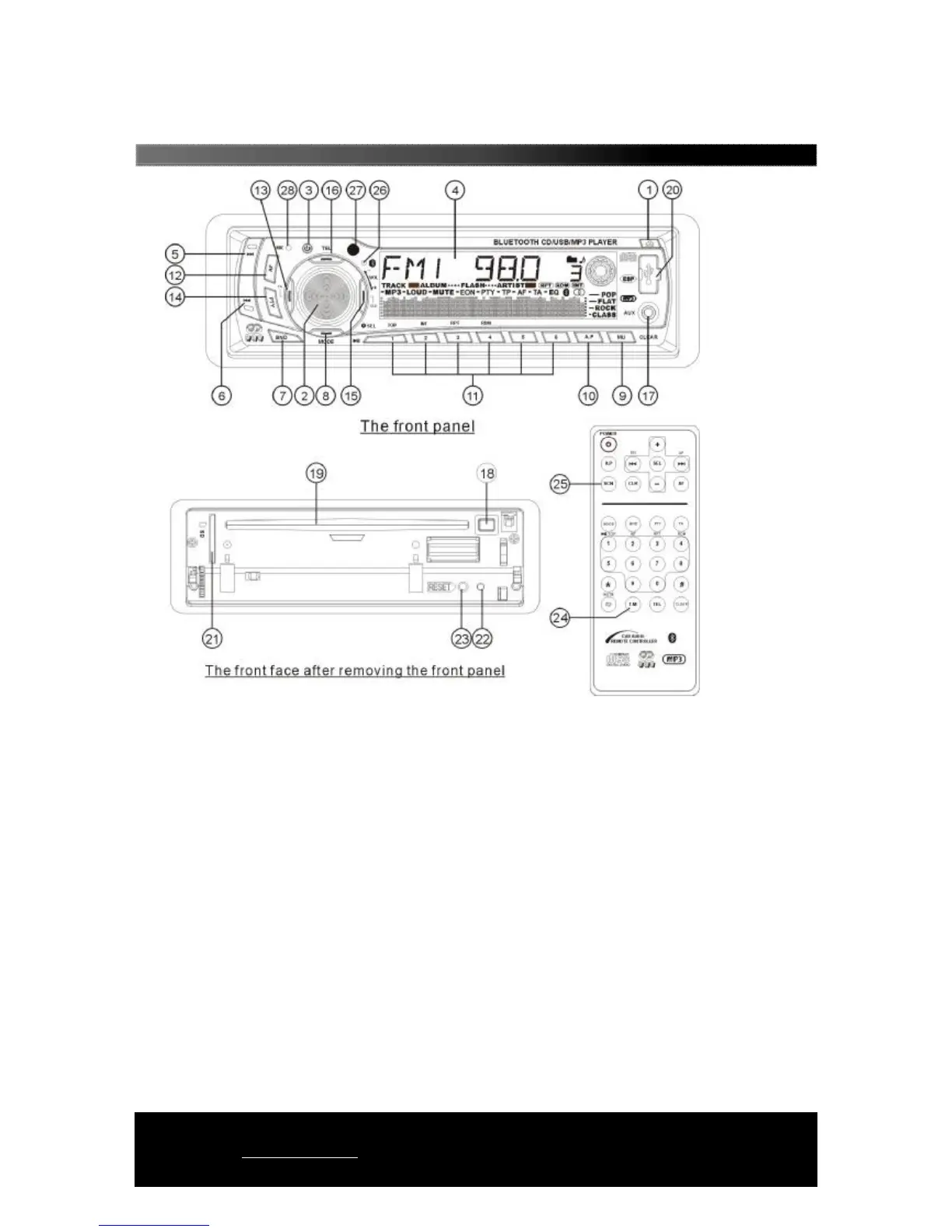

Location Of The Controls
Helpline No. UK/Northern Ireland 01270 508538 Rep.Ireland 1800 995 036
Web Support www.quesh.co.uk
Model No: 47743
10
15. CLK button
16. TEL button
17. AUX INPUT Jack
18. EJECT button
19. CD slot
20. USB port
21. SD slot
22. Anti-theft LED indicator
23. RESET button
24. T-M button
25. SCN button
26. Bluetooth LED indicator
27. Infrared Remote Control Sensor
28. Built-in microphone
1. OPEN button
2. SEL button and VOL dial
3. POWER button
4. LCD
5&6. >>| and |<< button
7. BAND button
8. MODE button
9. MUTE button
10. AP button
11. TOP/PLAY/PAUSE, INT, RPT,
RDM and 1-6 Number buttons
12. AF button
13. TA button
14. PTY button
