945423-9701
ERASE
E""'SE
I"'ELO
INPUT
eo
e.
PRINT
f
g.
-
HOME
e.
'NS
•
CHAR
•
0
..
g.
REPEAT
-
e.
OE"
CHAR
..

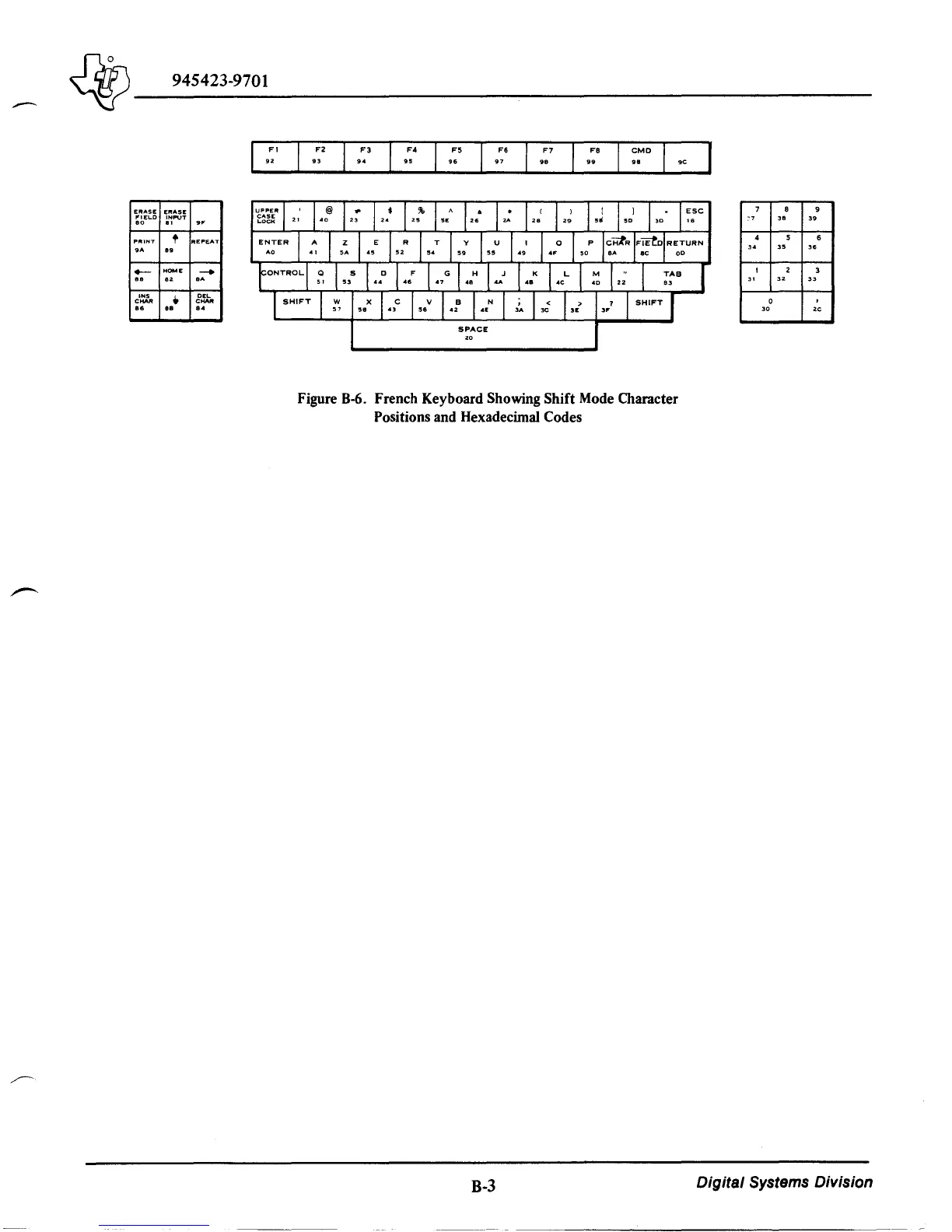

Figure
8-6.
French
Keyboard
Showing
Shift
Mode
Character
Positions
and
Hexadecimal
Codes
B-3
,e
,.
"
'C
Digital
Systems
Division
68
70
Table of Contents
Table of Contents
5
General
9
Section I. General Description
9
System Terminology
10
Communications Register Unit (CRU)
10
Model 911 VDT Standard Configuration
11
Major Terminal System Components
12
Model 911 VDT Controller Block Diagram
12
VDT Controller
12
Display Unit
13
CRT Monitor
13
Power Supply
13
United States Standard Keyboard Arrangement
14
Control Logic
14
Keyboard
14
Interconnection Cable
14
Purpose of Equipment
15
United States Model 911 VDT Displayed Character Set, Including Graphics Symbols
17
Model 911 VDT International Displayed Characters
18
Terminal Physical Dimensions
19
General
19
Site Requirements
19
Installation
19
Unpacking/Packing
21
Model 911 Video Display and Keyboard Shipping Container
22
Keyboard Shipping Container
23
Remote Installation Cable Routing
24
Terminal Installation
24
Model 911 VDT Kit Cabling Configurations
26
Connection to Computer
27
Location of Controller Circuit Board
27
Installing the Controller
27
Typical Model 911 VDT Controller Board
29
Computerpoweron
30
Terminal Checkout
30
General
33
Terminal Controller Interface
33
Screen Initialization
33
Section III. Programming
33
Displayed Character Positions
37
Keyboard Codes
38
Cursor
44
Sample Routines
44
Keyboard Showing Lowercase Mode Character Positions and Hexadecimal Codes
46
Keyboard Showing Uppercase Mode Character Positions and Hexadecimal Codes
46
Keyboard Showing Control Character Positions and Hexadecimal Codes
46
Keyboard Showing Shift Mode Character Positions and Hexadecimal Codes
47
Echo Character to Screen
48
Read Character from Screen
49
Read Cursor Position
49
Restore Cursor Position
49
Move Cursor
49
Roll up Screen
51
Section IV. Operation
53
General
53
Keyboard
53
United States Model 911 Keyboard
54
Display Unit Control Panel
55
Data Indicator Locations
55
Display Unit Controls and Indicators
56
Data Indicators Sample Pattern
56
Operator Preventive Maintenance
57
Appendix
59
A United Kingdom Model 911 Vdr Keyboard Arrangement, Hexadecimal Codes, Mode Character Positions, ASCII, and Special Character Set
59
B French Model 911 Vdr Keyboard Arrangement, Hexadecimal Codes, Mode Character Positions, ASCII, and Special Character Set
65
C German Model 911 Vdr Keyboard Arrangement, Hexadecimal Codes, Mode Character Positions, ASCII, and Special Character Set
71
D Swedish/Finnish Model911 Vdr Keyboard Arrangement, Hexadecimal Codes, Mode Character Positions, ASCII, and Special Character Set
77
Norwegian/Danish Keyboard Arrangement, Hexadecimal Codes, Mode Character Positions, ASCII, and Special Character Set
83
Japanese Katakana Keyboard Arrangement, Hexadecimal Codes, Mode Character Positions, Modified ASCII (JIS-S), Special Character Set, and Additional Eight-Bit Displayed Character Set
91
Arabic Model 911 VDT Keyboard Arrangement, Device Service Routine Interfaces, and Keyboard Codes
97
French Word Processing Model 911 VDT Keyboard Arrangement, Hexadecimal Codes, Mode Character Positions, ASCII, and Special Character Set
107
