User's Guide
SPRUHH9–July 2012
C2000 LED BoosterPack
1 C2000™ LED BoosterPack Overview
1.1 Overview
The LED BoosterPack is an add-on board designed to fit the C2000 LaunchPad and the other 40-pin
based LaunchPads. This BoosterPack provides users with a way to accurately control a series of LED
strings while efficiently controlling the power stages needed to make the LEDs work. This user's guide
discusses the LED BoosterPack kit contents, the board hardware details, and also explains the functions
and locations of jumpers and connectors present on the board. Step-by-step instructions for two demo
examples are also included.

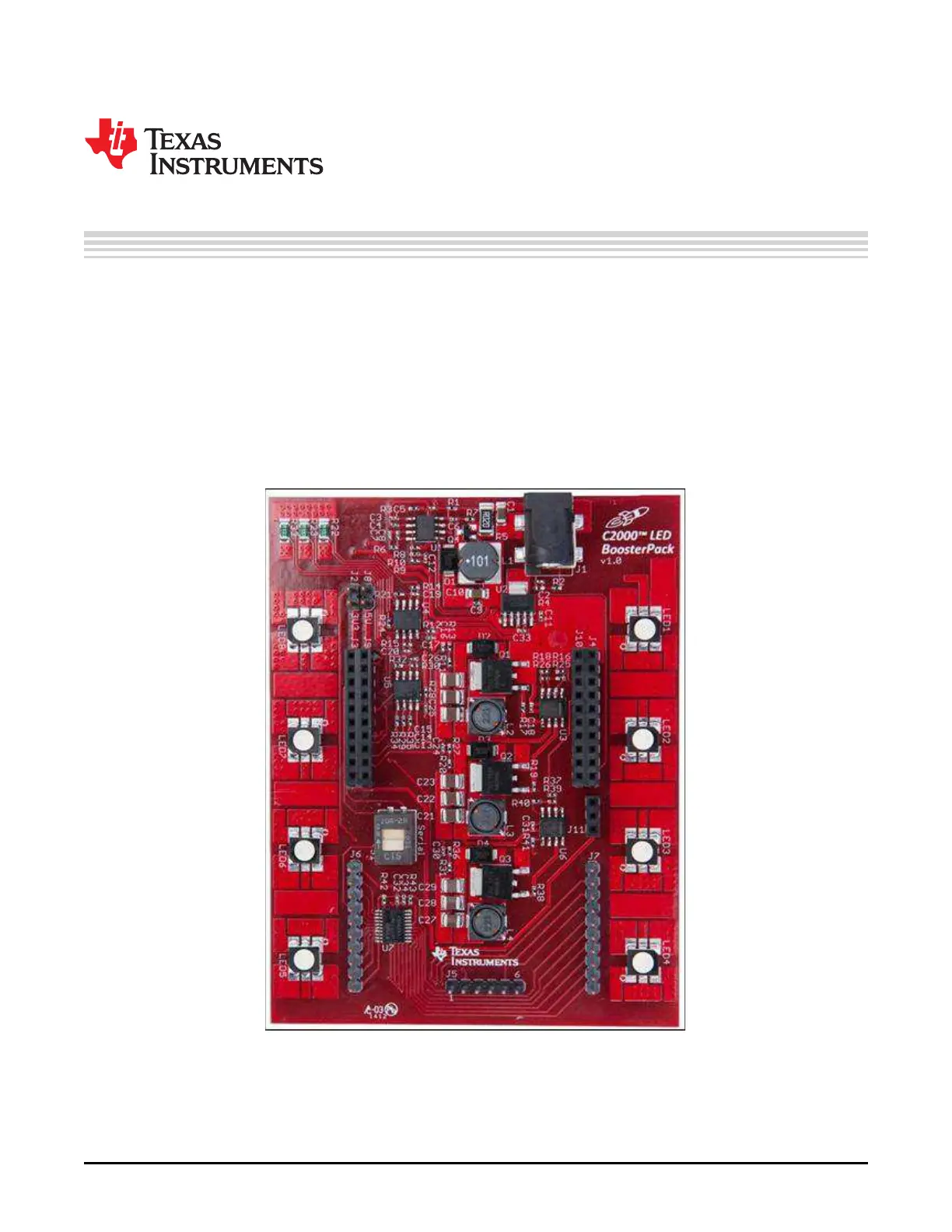

Figure 1. LED BoosterPack (BOOSTXL-C2KLED)
C2000, LaunchPad, controlSUITE, Code Composer Studio are trademarks of Texas Instruments.
Microsoft is a registered trademark of Microsoft Corporation in the United States and/or other countries.
All other trademarks are the property of their respective owners.
4
C2000 LED BoosterPack SPRUHH9–July 2012
Submit Documentation Feedback
Copyright © 2012, Texas Instruments Incorporated
